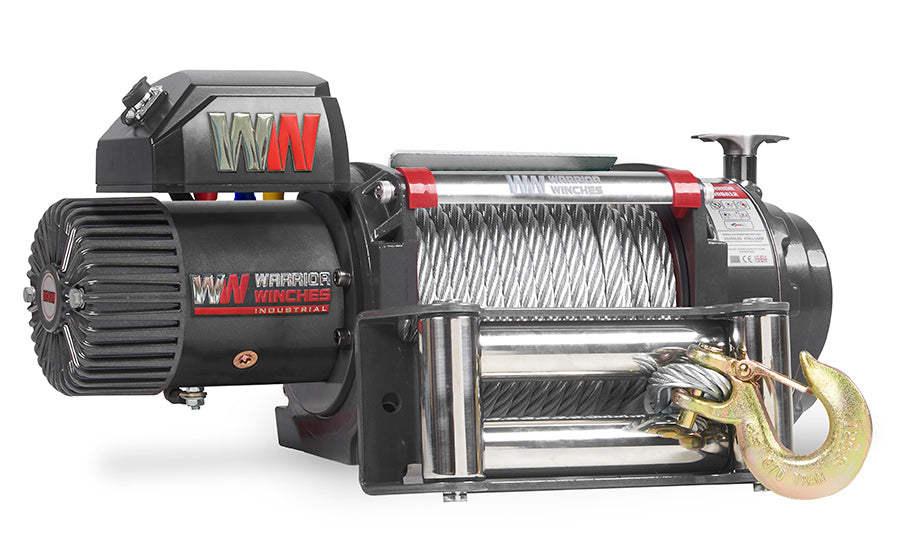

Samurai 17500lb 12v Electric Winch - Industrial

|   2 Questions Answered
SKU: 175SD12-CAD

Voltage: 12v
Rope: Steel Rope
Sale price$1,499.99
In stock (Delivery in 2-7 days)


  • All Brass (no corrosion) Series Wound Motor
  • Double Sealed Motor
  • Sealed Waterproof Contactor
  • Sealed 3 Stage Planetary Gears
  • Contactor Cover for Added Protection

The best lb for lb winch on the market. Outstanding features includes Huge 7.0 hp high quality double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, fully sealed efficient full steel planetary gearing. Stainless steel roller fairleads and fittings as standard.

Rated Line Pull 17500 lbs (7938 kgs)
Motor Type 12V: Input: 5.4kW / 7.2hp Output: 2.9 kW /3.9hp
Gearing 430:1
Clutch Manual
Braking Action Auto in the drum
Drum Size (Dia x L) Ø89mm×217 mm (Ø3.5“×8.5 “)
Cable Material Steel or Synthetic
Cable – Dia x L Ø12mm×26.5m (Ø15/32”×86.9 ‘)
Mounting Pattern 10" x 4.4"
Dimensions 620 mm ×214mm ×282mm (24.4”×8.4”×11.1”)
Net Weight Lbs (Kg) 147.7 (67kg)
Certification CE


Layer of Rope/Cable Line Pull: lbs(kgs)
1 17500 (7938)
2 14000 (6364)
3 12500 (5682
4 10000 (4545)
5 6000 (2728)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
0 19.7 (6.0) 100
6000 (2728) 7.2 (2.2) 220
10000 (4545) 5.6 (1.7) 320
12500 (5682) 4.9 (1.5) 350
14000 (6350) 4.6 (1.4) 380
17500 (7938) 3.0 (0.9) 450
  • Samurai Winch
  • Heavy Duty Stainless Steel Fairlead OR Aluminium Hawse Fairlead

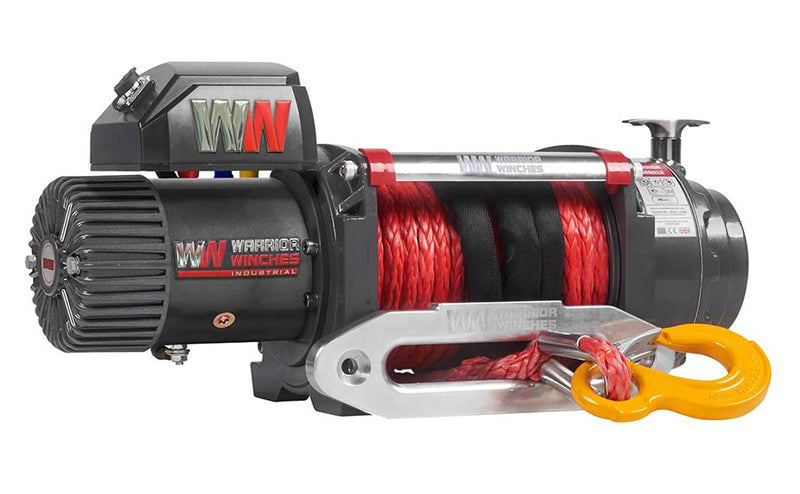

  • Steel Rope OR Synthetic Rope
  • Tensioner (With Steel Rope)
  • Heavy Duty Battery Leads
  • 12.4 FT Wired Remote handset
  • Wireless Remote
  • 3/8 Hook
  • Isolation Switch
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Technical Drawing Download
Brochure Download
Specifications Sheet ( 175SD12-CAD ) Download
Specifications Sheet ( 175AD12-CAD ) Download
Parts list ( 175AD12-CAD ) Download
Parts list ( 175SD12-CAD ) Download
Durability Test Download

Load Test

Brake Test

Limited lifetime with 3 year on electrical

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

BPE Solutions North America (“seller” or BPE Solutions North America) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (3) three years (36 Months) from the original purchase provable date of purchase.

Any product BPE Solutions North America determines to be defective will be repaired or replaced at BPE Solutions North America's sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

BPE Solutions North America shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

BPE Solutions North America reserves the right to change the Product design without notice. BPE Solutions North America reserves the right to replace any part or whole unit with a newer design of the same function.

Samurai 17500lb 12v Electric Winch - Industrial Parts Image

1 600amp Heavy Duty Contactor CON012-CAD 600amp Heavy Duty Contactor CON012-CAD Translation missing: en.part.general.sale_price $99.99
2 Complete Control box including, Contactor and Wiring CBS17-CAD Complete Control box including, Contactor and Wiring CBS17-CAD Translation missing: en.part.general.sale_price $259.99
3 Motor S1750100 Motor S1750100   View
4 Motor Bracket S1750006-SD Motor Bracket S1750006-SD   View
5 End Bearing - S1750012 End Bearing - S1750012   View
6 Gearbox GBT175SD12 Gearbox GBT175SD12   View
7 Clutch Assembly S1750700 Clutch Assembly S1750700   View
8 Tie Bar S1750010 Tie Bar S1750010   View
9 Control Box Socket For Samurai Models SCK4S1-CAD Control Box Socket For Samurai Models SCK4S1-CAD Translation missing: en.part.general.sale_price $25.99

Download complete parts list

Reviews and Q&A.

  • What size cable /wire rope goes on a 17500lb winch


    Thanks for the question.

    Here is the rope size

    Cable – Dia x L Ø12mm×26.5m (Ø15/32”×86.9 ‘)

    A full spec list is also available on the "Specs" tab on the link below.

    Hope this helps!


  • if I have a Warrior Samurai 17500lb Winch with a steel cable can I replace the steel cable with a synthetic rope?


    Thank you for the question!

    Yes, the steel rope can be replaced by a synthetic at a later date.

    Remember, you would need to change the roller fairlead to one of the Aluminum Hawse fairleads at the same time.

    Hope this helps.
