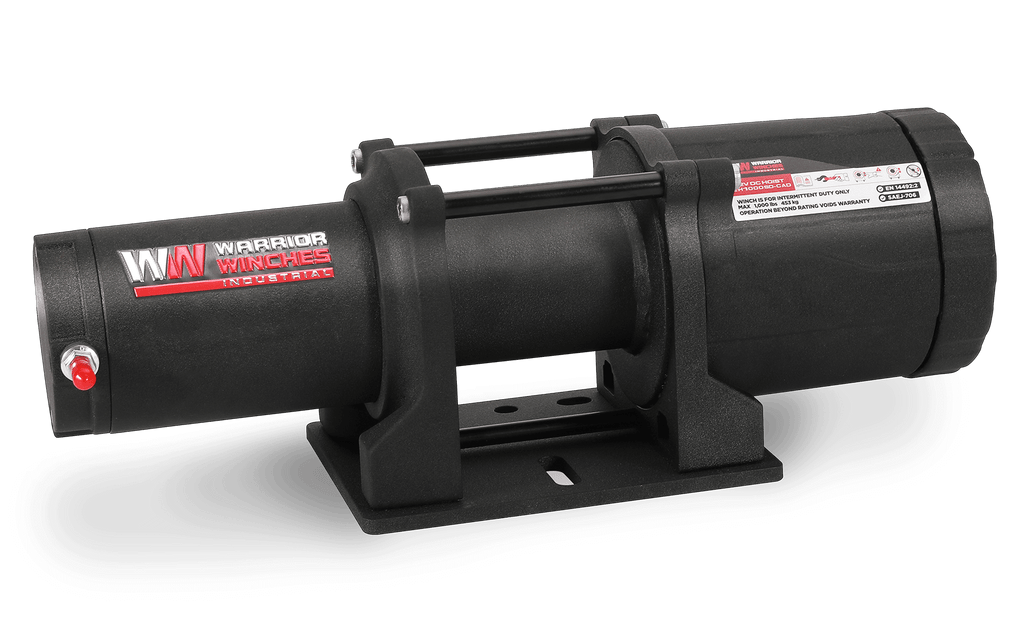

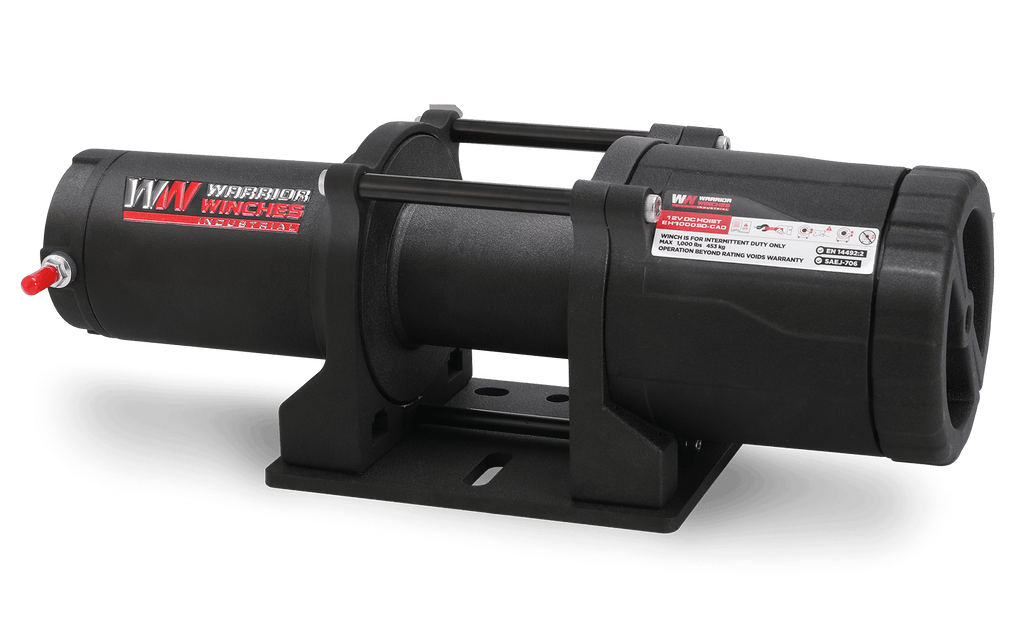

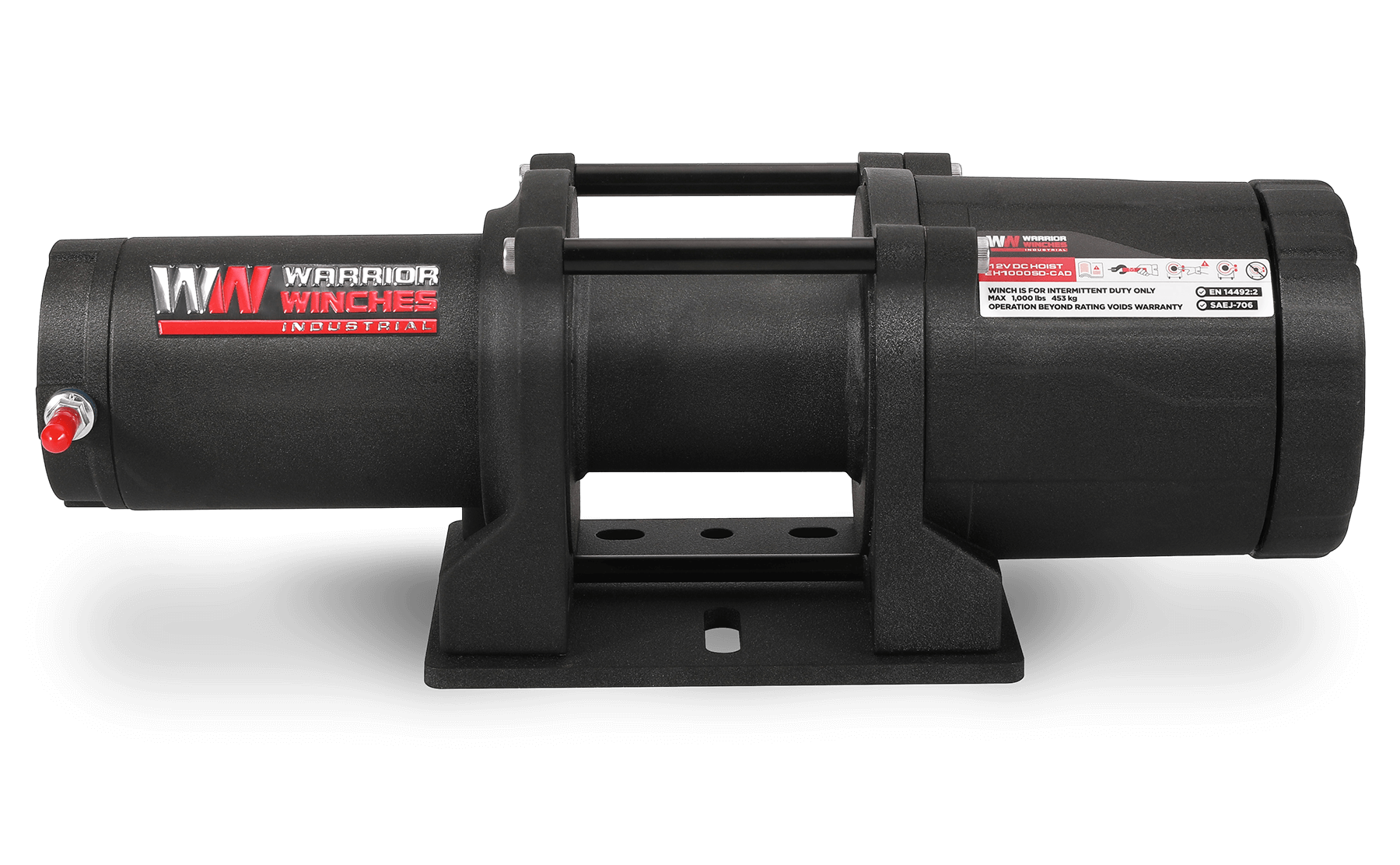

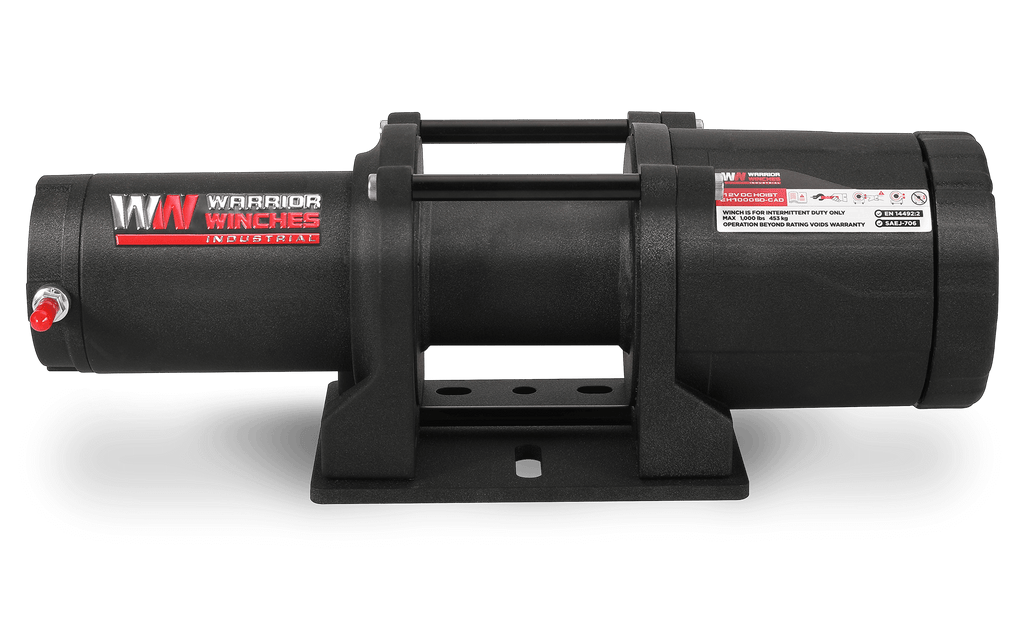

EH1000 Short Drum 12v Industrial Hoist

 0 Reviews |    Ask a Question
SKU: EH1000SD-CAD

Price:
Sale price$309.99
In stock (Delivery in 2-7 days)


Features

  • Powerful 3.2hp 12v Motor
  • Compact Drum for installation in tight spaces
  • Automatic Full Load Holding Brake: Benefit from an automatic mechanical brake that securely holds the full rated load, providing unparalleled safety during operation.
  • SAEJ-706 Compliant: Committed to excellence, Warrior Hoists comply with SAEJ-706 standards, meeting and exceeding regulatory requirements for quality and safety.
  • Durable Powder Coated Finish: Every Warrior Hoist comes with a durable powder-coated finish as standard. Engineered to withstand heavy usage, this finish not only enhances the hoist's resilience but also adds a touch of sophistication to its design.

The Warrior EH1000SD Industrial Hoist has a shortened drum for mounting in tight spaces. The hoist is designed for a wide range of lifting scenarios including truck mounted cranes, portable light towers and fixed applications.

Each EH Industrial Hoist is equipped with an All Metal Planetary Gear Train, Rugged 12V DC Motor, and Automatic Full Load Holding Brake.

The Hoist is supplied without rope and hook. These are available as optional accessories which include:

  • Full Control Box
  • Albright Contactor
  • Wire Rope and Hook
  • Overload Protection
  • Heavy Duty Wireless Remote
  • Hand Remote with Emergency Stop.

You can be assured of safe and reliable lifting every time with the entire family of EH Industrial Hoists.


Rated Line Pull 1000 lbs (453 kgs)
Motor Type 12V:Input:2.4kw/3.2hp; Output:1.0kw/1.3hp
Gearing 166:1
Braking Action Automatic screw cone

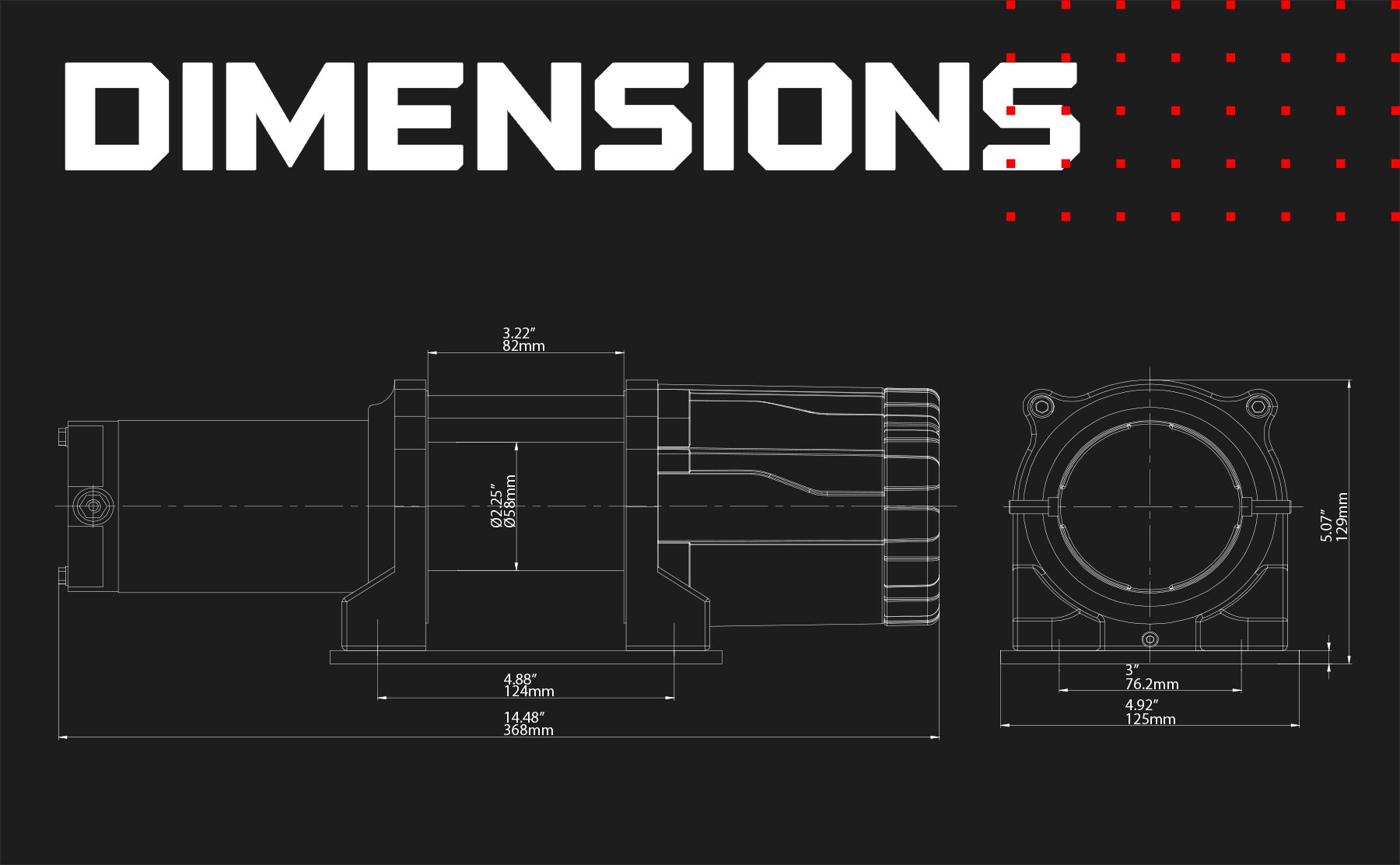

Drum Size (Dia x L) Ø2.28 "×3.2 " (Ø58mm×82 mm)
Cable Material Steel
Cable – Dia x L Ø1/5"×42 ' (Ø5.2mm×12.8m)
Mounting Pattern 4.89 "×3.0 " (124mm×76.2 mm
Dimensions 14.5"×4.92"×5.1" 368 mm ×125 mm ×129 mm
Weight (lbs) 18.52
Certification SAEJ-706 & EN14492:2



Layer of Rope/Cable Line Pull: lbs(kgs)
1 1000 (453)
2 858 (389)
3 752 (341)
4 669 (303)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 18 (5.5) 28
500(227) 16.4 (5.0 35
800(363) 15.7 (4.8) 45
1000(453) 15.1 (4.6) 52
  • EH Hoist
  • Mounting Plate
  • Operating Manual
User Manual Download
Brochure Download
Specifications Sheet  Download
Parts list  Download

Limited lifetime with 3 year on electrical

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

BPE Solutions North America (“seller” or BPE Solutions North America) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (3) three years (36 Months)* from the original purchase provable date of purchase.

    Any product BPE Solutions North America determines to be defective will be repaired or replaced at BPE Solutions North America's sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

    All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

    Register your winch here

    To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

    The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

    This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

    This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

    BPE Solutions North America shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

    BPE Solutions North America reserves the right to change the Product design without notice. BPE Solutions North America reserves the right to replace any part or whole unit with a newer design of the same function.
