12RT2A12-CAD

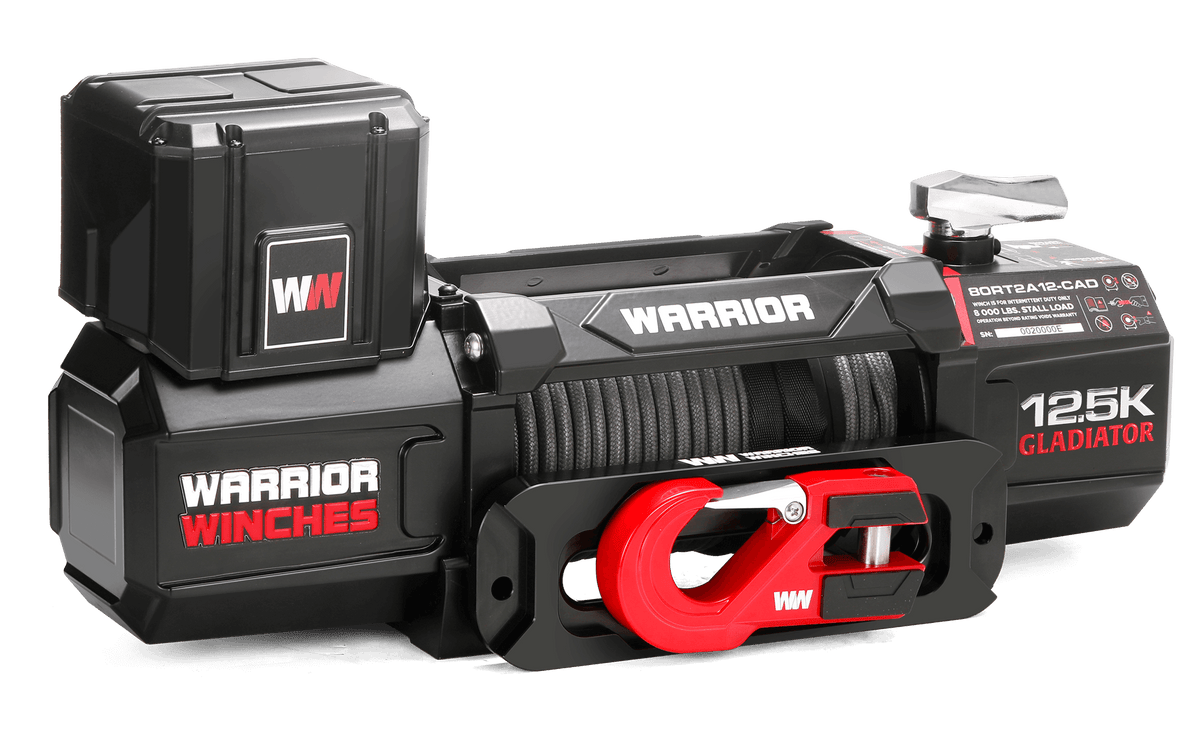

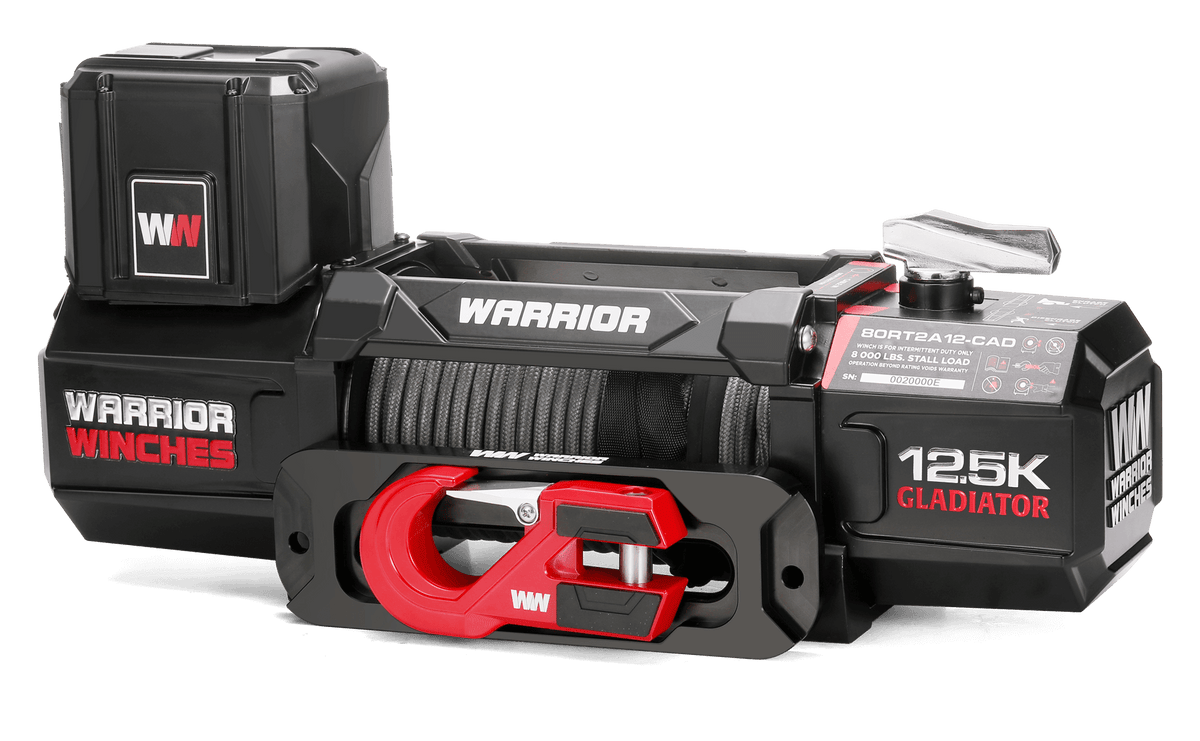

Gladiator V2 R-Type 12,500 Electric Winch - 12v Synthetic Rope

Warranty: 7 Years
$999.99
Delivery in 2-7 days
Buy now, pay later options available at checkout
American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
Shipped from USA with expert support when you need it.

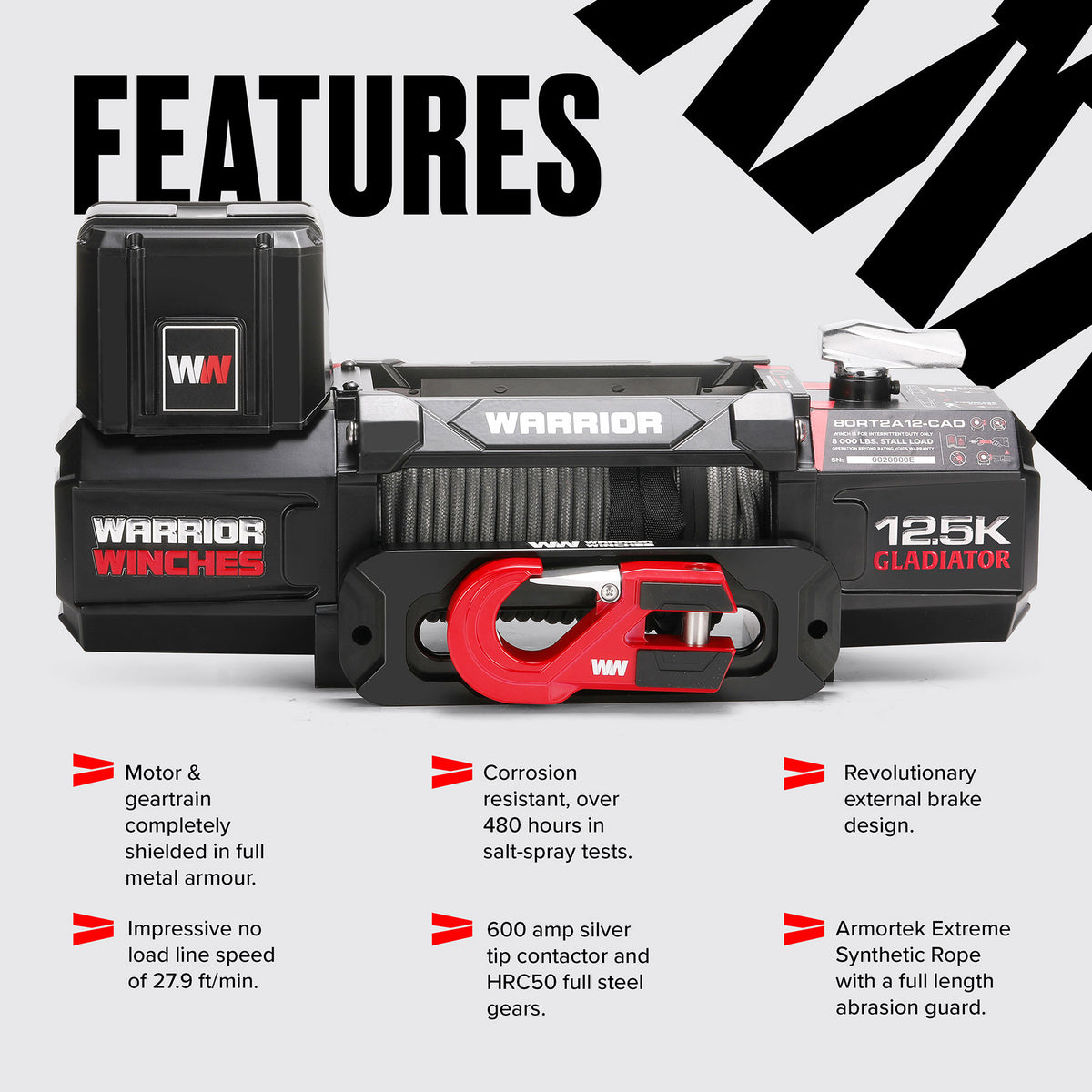

Features

  • Bring on the Mud, Water and Weather: Full metal armor, stainless steel hardware and IP68 waterproof protection help keep critical winch components protected in harsh conditions.

  • Lightweight Handling. Built to Take the Abuse: The Armortek Extreme Synthetic Rope is easier to position than steel while its full-length abrasion guard helps defend against wear, UV exposure and moisture through repeated recoveries.
  • Lightweight Hardware. Serious Strength: The 7075 aviation-grade aluminum hawse fairlead and 16,000lb-rated hook provide high-strength recovery hardware without unnecessary weight.
  • Stay in Control When the Pressure Hits: The external brake helps manage heat around the drum, while thermal overload protection helps protect the motor during extended recovery work.
  • Command the Recovery From Up to 50 Feet Away: The rechargeable wired and wireless remote lets you operate the winch remotely, giving you greater flexibility around the vehicle.

The Gladiator V2 R-Type 12,500lb Electric Winch combines serious pulling power with the lightweight handling and advanced protection of synthetic rope. As part of Warrior Winches' premium Gladiator range, it brings together a powerful 12V motor, Armortek Extreme Synthetic Rope, premium 7075 aviation-grade aluminum components, and rugged all-weather protection. With a 12,500lb rated line pull, it is engineered for serious off-road enthusiasts, truck and Jeep owners, and demanding recovery applications where greater pulling capacity is required.

12,500lb of Strength for Serious Recoveries
The Gladiator V2 R-Type delivers a 12,500lb rated line pull from its high-performance 12V motor, producing 5.0kW of input power and 6.7hp. Its 253:1 planetary gearing provides controlled, dependable pulling performance, while a no-load line speed of up to 27.9 ft/min helps recover the rope quickly when the load is off.

High-Capacity Recovery Without the Extra Weight
The 82ft Armortek Extreme Synthetic Rope provides the strength needed for serious recovery work while offering the lighter, easier handling associated with synthetic rope. A full-length abrasion guard helps protect the rope against wear, UV rays, and moisture, making it well suited to demanding off-road conditions and repeated recovery use.

Lightweight Components With Serious Strength
The 7075 aviation-grade aluminum hawse fairlead delivers exceptional strength without unnecessary bulk. Its UV-resistant anodized finish adds protection against exposure to sun, mud, rain, and other harsh outdoor conditions, while complementing the lightweight synthetic-rope setup.

A 16,000lb Hook for Added Recovery Capacity
The Armortek hook is rated to 16,000lb, providing substantial strength for heavy recovery applications. Its robust construction gives the synthetic rope system a strong connection point without compromising the Gladiator's focus on performance and weight-conscious design.

Protection That Keeps Working in Harsh Conditions
Full metal armor protects the motor and geartrain, while the aluminum control pack cover and stainless steel hardware provide additional durability and corrosion resistance. IP68 waterproof protection helps shield the winch from water and dust, while over 480 hours of corrosion resistance helps it withstand demanding outdoor environments.

Stay in Control When the Load Gets Heavy
The patented ratchet braking and external brake design help manage heat around the drum during demanding recovery operations. Thermal overload protection also helps protect the motor from excessive heat, supporting reliable performance during extended or heavy pulls.

Take Control From Up to 50 Feet Away
The 2-in-1 rechargeable wired and wireless remote gives you flexible control from up to 50 feet away. Wireless operation allows you to position yourself away from the immediate recovery area, while USB charging keeps the remote convenient and ready for use.

Serious Gladiator Performance, Backed for 7 Years
The Gladiator V2 R-Type 12,500lb is built for users who expect substantial pulling capacity, premium construction, and dependable recovery performance. With Armortek Extreme Synthetic Rope, aviation-grade aluminum components, a 16,000lb-rated hook, IP68 protection, and a 7-year warranty, it delivers the capability and durability expected from Warrior Winches' premium Gladiator range.

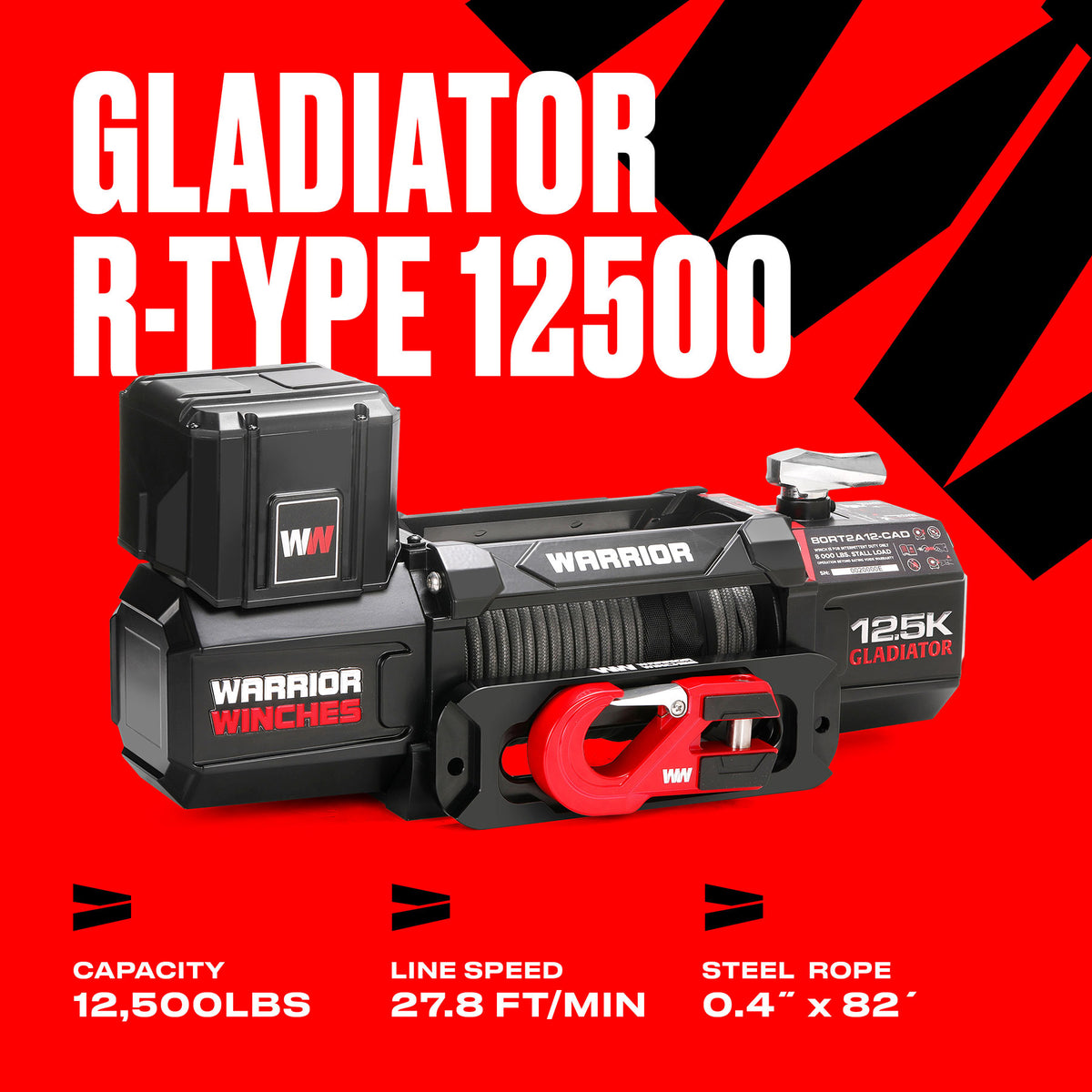

Rated Line Pull 12500 lbs
Motor Type 12V: Input: 5.0kw/6.7hp; Output: 2.4kw/3.2hp
Rated Volt 12v
Clutch Manual
Gearing 253:1
Gearing System Planetary
Braking Action Patented ratchet
Drum Size (Diameter x Length) 2.48 x 8.54 in
Controls 2in1 Rechargeable Wired/Wireless Remote
Cable Material Synthetic
Cable Size (Diameter x Length) 0.39 in x 82 ft
Find replacement Armortek Synthetic Rope
Fairlead Hawse
Mounting Pattern 10 x 4.5 in (4-M10)

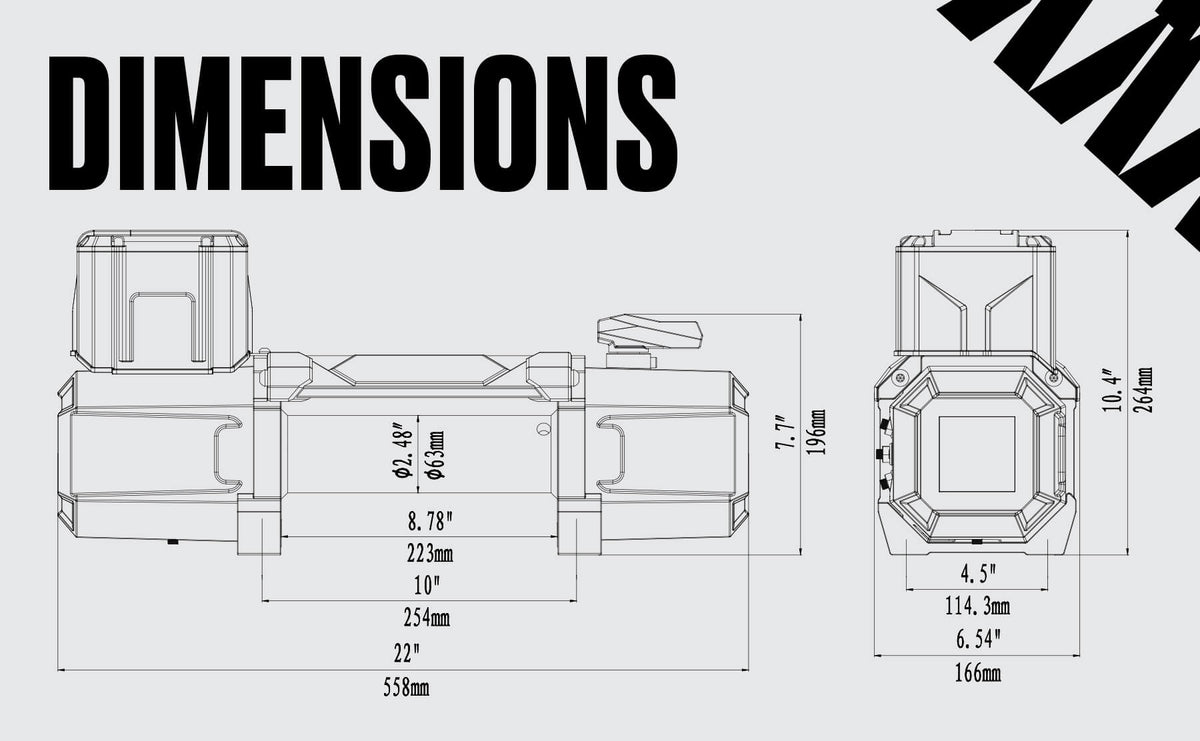

Dimensions (LWH) 21.97 x 6.54 x 10.39 in
Weight 72 lbs
Warranty 7 Year
Waterproof Rating (IP) 68



Layer of Rope/Cable Line Pull: lbs (kgs) Rope on drum ft(m)
1 12500(5670)15.1(4.6)
2 9775(4434)34.1(10.4)
3 8000(3629)57.7(17.6)
4 6800(3084)82(25)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 27.9(8.5)45
6000(2722)11.5(3.5) 200
8000(3629) 8.2(2.5) 240
10000(4536) 5.9(1.8)300
12500(5670) 4.2(1.3) 380

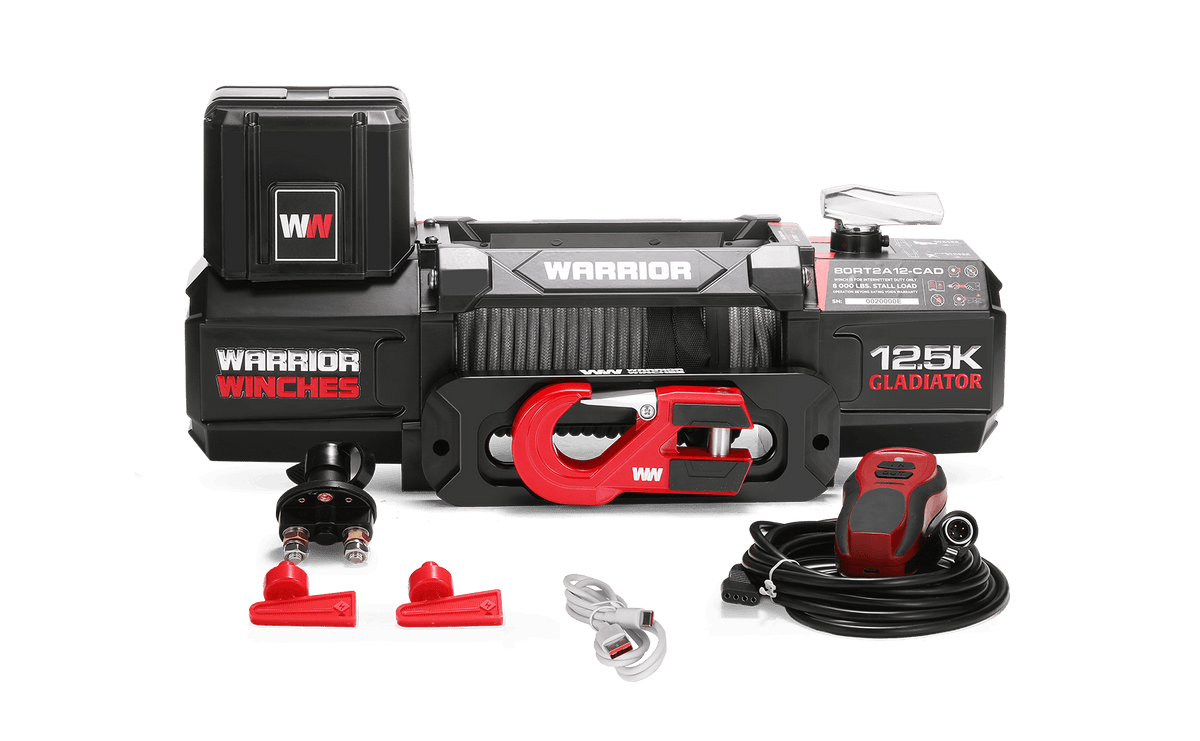

  • Gladiator Winch
  • 2in1 Rechargeable Remote (Wired and wireless)
  • Armortek 7075 Aviation-Grade Aluminum Fairlead
  • Armortek 16,000 lb Hook
  • Armortek Extreme Synthetic Rope
  • Removable Heavy Duty Hook
  • Heavy Duty Battery Leads
  • Isolation Switch
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Brochure Download
Specifications Sheet  Download

Video

This winch has a 7 Year Warranty

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earnings
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samurai range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.

WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 7-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.
- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force majeure events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here
