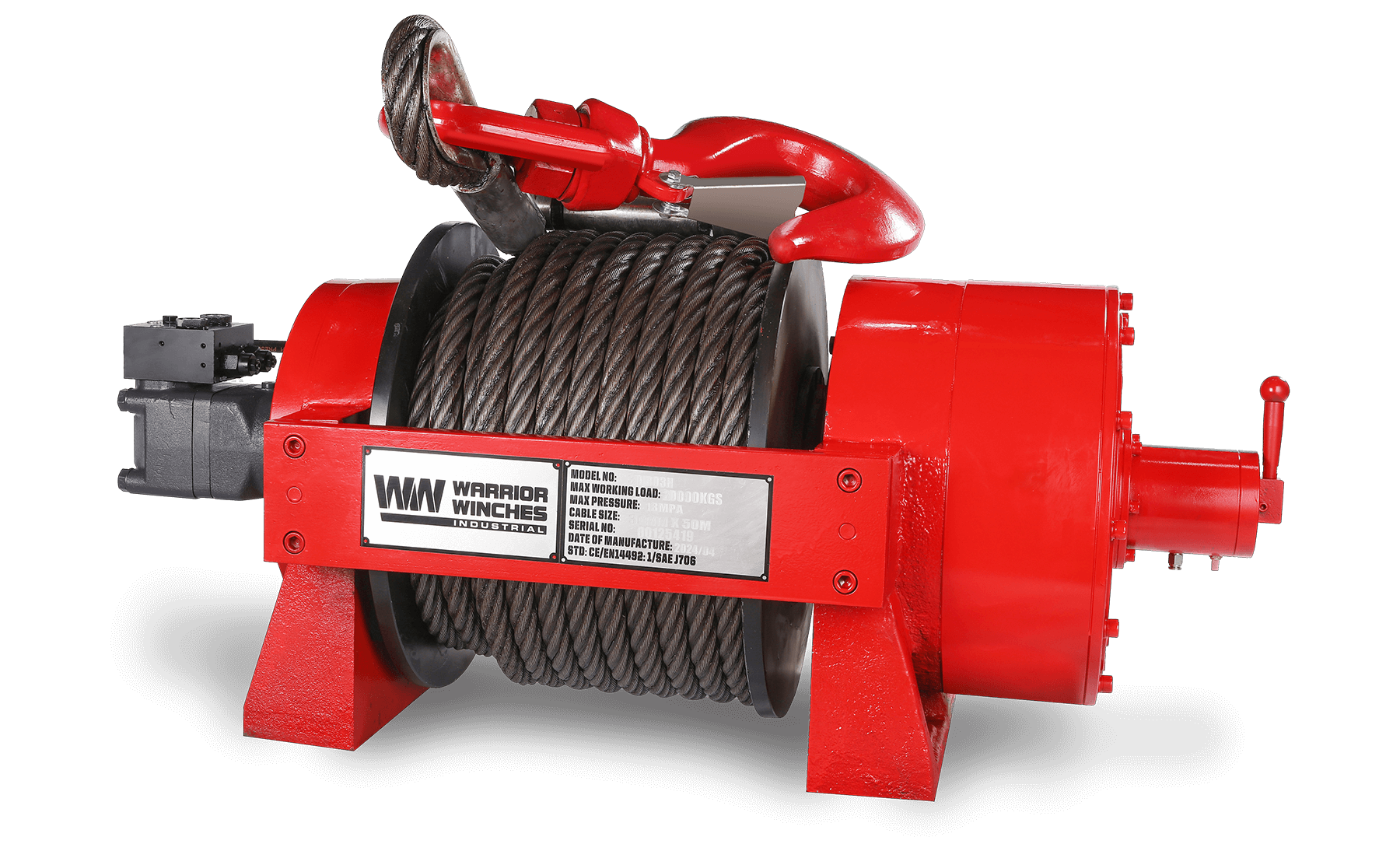

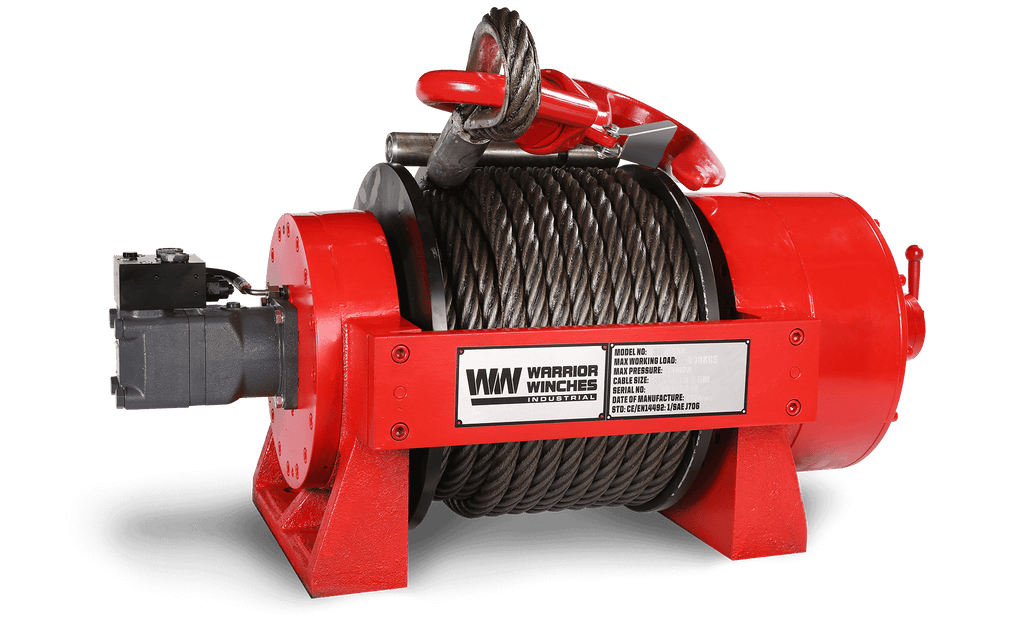

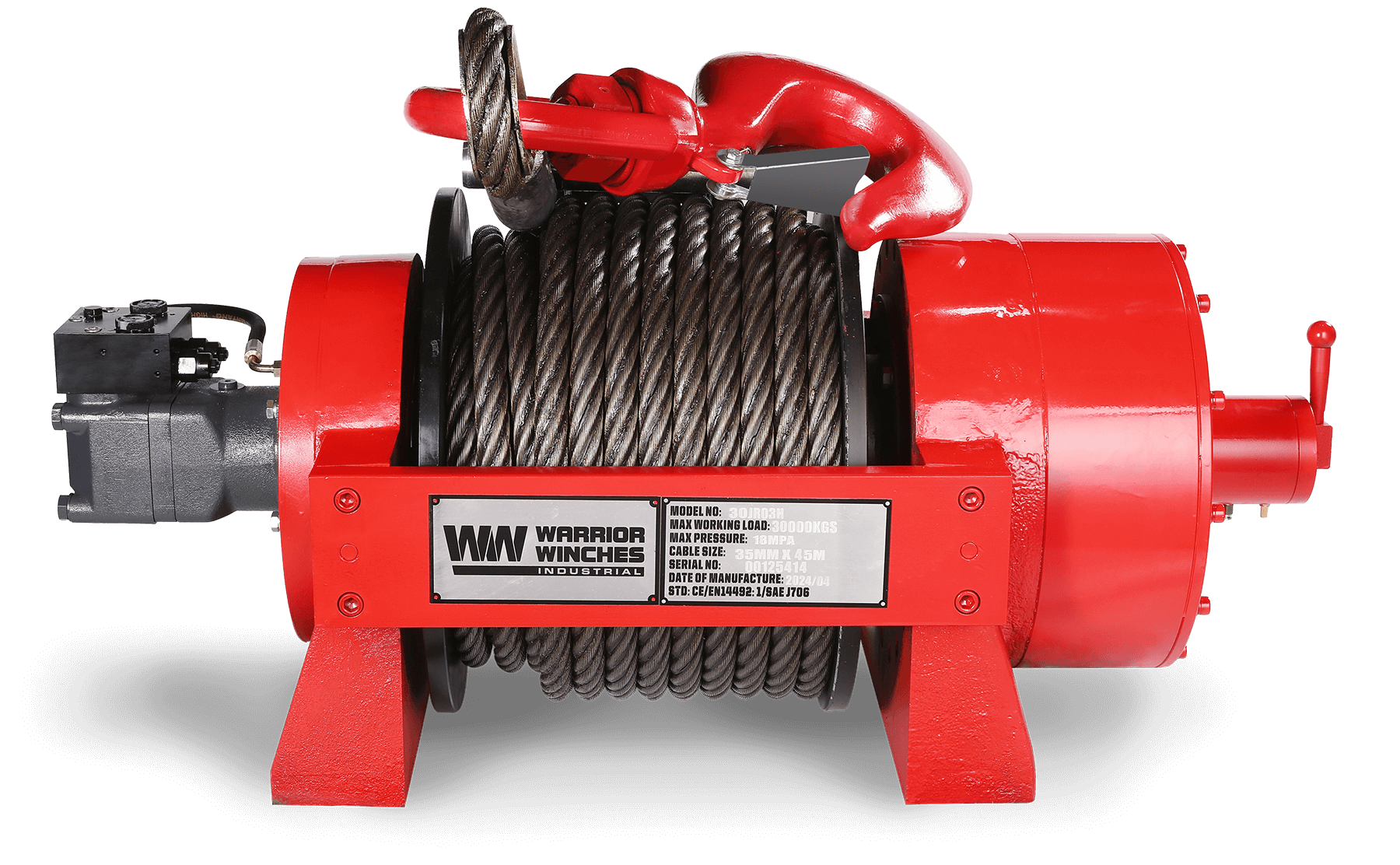

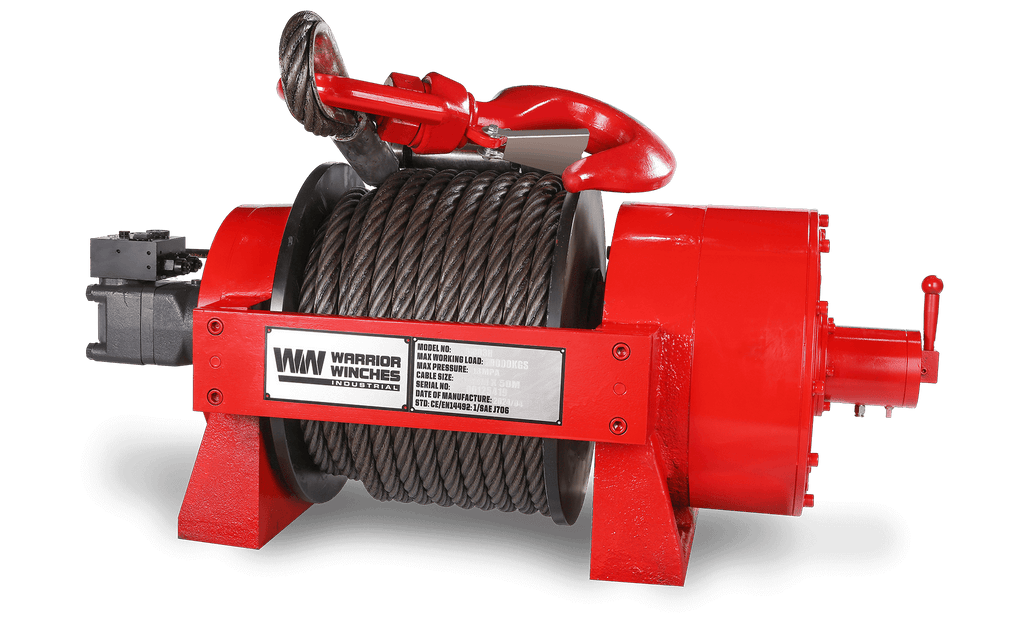

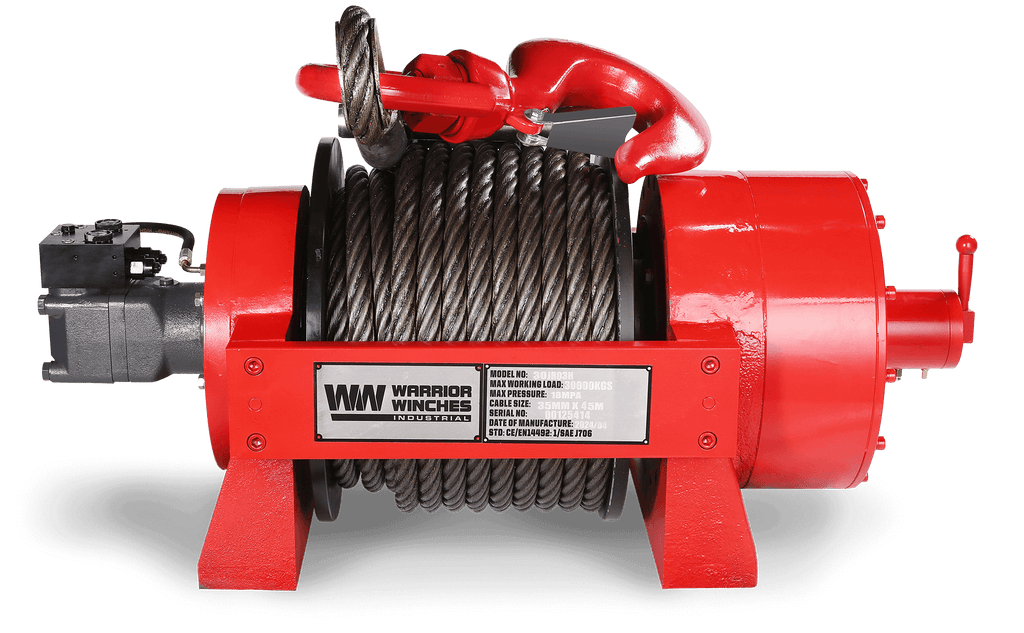

JR30 66,000lb (30 Ton) Industrial Hydraulic Winch

 0 Reviews |    Ask a Question
SKU: 30JR02H-CAD

Price:
Sale price$21,899.99
Only 1 unit left (Delivery in 2-7 days)


Features

  • Full Float Heavy Duty Planetary Gearing
  • Multi Disc Friction Brake
  • High Torque Industrial Motor
  • Air and Manual Clutch Operation (included)
  • Balance Valve as Standard
  • SAEJ-706 Standard Compliant
  • Reversable Orientation: These winches can be mounted with the motor on the left or right with the rope spooling from top or bottom.

Durable and space-efficient, the JR series stands as a robust line of hydraulic winches meticulously engineered and proven for the most demanding tasks. These winches range in capacity from 13 tonnes to 30 tonnes, and they are carefully crafted to adhere to the SAEJ-706 Standard.

Rated Line Pull 66000 lbs
Gearing 53:1
Clutch Air Clutch
Braking Action Wet-type Hydraulic
Drum Size (Dia x L) Ø10.63 “ × 14.2 “ (Ø270mm×360 mm)
Cable Material Steel
Cable – Dia x L Ø1.26 “×147FT(Ø32mm×45m)
Mounting Pattern 24” × 6.7 × 12.2”
610mm ×170 × 310mm
8- M27

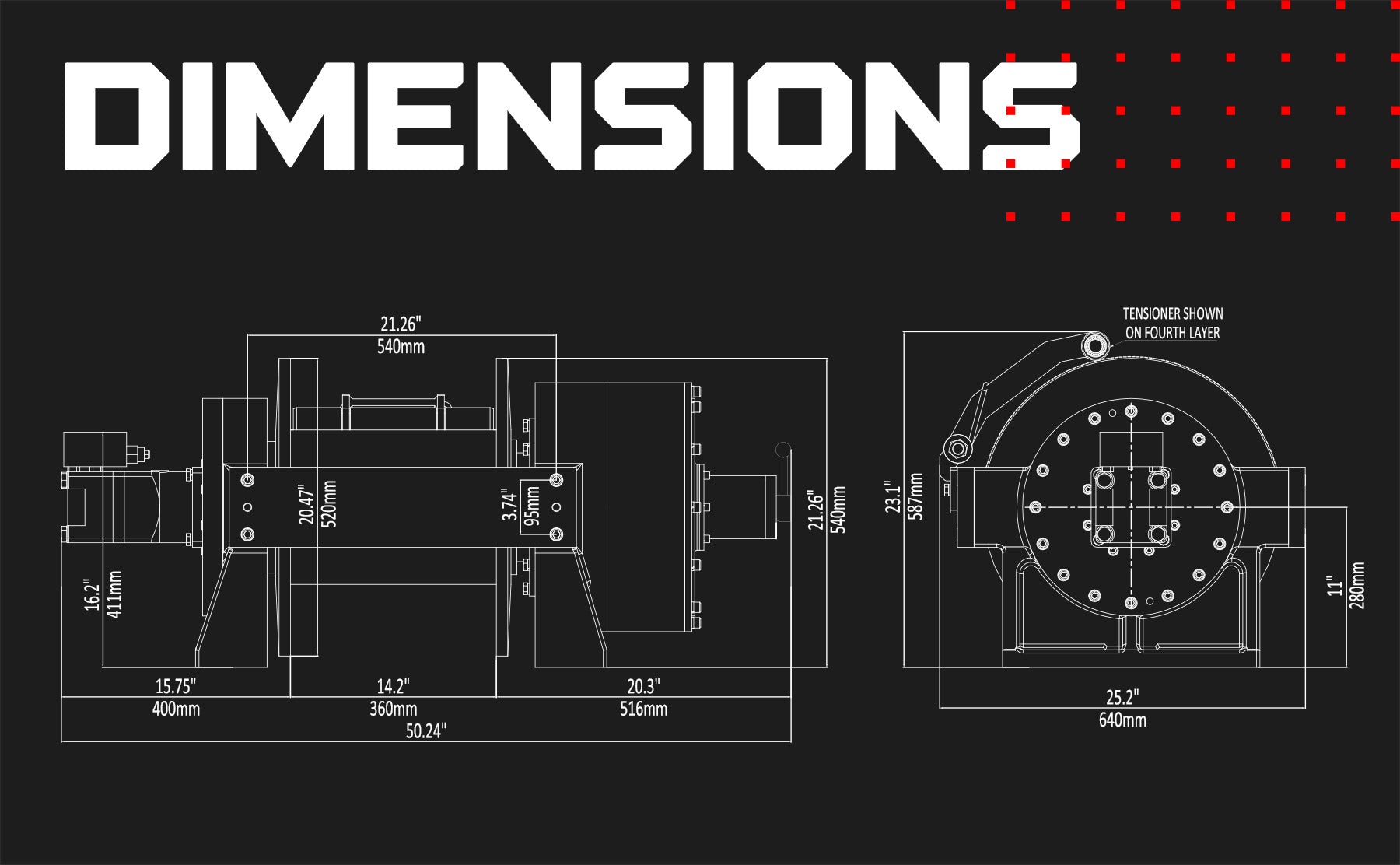

Dimensions 50.24” × 25.2” × 21.3”
1276mm × 640mm × 540mm
Weight 2083 lbs (945 kg)
Max Flow 31.7 G/min (120 L/min)
Max Pressure 2600 psi (180 Bar)
Certification SAEJ-706



Line pull lbs (kgs) Pressure Mpa(Psi)
0 7 (1015.3)
44000 (20000) 11 (1595.4)
55000 (25000) 14 (2030.5)
66000 (30000) 16 (2320.6)
Flow G/min (L/min) Line speed ft/min(m/min)
5.3 (20) 2.0 (0.6)
13.2 (50) 5.2 (1.6)
22.5 (85) 9.8 (3.0))
31.7 (120) 13.5 (4.1)
Layer of wire rope Rated line pull lbs(kgs) Total rope on drum ft (m)
1 66000 (30000) 27.9 (8.5)
2 54572 (24754) 61.7 (18.8)
3 46450 (21070) 101.7 (31)
4 40432 (18340) 147 (45)
  • JR Hydraulic Winch
  • Steel Rope and Heavy Duty Hook
  • Manual/Air Clutch

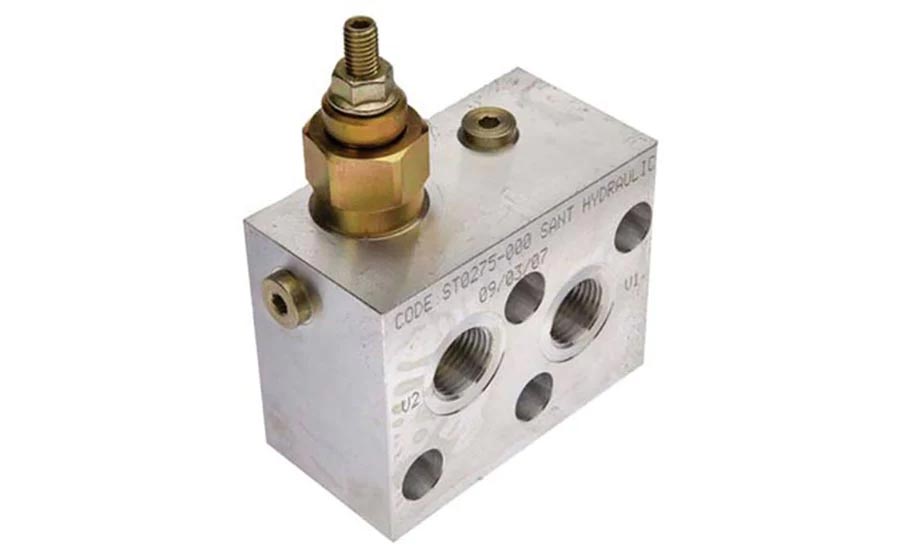

  • Balance Valve

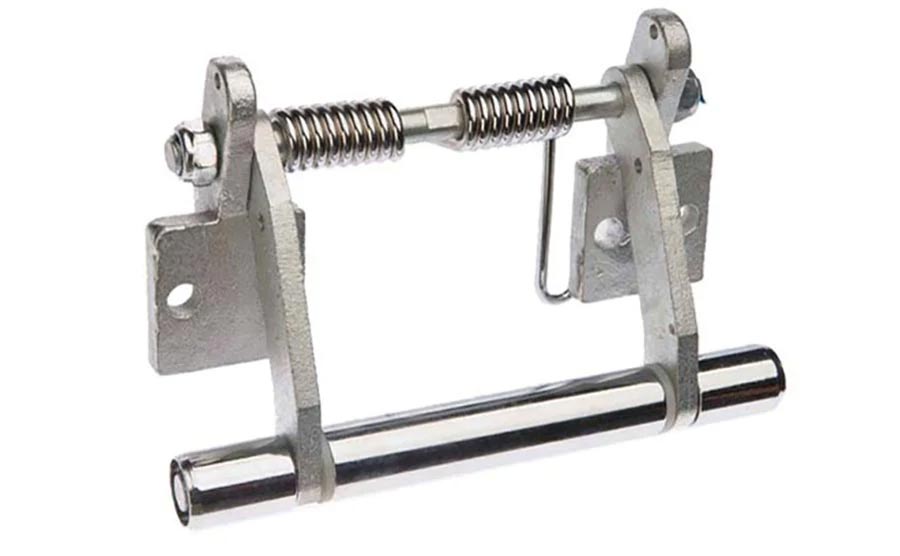

  • Tensioner
  • Operating Manual
User Manual Download
Brochure Download
Specifications Sheet  Download
Parts list  Download
Durability Test Download

Limited lifetime with 5 year on electrical

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

BPE Solutions North America (“seller” or BPE Solutions North America) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (5) five years (60 Months)* from the original purchase provable date of purchase.

    Any product BPE Solutions North America determines to be defective will be repaired or replaced at BPE Solutions North America's sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

    All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

    Register your winch here

    To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

    The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

    This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

    This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

    BPE Solutions North America shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

    BPE Solutions North America reserves the right to change the Product design without notice. BPE Solutions North America reserves the right to replace any part or whole unit with a newer design of the same function.
