SP4000-CAD

SP4000 600lbs Snow Plow 12V Electric WInch

Sale price$299.99
Delivery in 2-7 days

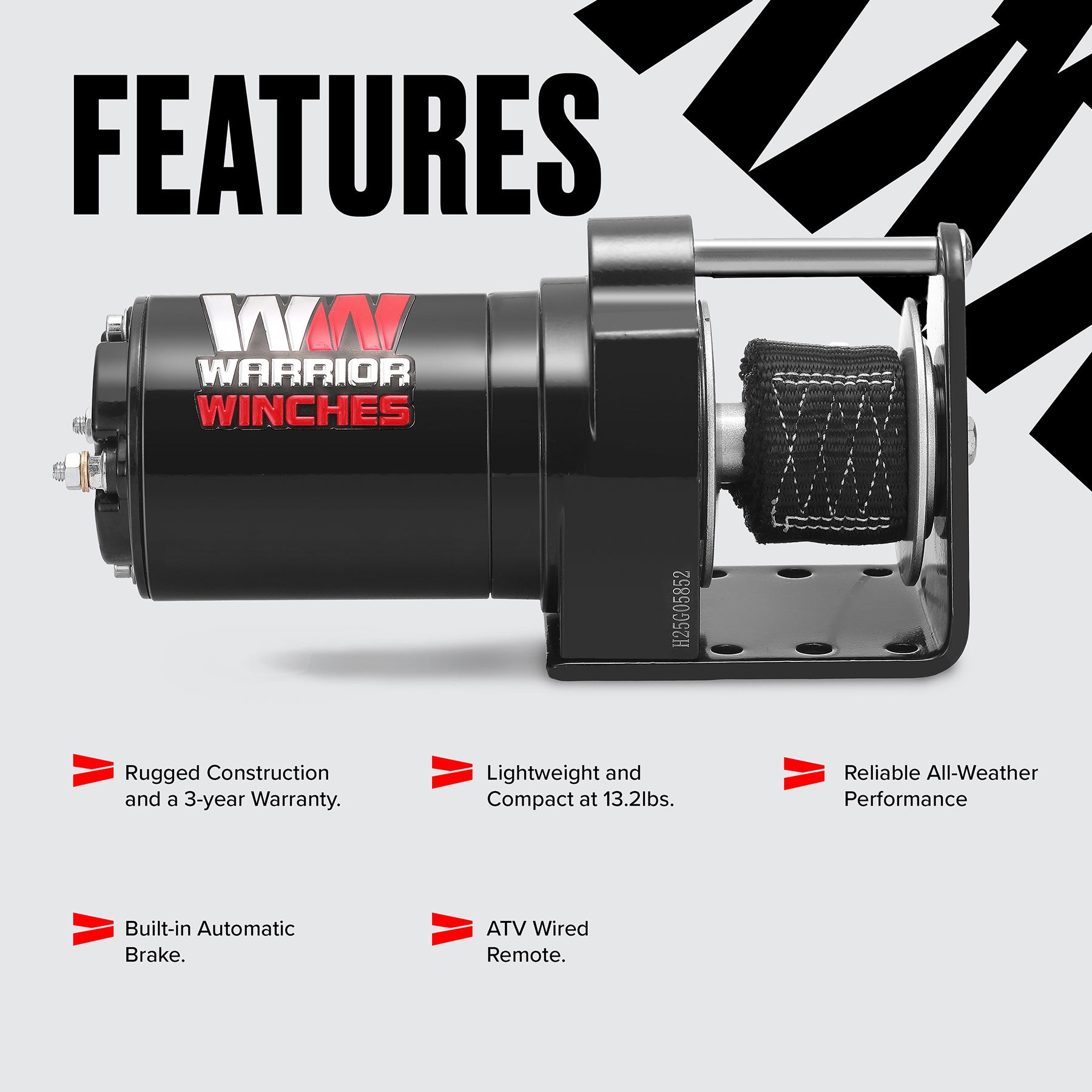

Features

  • With a 600 lb rated line pull, the SP4000 makes raising and lowering your snow plow blade quick and easy, reducing strain and saving time during snow clearing.
  • The built-in automatic brake securely holds the plow blade in position as soon as you stop, ensuring accurate height control and added safety when working in varying conditions.
  • Designed with a weather-resistant build, durable strap, and sealed solenoid, the SP4000 is built to perform consistently through rain, snow and ice without letting you down.
  • Lightweight and compact, the SP4000 can be universally mounted easily and operated on personal snow plow kits, letting you spend less time setting up and more time clearing snow.
  • Rugged construction and a 3-year warranty give you confidence that the SP4000 will keep working reliably every winter, even with frequent use.

SP4000-CAD: Effortless control for your snow plow.

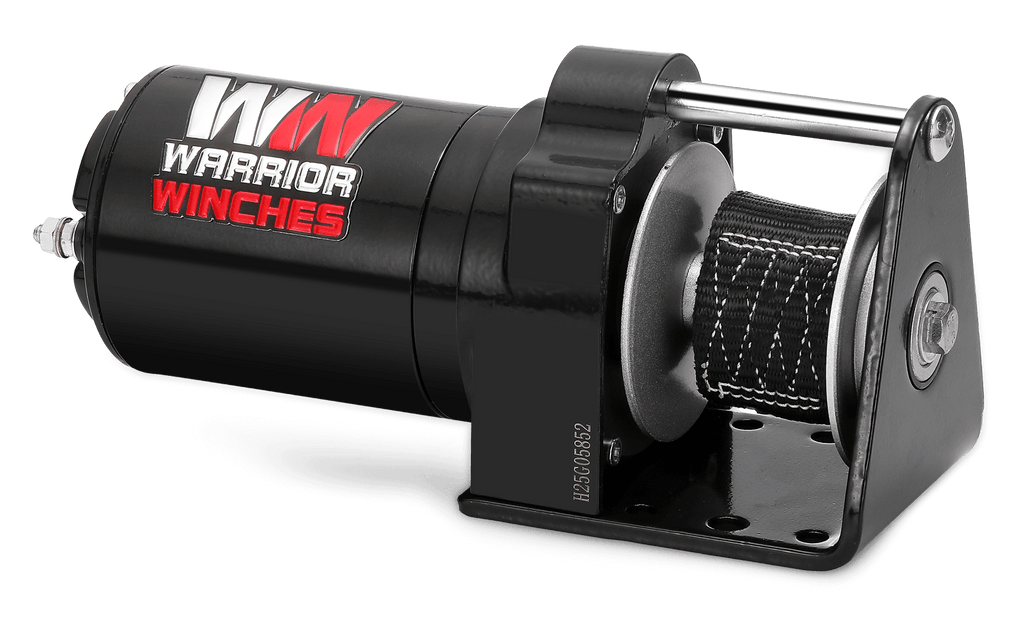

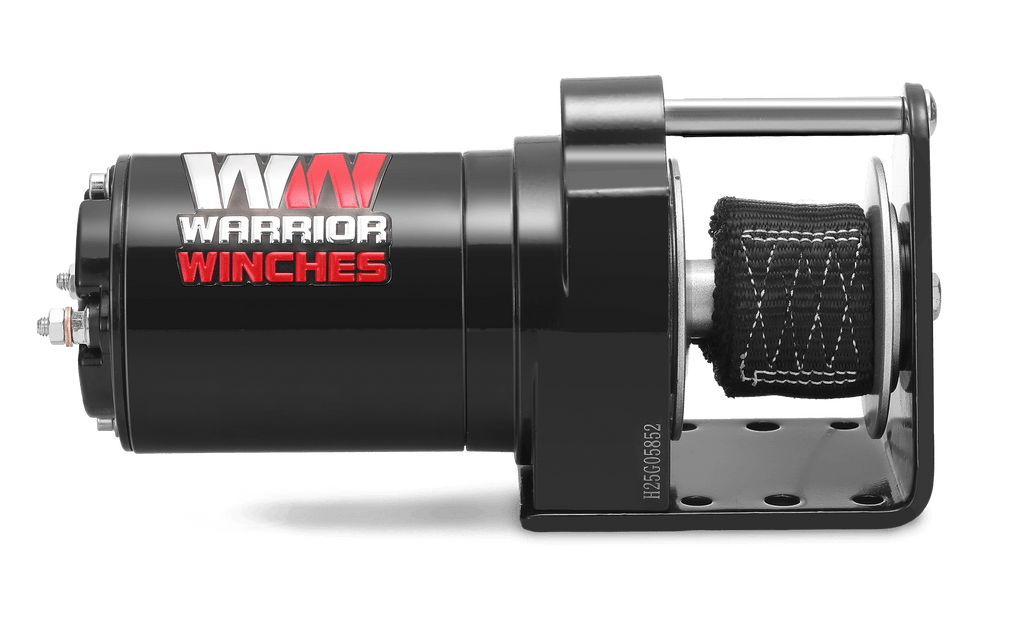

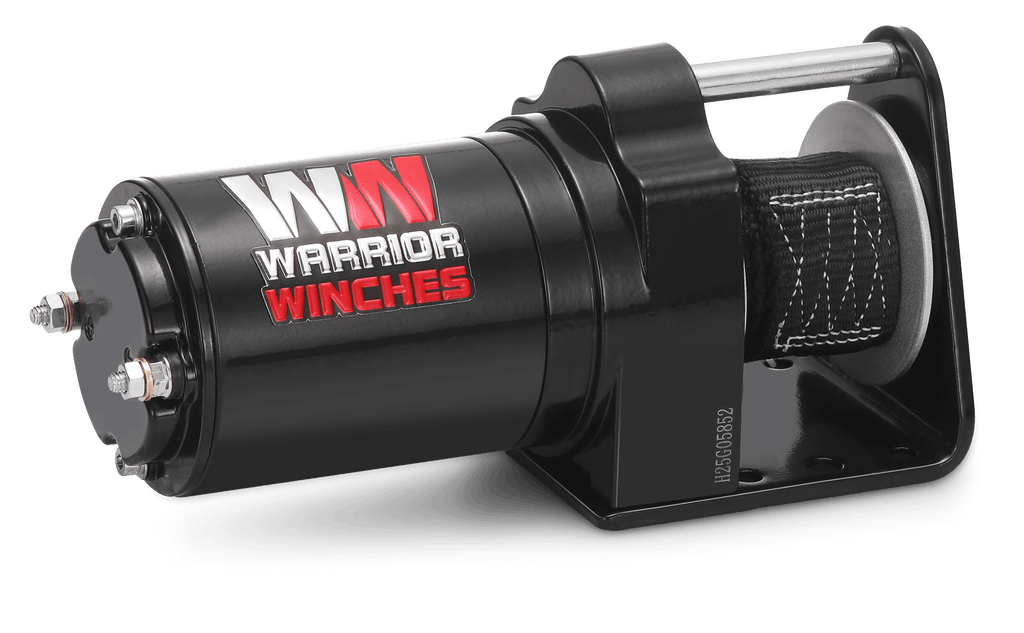

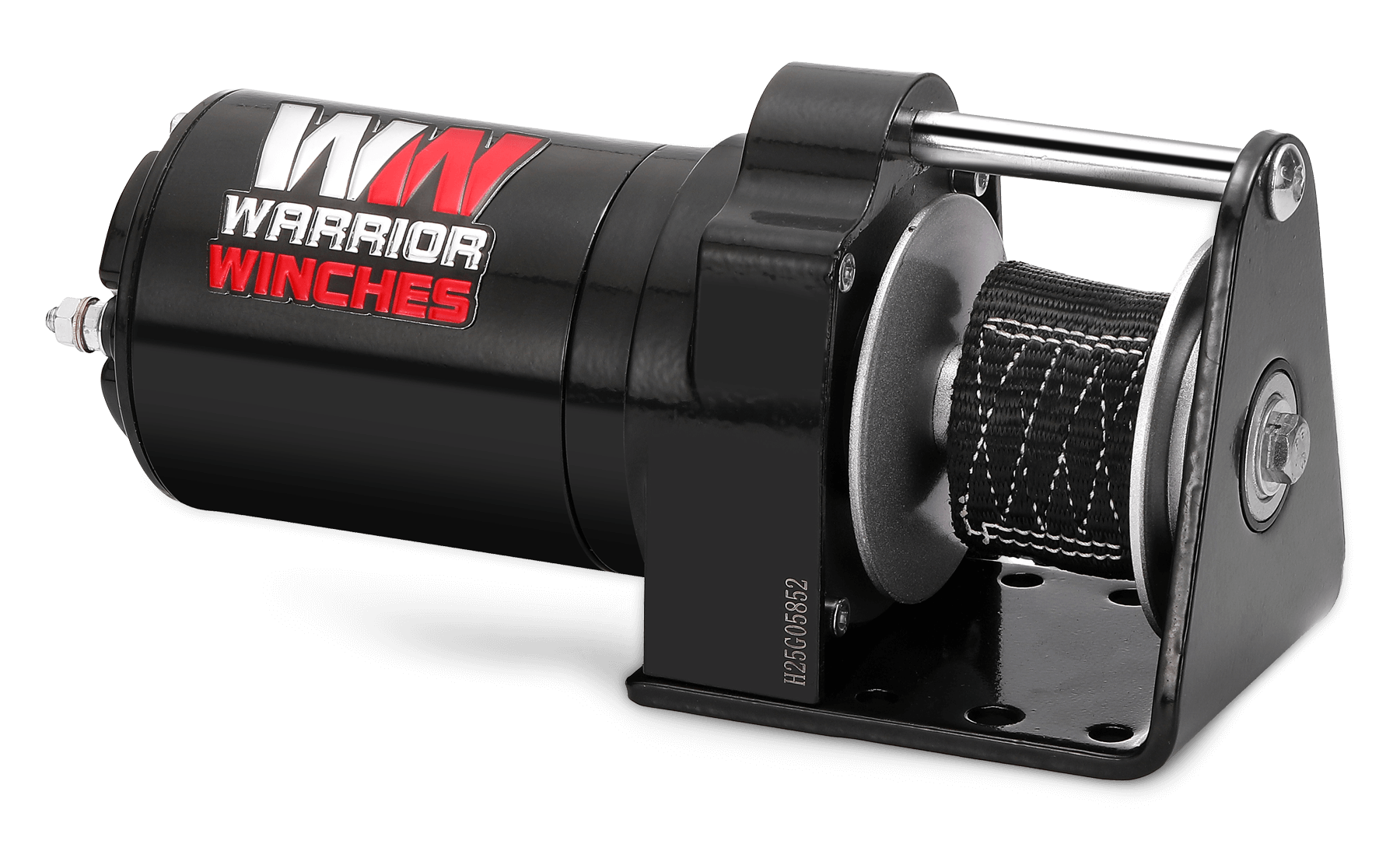

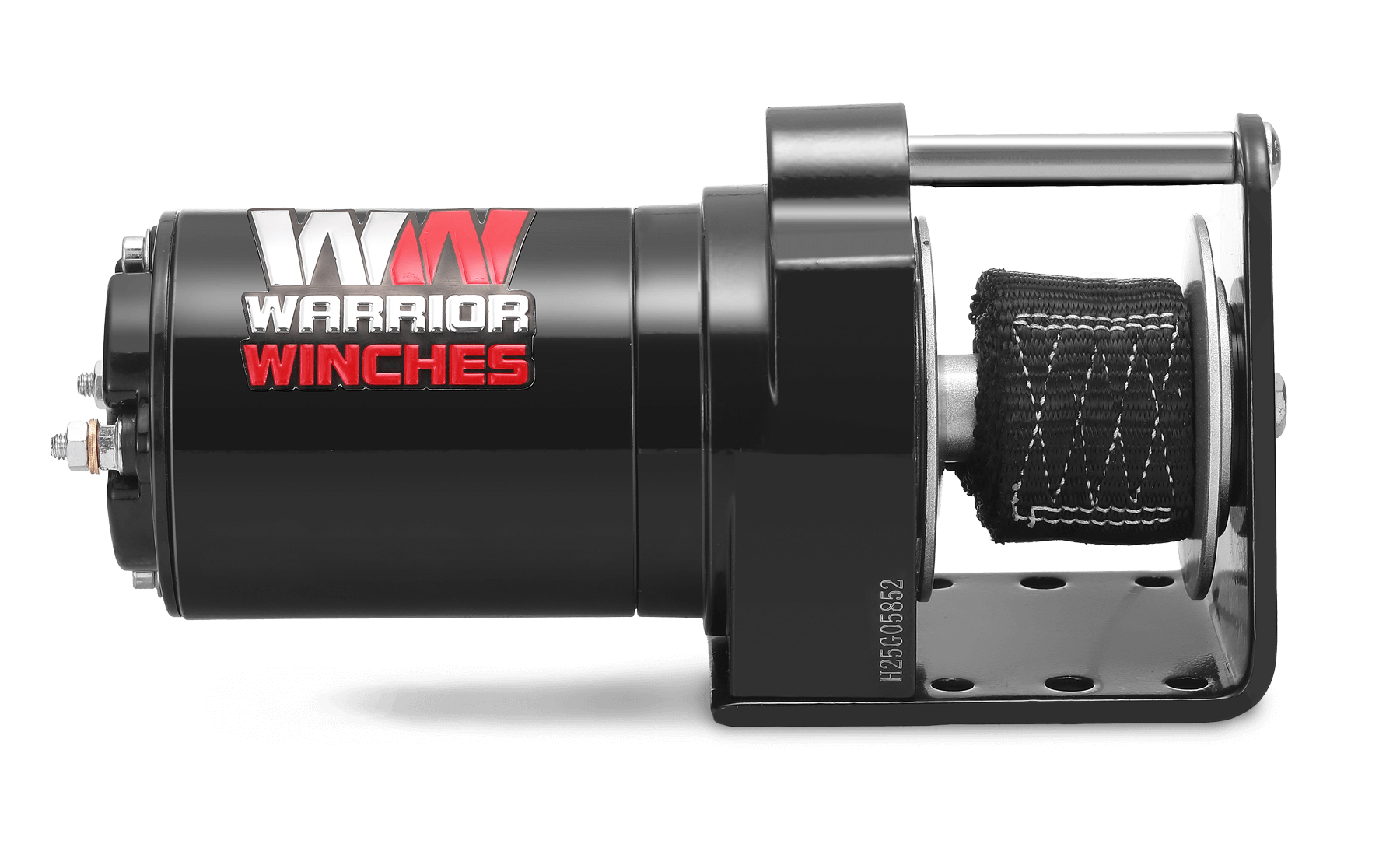

The Warrior SP4000 Heavy Duty Snow plow Winch takes the effort out of lifting and lowering your snow plow blade, making the job quicker, easier, and safer than ever before. Powered by a dependable 12V motor and capable of a 600 lb (272 kg) rated line pull, it delivers smooth, reliable control at the touch of a button.

An automatic brake locks the plow blade securely in place the moment you stop, giving you precise height adjustment and the confidence to work safely in any position. Built with a tough, weather-resistant housing, a durable strap, and heavy-duty sealed solenoid, the SP4000 is designed to keep performing through the winter months. season after season. Its compact and lightweight design also makes installation straight forward on most personal snow plow types, so you can be up and running with minimal effort.

Perfect for frequent raising and lowering of snow plow blade in challenging winter conditions, the SP4000 provides dependable performance, complete control, and the durability you need to get the job done time and time again – all backed by a 3-year warranty for lasting peace of mind.

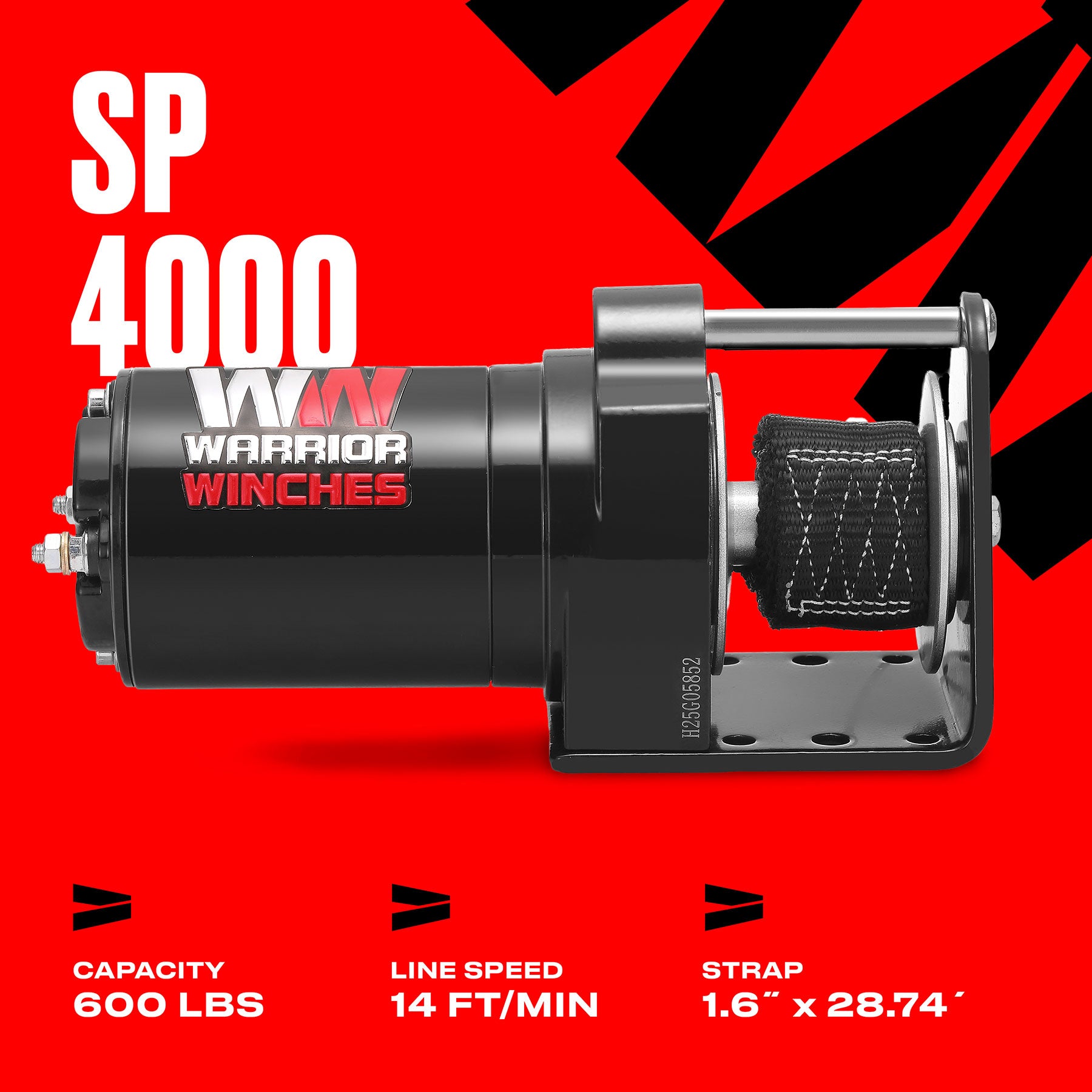

Rated Line Pull 600 lbs
Motor Type 12V: Input: 0.7hp / 0.54kW; Output: 0.4hp / 0.3kW
Clutch Manual
Gearing 153:1
Gearing System Planetary
Braking Action Self-Lock

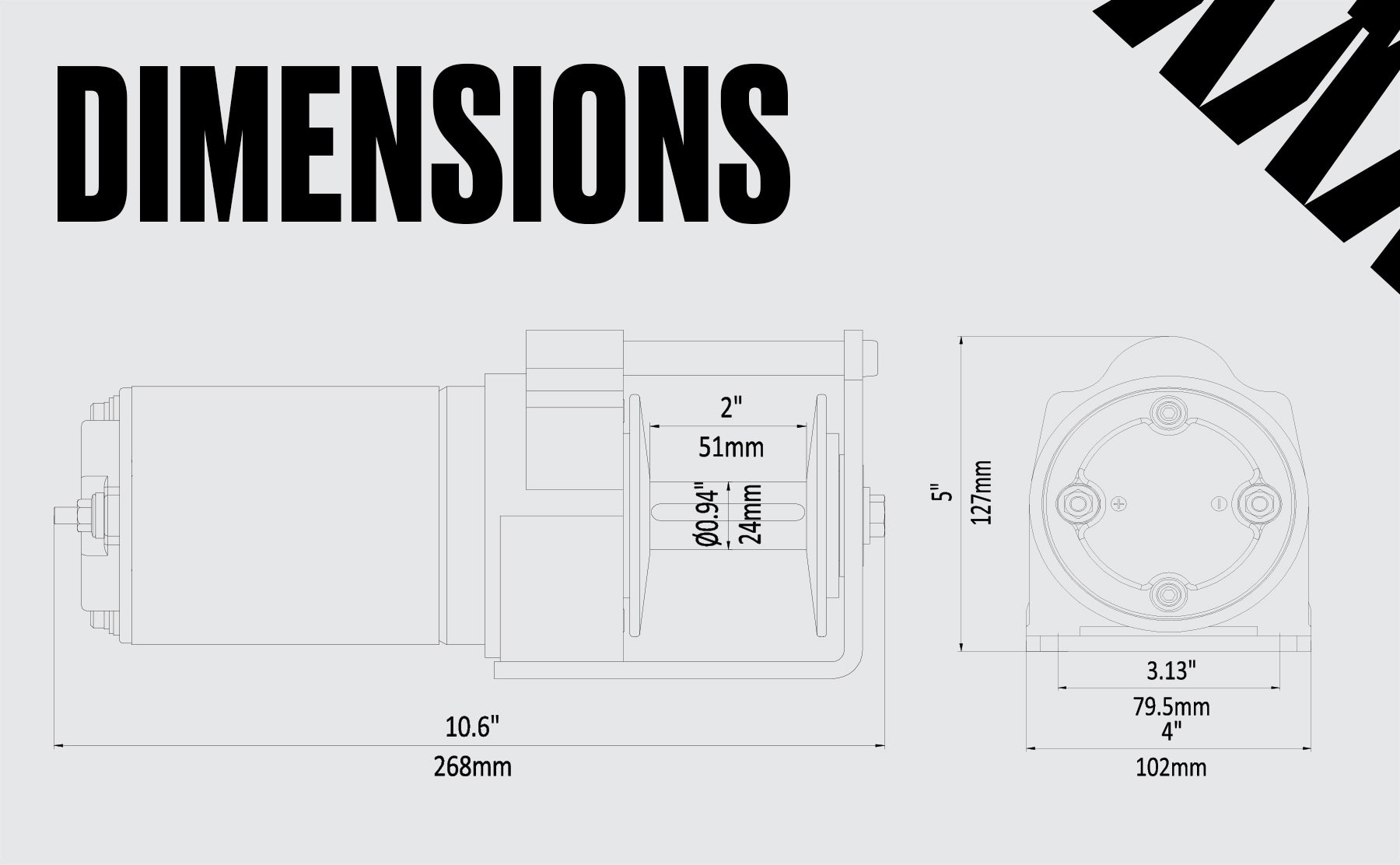

Drum Size (Diameter x Length) 0.94 x 2 in
Controls Wired Remote
Strap Material Nylon
Cable Size (Diameter x Length) 1.6 in x 2.4 ft
Mounting Pattern 3.13 in
Dimensions 10.6 x 4.0 x 5.0 in
Weight 13.2 lbs
Waterproof Rating (IP) 54



Layer of Rope/Cable Line Pull: lbs(kgs) Total Rope on Drum ft (m)
Bare 1150(521)  0.26(0.08)
Mid 800(362)   1.3(0.4)
Top 4109(1864) 2.4(0.74)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 14(4.5) 10
250(113) 11.5(3.5) 30
600(272) 10.5(3.2) 45

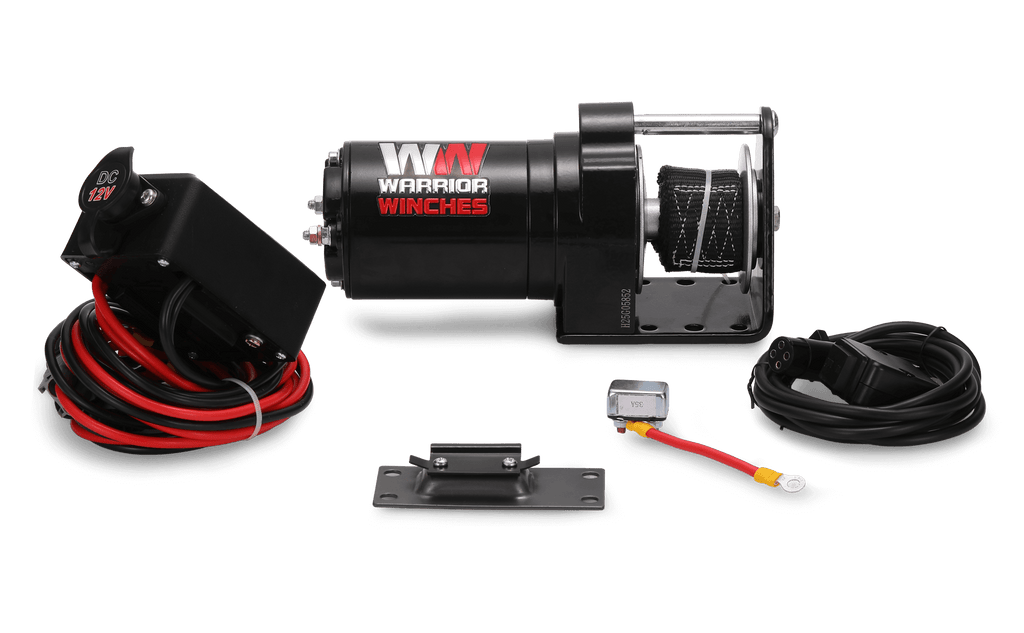

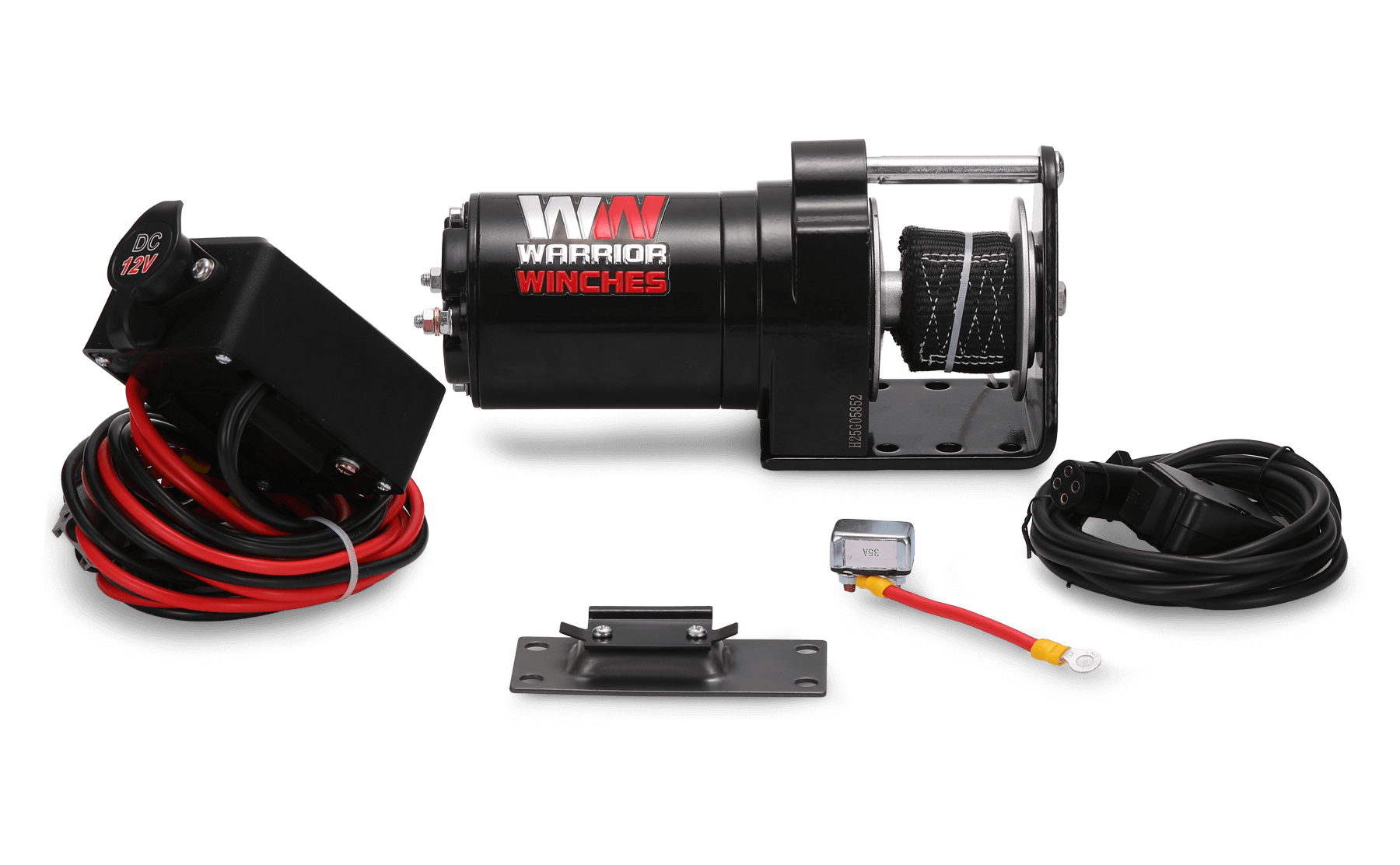

  • SP4000 Winch
  • Nylon Strap
  • Wired Remote
  • Control Box & Bracket
  • Heavy Duty Battery Leads with Quick Connector
User Manual Download
Specifications Sheet  Download
