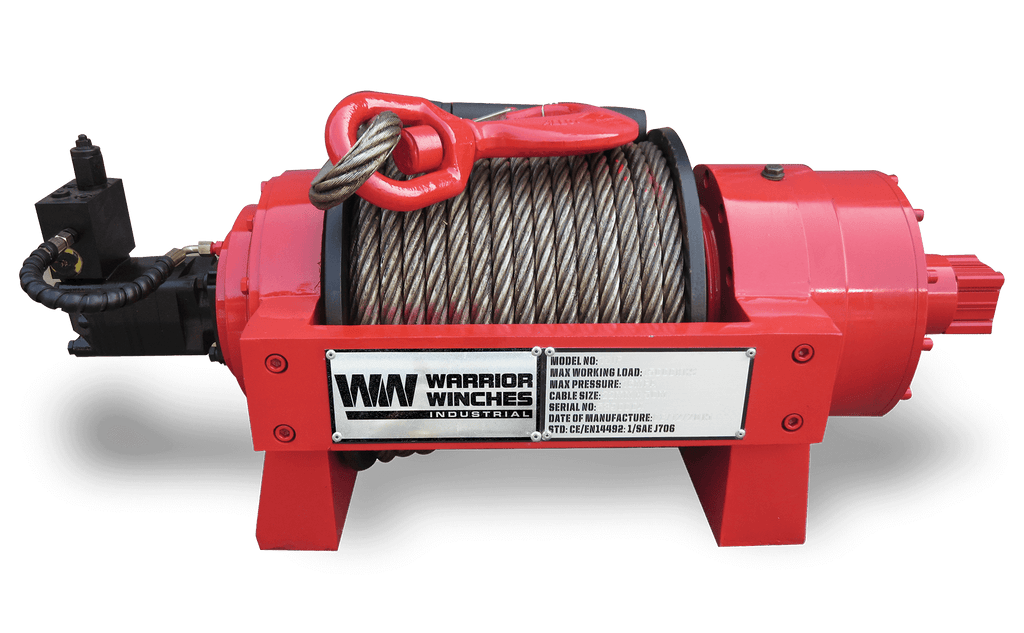

JP10 22,000lb (10 Ton) Industrial Hydraulic Winch

 0 Reviews |   1 Questions Answered
SKU: 10JP0IH-CAD

Price:
Sale price$5,499.99
Only 8 units left (Delivery in 2-7 days)


Features

  • Rugged High Torque Motor
  • 2 Stage Planetary Gearing
  • Air Operated Freespool
  • Heavy Duty Steel Cast Frame
  • Complete with Balance Valve

The complete Package. A superb heavy duty winch supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.

Rated Line Pull 22000 lbs
Gearing 39:1
Clutch Air Clutch
Braking Action Auto Hydraulic
Drum Size (Dia x L) Ø5.4 “×12.4” - 138 x 316 mm
Cable Material Steel
Cable – Dia x L Ø19/32”×157 ‘ - 15mm x 48m
Mounting Pattern 17.0 “×2.5 “ ×7.6 “ - 431 x 64 / 192 mm
Dimensions 32.7”×15.4”×12.6” - 830 x 320 x 390 mm
Weight 363.8lbs (165kg)
Certification CE



Layer of Rope/Cable Line Pull: lbs(kgs)
1 22000(9979)
2 18393(8343)
3 15802(7168)
4 13852(6283)
Line Pull
lbs (kgs)
Line Speed
ft/min (m/min)
Flow G/min (L/min) Pressure Mpa(Psi)
0 5.9(1.8) 4.0(15) 2.5(362.6)
4000 (1814) 11.8(3.6) 7.9(30) 4.2(609.1)
8000 (3629) 19.7(6.0) 13.2(50) 8.5(1232.8)
15000 (6804) 23.6(7.2) 15.9(60) 14.0(2030.5)
22000(9979) 26.9(8.2) 19.9(75) 20(2900.7)
  • JP Hydraulic Winch
  • Steel Winch Rope
  • 22 Ton Hook
  • Balance Valve
  • Tensioner
User Manual Download
Technical Drawing Download
Brochure Download
Specifications Sheet  Download
Parts list  Download

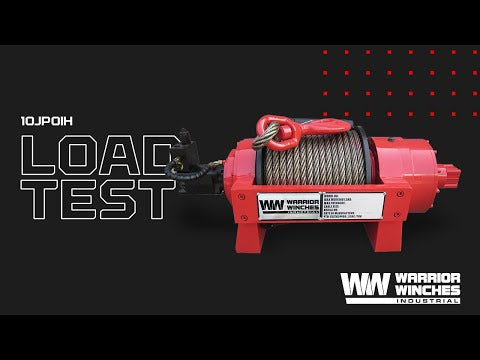

Load Test

Limited lifetime with 3 year on electrical

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

BPE Solutions North America (“seller” or BPE Solutions North America) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (3) three years (36 Months) from the original purchase provable date of purchase.

Any product BPE Solutions North America determines to be defective will be repaired or replaced at BPE Solutions North America's sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

BPE Solutions North America shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

BPE Solutions North America reserves the right to change the Product design without notice. BPE Solutions North America reserves the right to replace any part or whole unit with a newer design of the same function.

Reviews and Q&A.

  • Is there anywhere in Ontario where I can get parts for our winch model number. 10jpo1h

    Parts are available on our site under the parts tab
