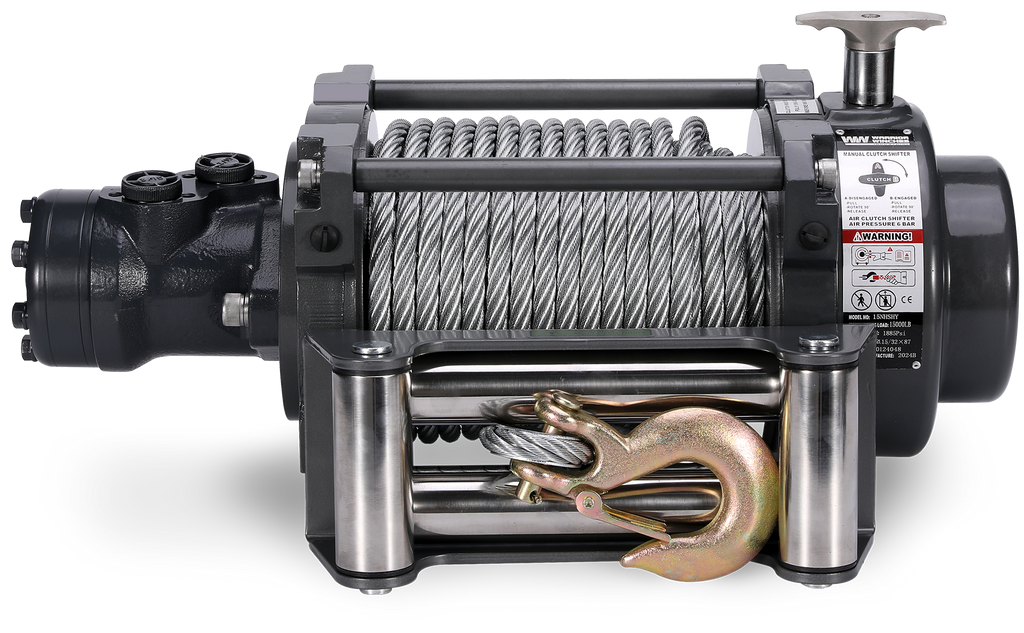

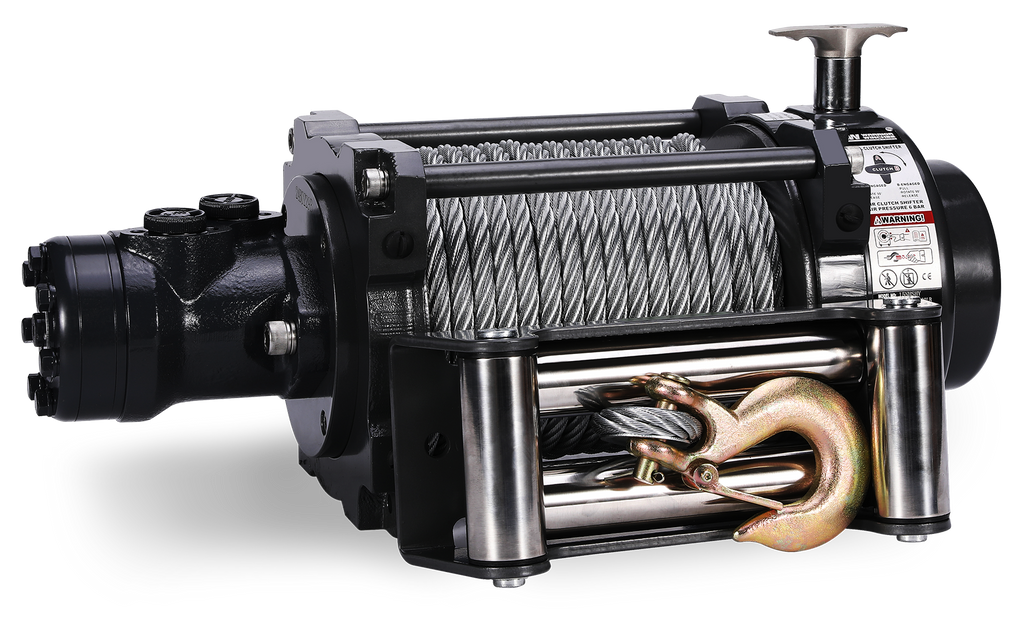

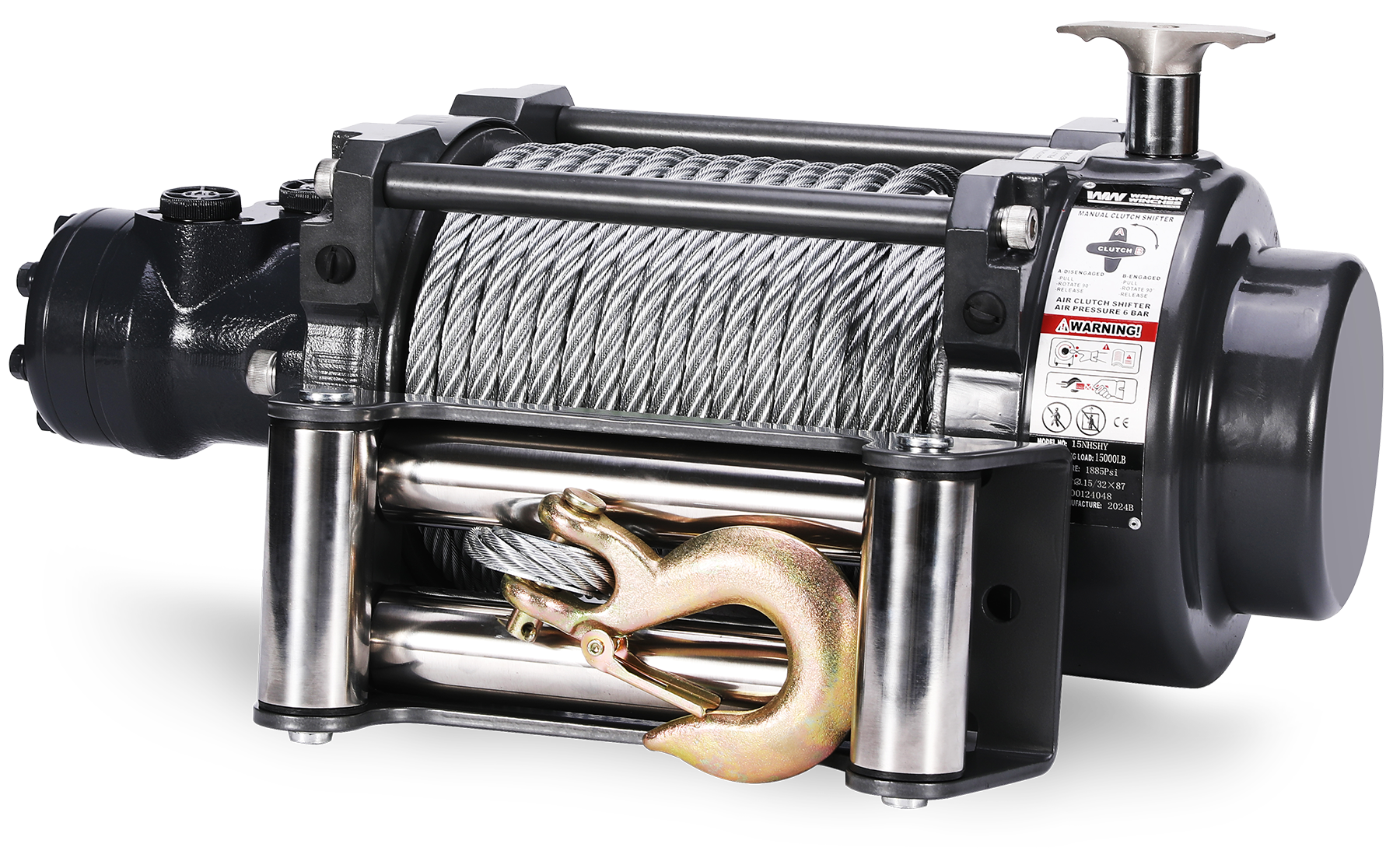

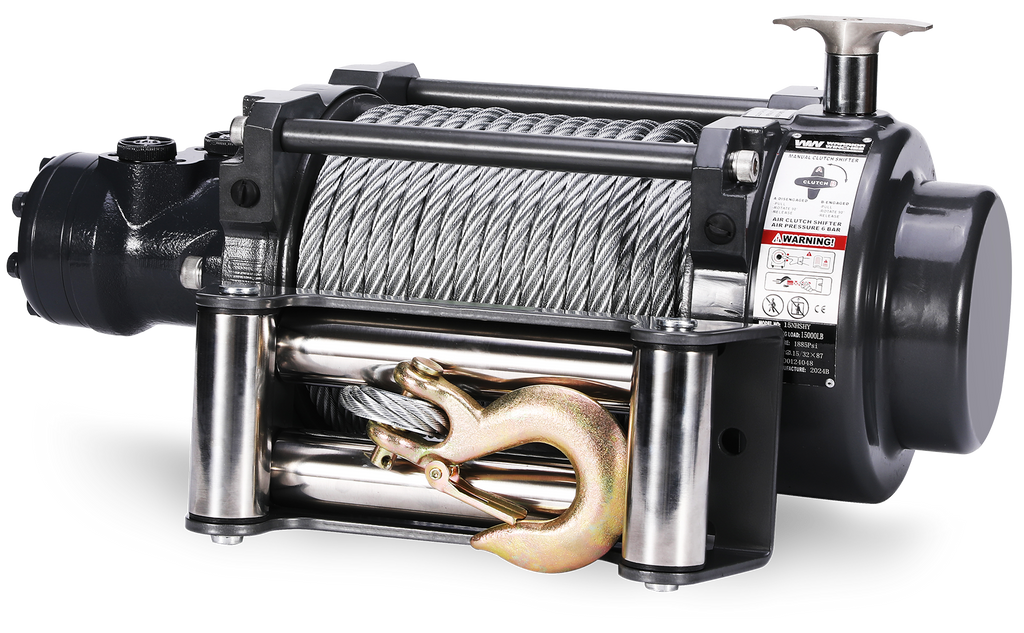

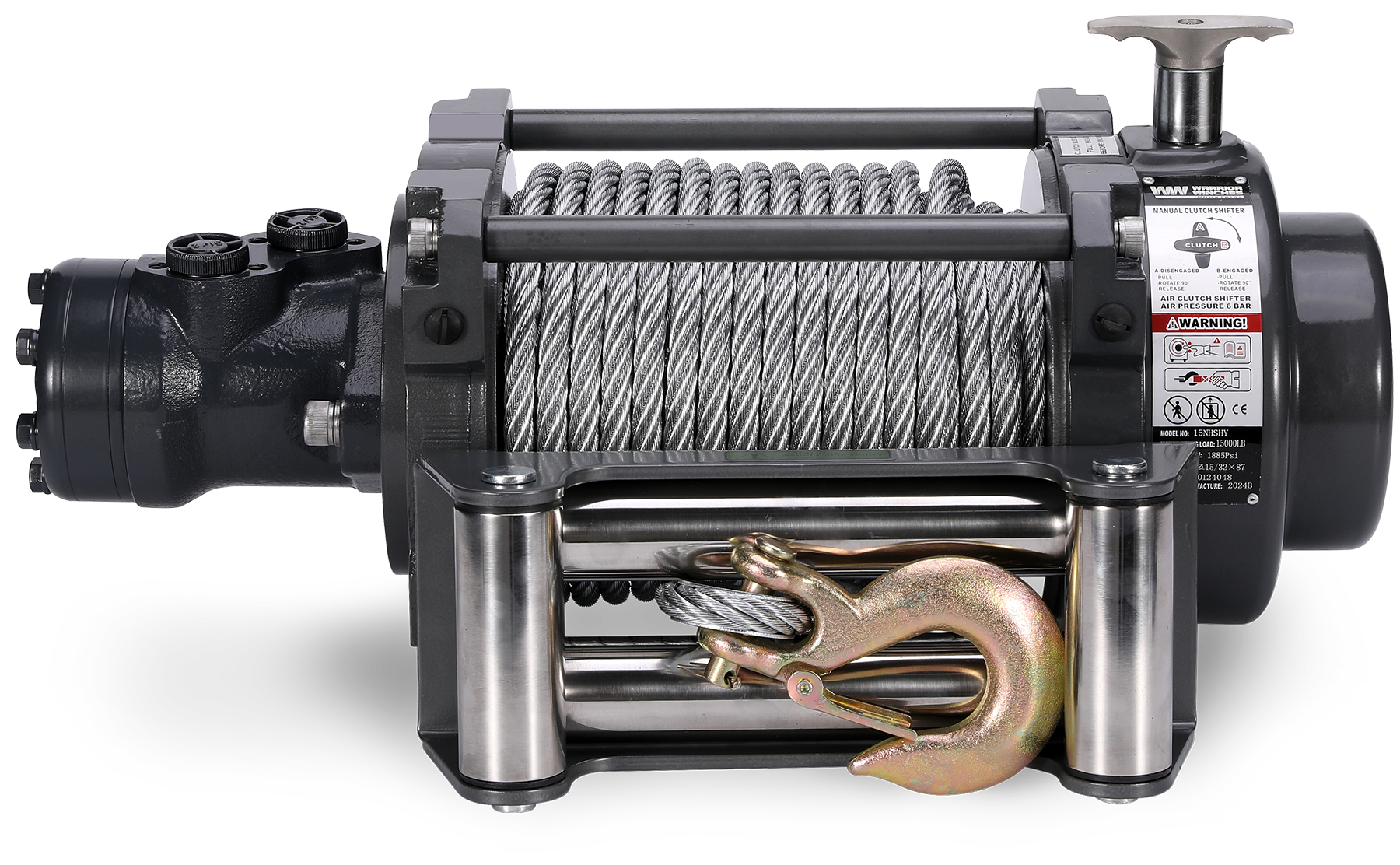

NH 15,000lb Industrial Hydraulic Winch

 0 Reviews |   1 Questions Answered
SKU: 15NHSHY-CAD

Price:
Sale price$1,499.99
In stock (Delivery in 2-7 days)

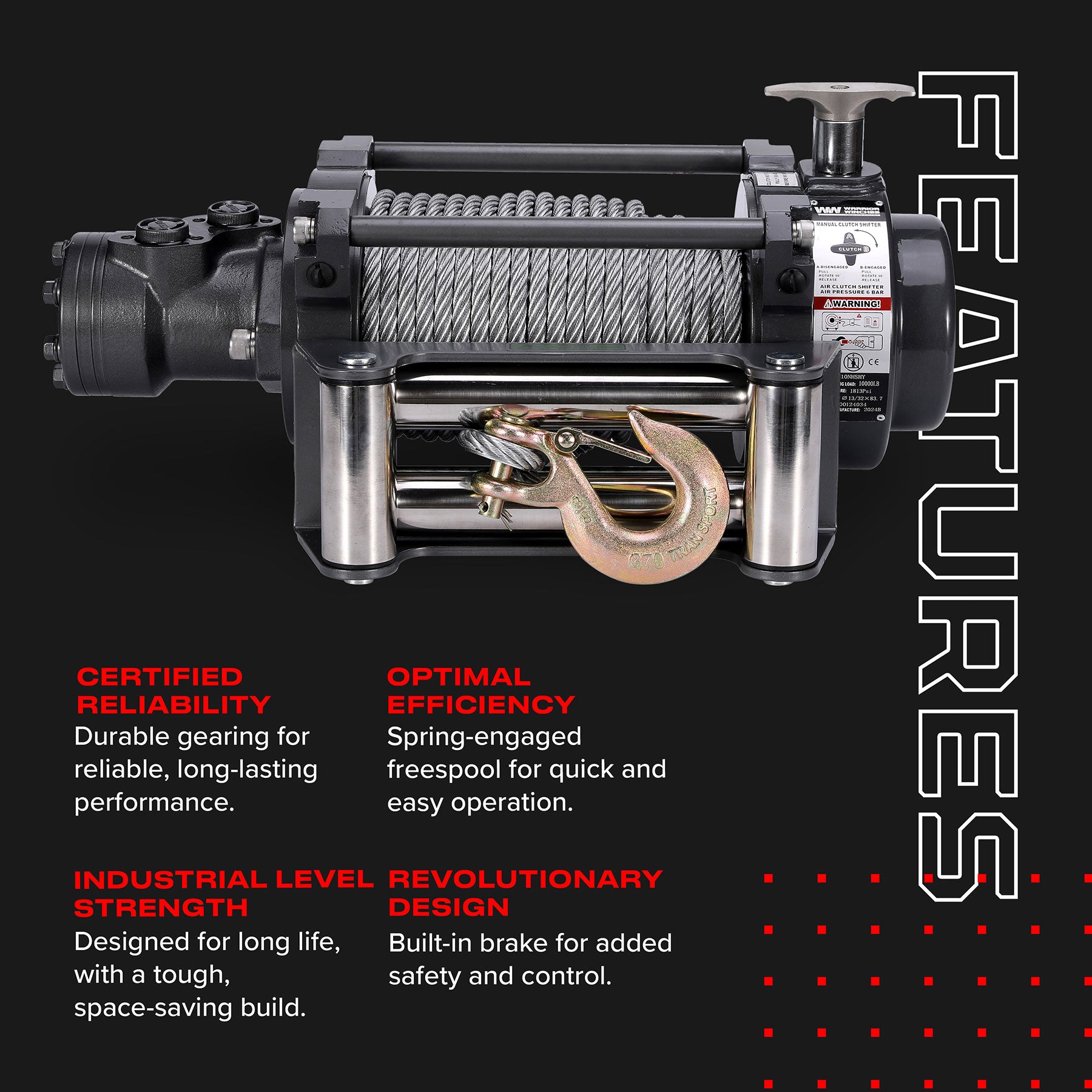

Features

  • Patented Heavy Duty Gearing
  • Integral, Automatic Failsafe Brake
  • Spring Engaged Manual Freespool
  • Stainless Steel Fairlead and Fittings
  • Rugged and compact for Long Life

Compact, tough. A hydraulic winch for industrial and commercial applications. The unique patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range. Complete with internal brake to ensure maximum control and load holding. Stainless steel roller fairleads and fittings are standard.

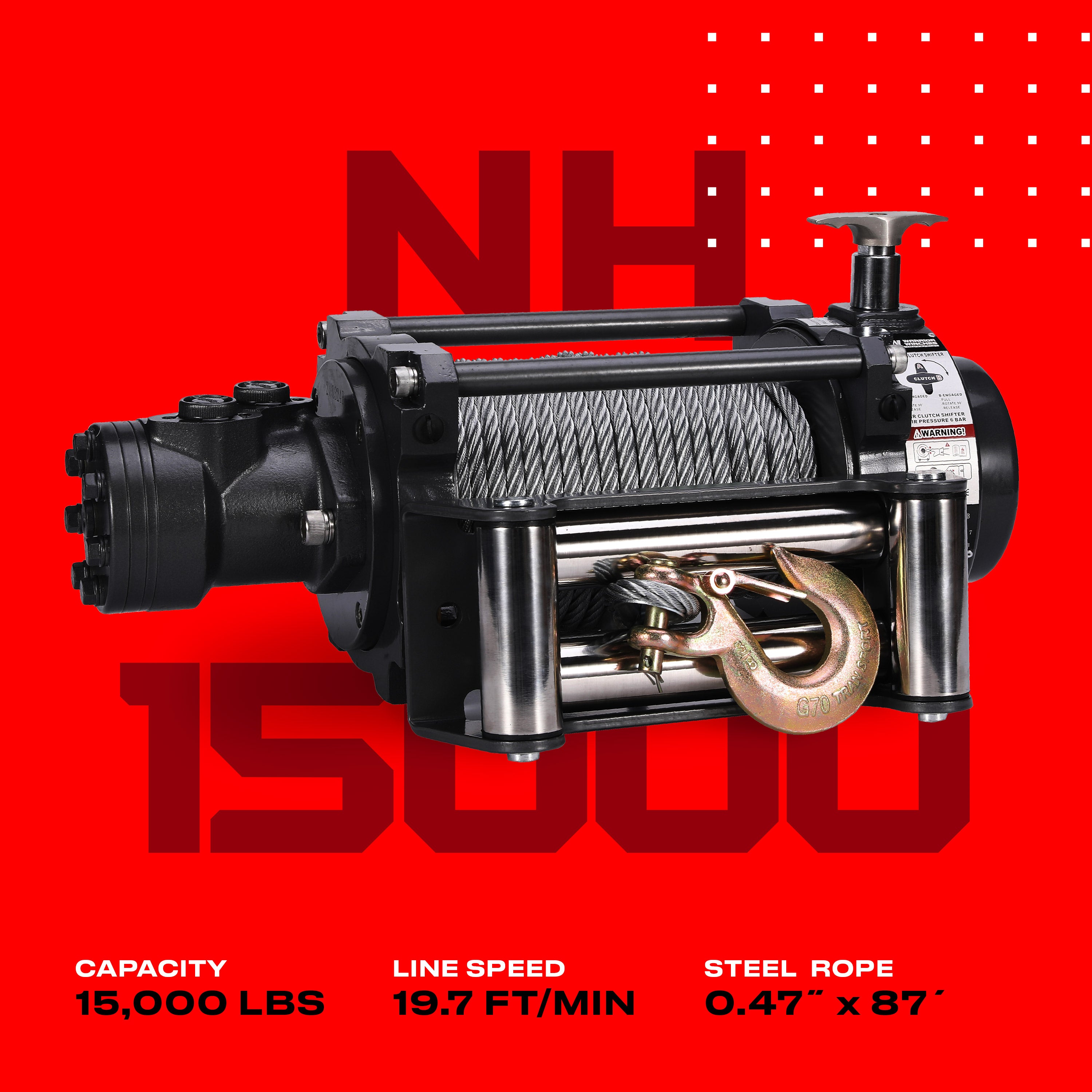

Rated Line Pull 15000 lbs (6804 kgs)
Motor Type Hydraulic 4.8 ci (80 cc)
Gearing 33.4:1
Clutch Manual
Braking Action Auto in the drum
Drum Size (Dia x L) Ø3.5 “×8.5” (Ø89mm×217mm)
Cable Material Steel
Cable – Dia x L Ø15/32”×87 ‘ (Ø12mm×26.5m)
Mounting Pattern 10 “×4.5 “ (254mm×114.3mm) 4-M12
Dimensions 21.4”×8.9”×10.3”
544mm ×226mm ×262mm
Weight lbs (kg) 152 (68.8)
Max Flow G/Min (L/Min) 11.8 (45 L/Min)
Max Pressure MPA 13Mpa
Certification CE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 15000 (6804) 18.0 (5.5)
2 12120 (5498) 41.7 (12.4)
3 10168 (4612) 65.9 (20.1)
4 8757 (3972) 86.9 (26.5)
Line Pull
lbs (kgs)
Line Speed
ft/min (m/min)
Flow
G/min (L/min)
Pressure Mpa (Psi)
0 1.6(0.5) 1.3(5.0) 2.0 (290.1)
5000 (2268) 3.3(1.0) 2.6(10.0) 4.3 (623.7)
10000 (4536) 6.6 (2.0) 5.3(20.0) 8.7 (1261.8)
12000 (5443) 9.8(3.0) 7.9(30.0) 10.0 (1450.3)
15000 (6804) 19.7(6.0) 15.9(60.0) 13.0 (1885.4)
  • NH Hydraulic Winch
  • Steel Winch Rope
  • Heavy Duty Hook
  • Heavy Duty Roller Fairlead
User Manual Download
Technical Drawing Download
Brochure Download
Specifications Sheet  Download
Parts list  Download

Load Test

Limited lifetime with 3 year on electrical

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

BPE Solutions North America (“seller” or BPE Solutions North America) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (3) three years (36 Months) from the original purchase provable date of purchase.

Any product BPE Solutions North America determines to be defective will be repaired or replaced at BPE Solutions North America's sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

BPE Solutions North America shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

BPE Solutions North America reserves the right to change the Product design without notice. BPE Solutions North America reserves the right to replace any part or whole unit with a newer design of the same function.

NH 15,000lb Industrial Hydraulic Winch Parts Image

1 Balanced Valve Assembly BAL002 Balanced Valve Assembly BAL002 Translation missing: en.part.general.sale_price $249.99
2 Hydraulic Motor C150NH0100 Hydraulic Motor C150NH0100   View
3 Casting Plate Motor C150NH0006 Casting Plate Motor C150NH0006   View
4 Winch Rope Hook CHKS038-CAD Winch Rope Hook CHKS038-CAD Translation missing: en.part.general.sale_price $29.99
5 S/Steel Roller Fairlead - RFS150-CAD S/Steel Roller Fairlead - RFS150-CAD Translation missing: en.part.general.sale_price $89.99
6 End Bearing CPG15000NH End Bearing CPG15000NH   View
7 Gearbox GBT15000NH Gearbox GBT15000NH   View
8 Clutch Assembly C100NH0600 Clutch Assembly C100NH0600   View
9 Cable Tensioner - TEN002-CAD Cable Tensioner - TEN002-CAD   View
10 15/32 15/32" x 87' Steel Cable with Hook   View

Download complete parts list

Reviews and Q&A.

  • What is the minimum psi for this winch, and is there a maximum psi that can be ran on it? I see is says max pressure 13mpa, I'm not sure what that means. What if I have a pump that is more pressure than the winch can handle?

    Line Pull
    lbs (kgs)
    Line Speed
    ft/min (m/min)
    Flow
    G/min (L/min)
    Pressure Mpa (Psi)
    0 1.6(0.5) 1.3(5.0) 2.0 (290.1)
    5000 (2268) 3.3(1.0) 2.6(10.0) 4.3 (623.7)
    10000 (4536) 6.6 (2.0) 5.3(20.0) 8.7 (1261.8)
    12000 (5443) 9.8(3.0) 7.9(30.0) 10.0 (1450.3)
    15000 (6804) 19.7(6.0) 15.9(60.0) 13.0 (1885.4)
