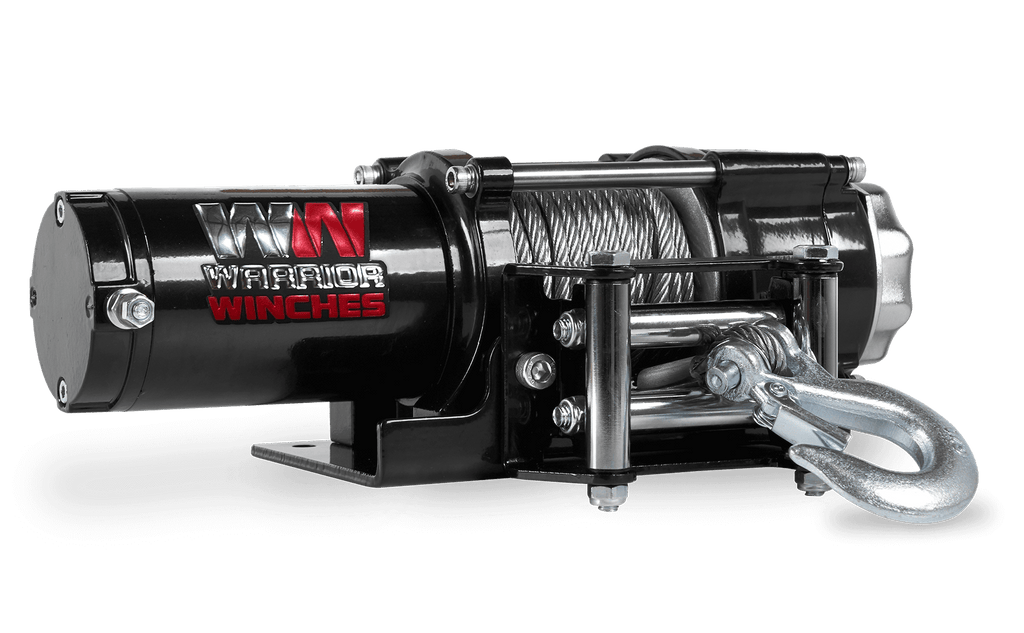

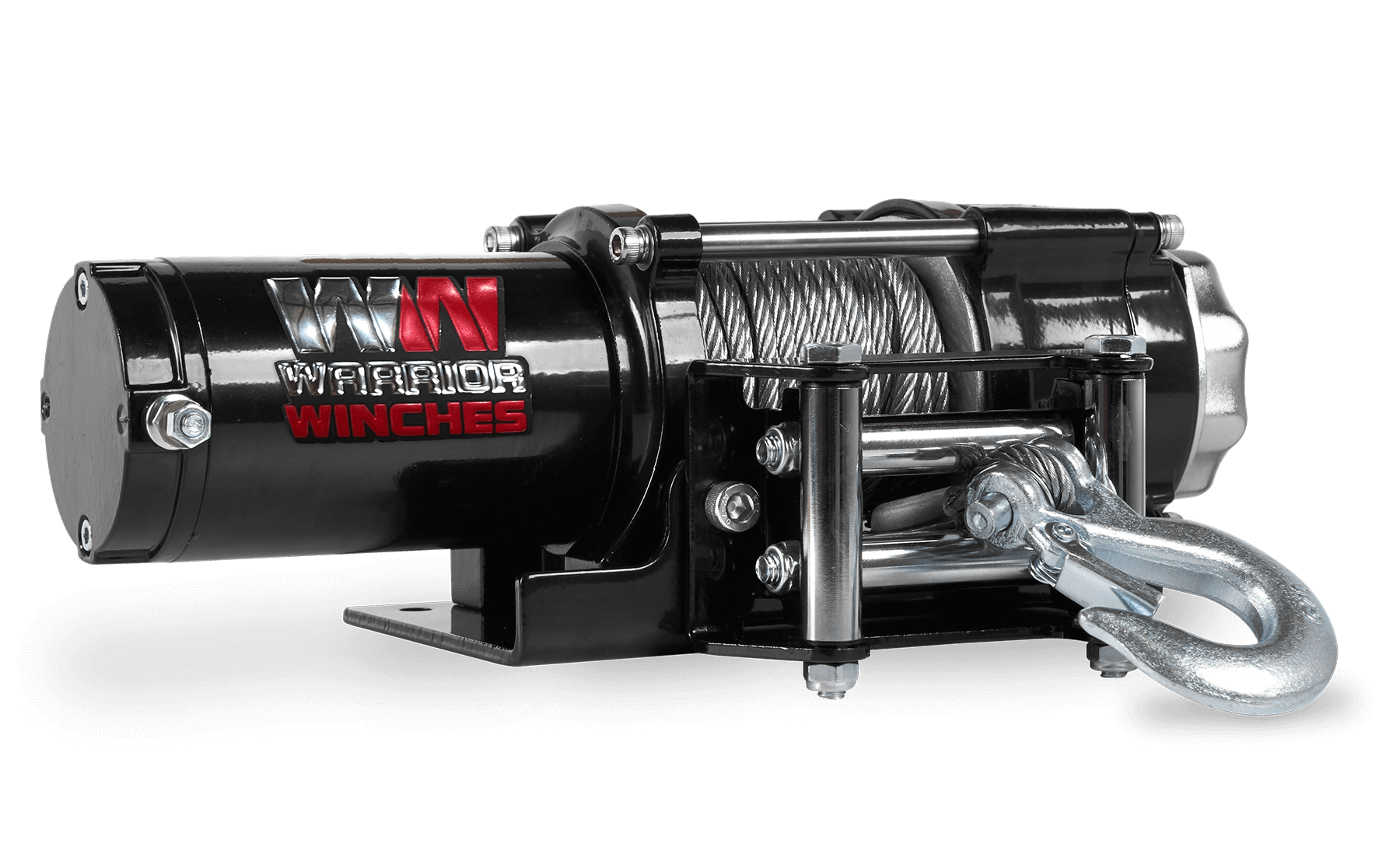

Ninja 3,500lb 12v Electric Winch - ATV

|   4 Questions Answered
SKU: 35SPS12-CAD

Voltage: 12v
Rope: Steel Rope
Price:
Sale price$179.99
In stock (Delivery in 2-7 days)

Or buy online from our approved partners:
Amazon Logo

Features

  • Sealed High Power Motor
  • Heavy Duty Watertight Contactors
  • Full Steel Planetary Gearing
  • Strengthened Steel Drum
  • Watertight Controller Socket

Ideal for large ATV's and small trailers. A huge high power motor, heavy duty clutch, heavy duty steel gearing and heavy duty waterproof contactors ensure the ultimate in performance and reliability. Strengthened Steel drum makes it ideal to use with Synthetic Rope. Watertight 4 Pin connection allows the use of 'Plug and Play' Wireless.

Mounting plate, ATV handle bar remote and 2 x wireless remotes included.

Rated Line Pull 3500 lbs (1588 kg)
Motor Type 12V: Input: 2.4kW / 3.2hp; Output: 1.0 kW / 1.3hp
Gearing 170:1
Clutch Manual
Braking Action Dynamic
Drum Size (Dia x L) Ø 1.46”×3.15” (Ø 37mm×80 mm)
Cable Material Steel or Synthetic
Cable – Dia x L Steel: Ø 7/32”×42.0’ (Ø 5.4mm×12.8m)
Synth: Ø3/15”×45.9’ (Ø 5mm×14.0m)
Mounting Pattern 3.13” (79.5 mm) 2-M8
Dimensions 13.2”×4.6”×4.4”
335mm×116mm×112mm
Net Weight lbs (kgs) Steel: 22.0 (10.0)
Synthetic: 18 (8.2)
Certification CE



Layer of Rope/Cable Line Pull: lbs(kgs)
1 3500 (1588)
2 2789 (1265)
3 2319 (1052)
4 1984 (900)
5 1733 (786)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 10.5 (3.2) 45
1000 (454) 8.9 (2.7) 75
2000 (907) 7.5 (2.3) 130
3500 (1588) 4.6 (1.4) 200
  • Ninja Winch
  • Fairlead
  • Steel Rope OR Synthetic Rope
  • Heavy Duty Battery Leads
  • 2 x Wireless Remotes
  • ATV Wired Remote
  • 1/4 Hook
  • 2 Tonne Pulley Block
  • Mounting Plate
  • Mounting Hardware
User Manual Download
Technical Drawing Download
Brochure Download
Specifications Sheet ( 35SPS12-CAD ) Download
Specifications Sheet ( 35SPA12-CAD ) Download
Parts list ( 35SPS12-CAD ) Download
Parts list ( 35SPS12-CAD ) Download

Video

Load Test

Limited lifetime with 3 year on electrical

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

BPE Solutions North America (“seller” or BPE Solutions North America) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (3) three years (36 Months) from the original purchase provable date of purchase.

Any product BPE Solutions North America determines to be defective will be repaired or replaced at BPE Solutions North America's sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

BPE Solutions North America shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

BPE Solutions North America reserves the right to change the Product design without notice. BPE Solutions North America reserves the right to replace any part or whole unit with a newer design of the same function.

Reviews and Q&A.

  • Hello, can I install it both ways with the engine on the right or left side or I can only install it one way? Can I reverse the engine position?

    Thank you for your question!

    The motor must always be on the left.

  • Will this winch fit my Honda foreman Rubicon 520 4/5 2023

    Hello,

    Thanks for messaging.

    Here are the dimensions of the winch 335mm×116mm×112mm

    Hope this helps!

    Thanks

    James

  • Please you confirm the length of synthetic rope on the 35SPA12-CAD

    3/15 in × 45.9 ft (5mm × 14.0m)

  • Does this winch power both in and out?

    Thanks for the question!

    The winch does power both in and out.
