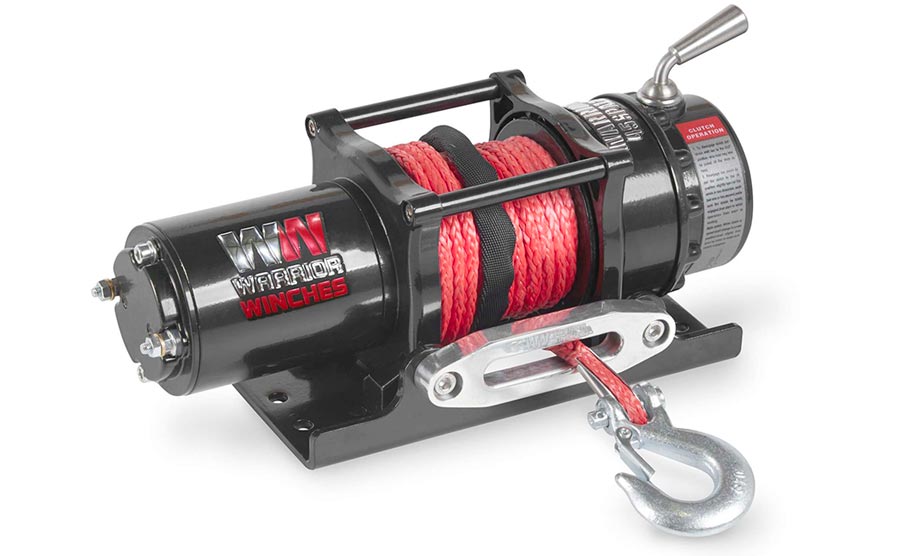

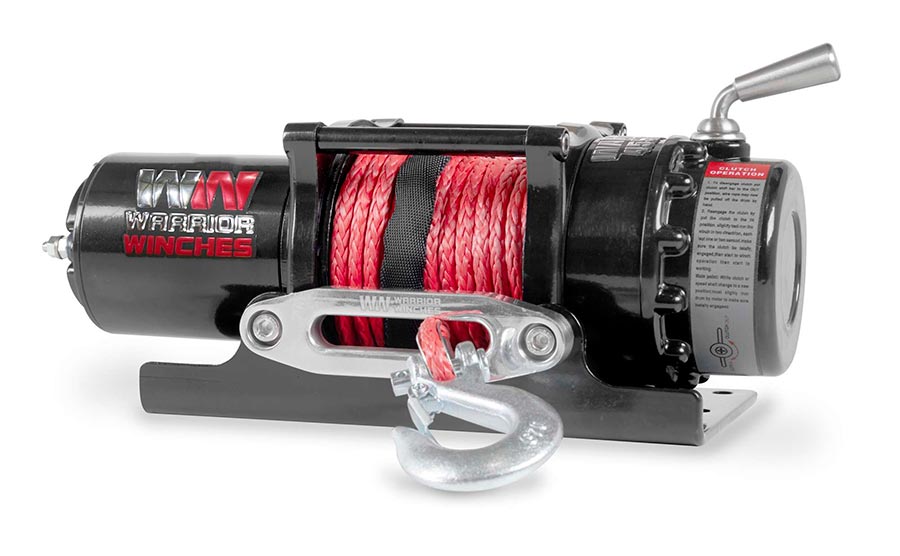

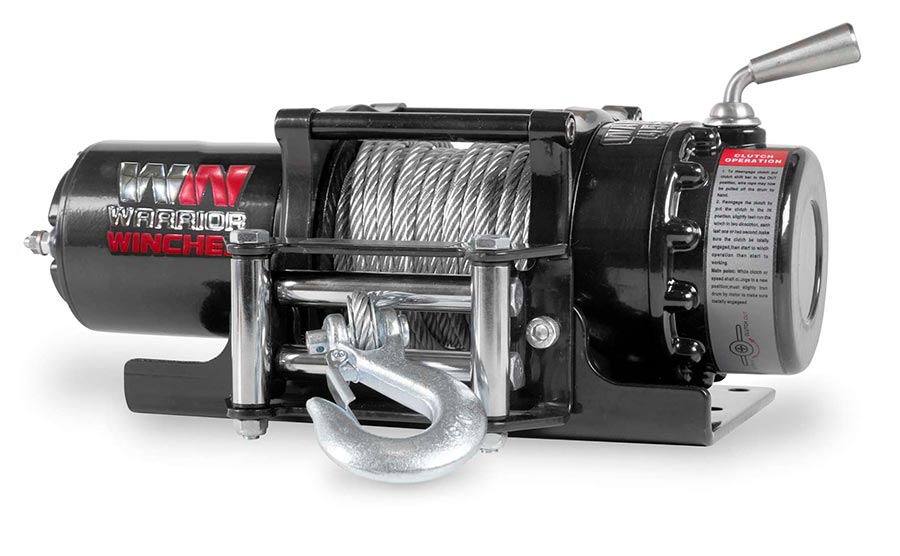

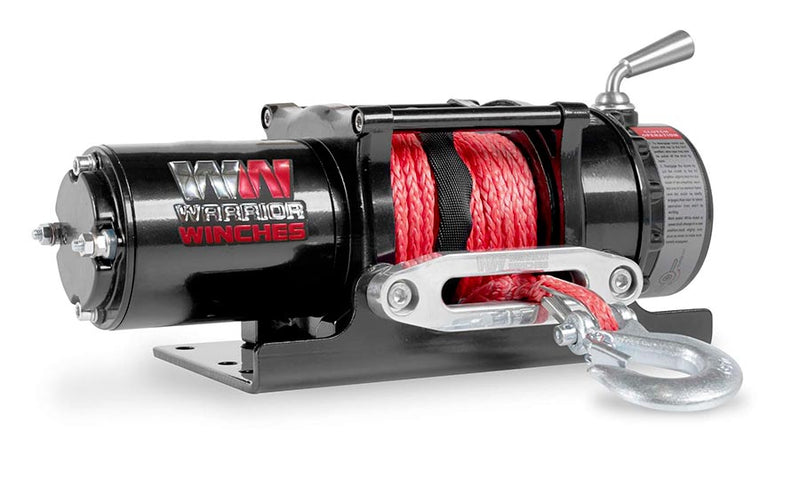

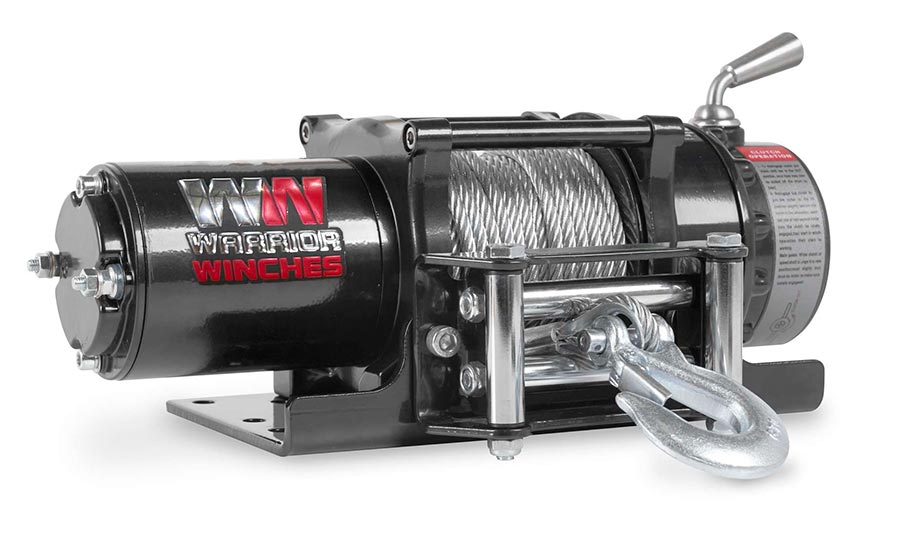

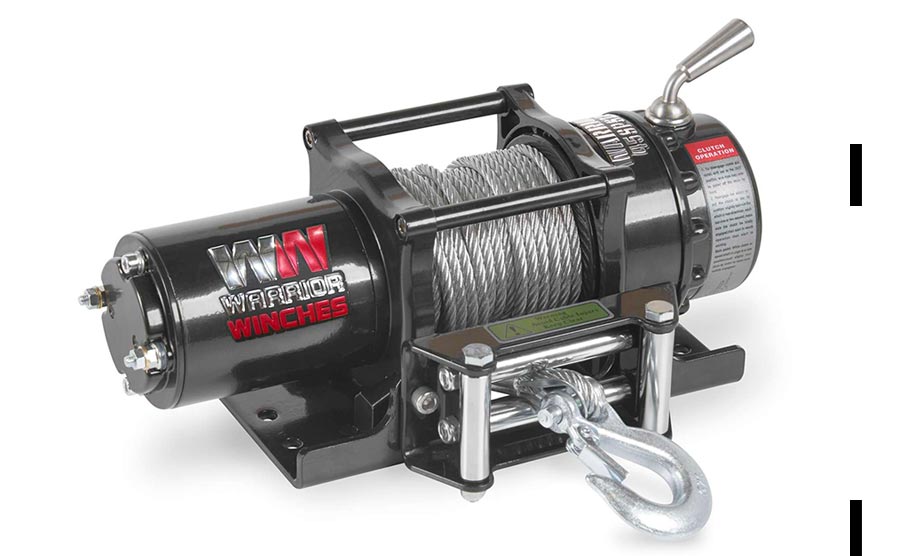

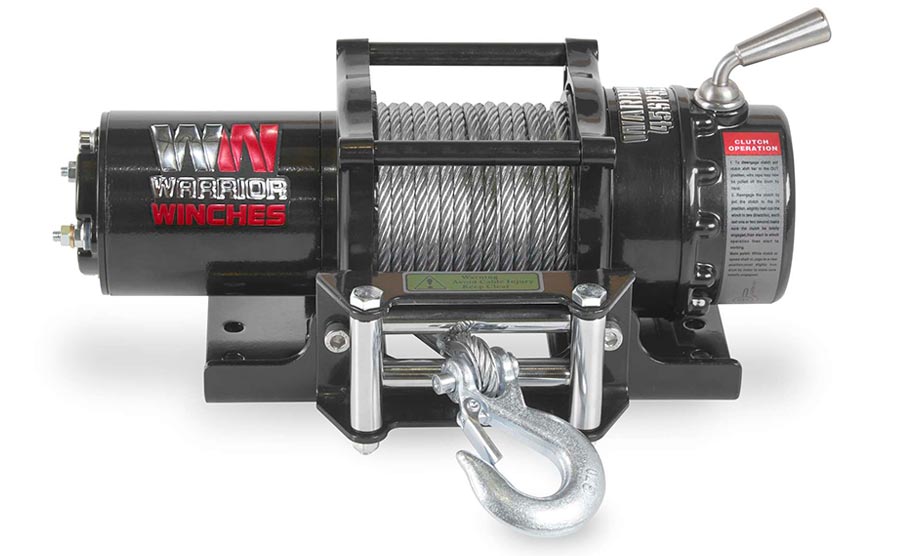

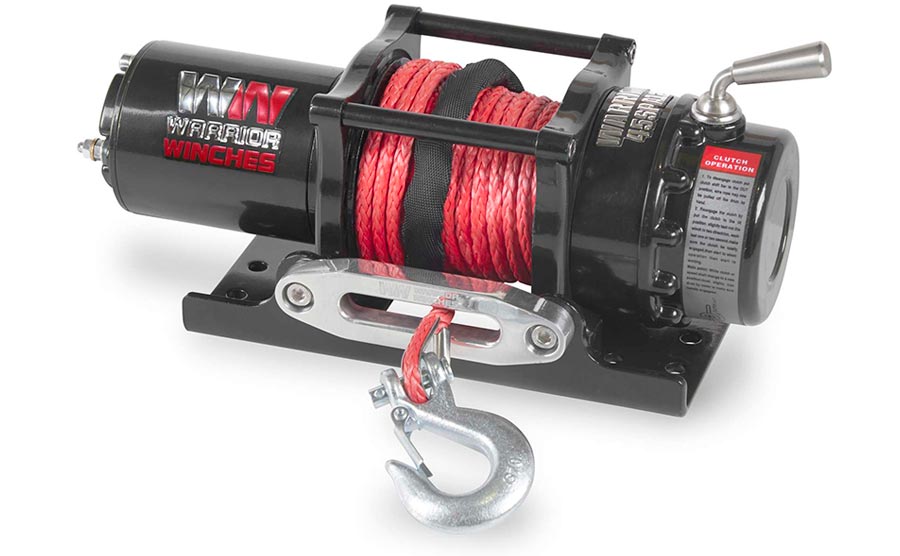

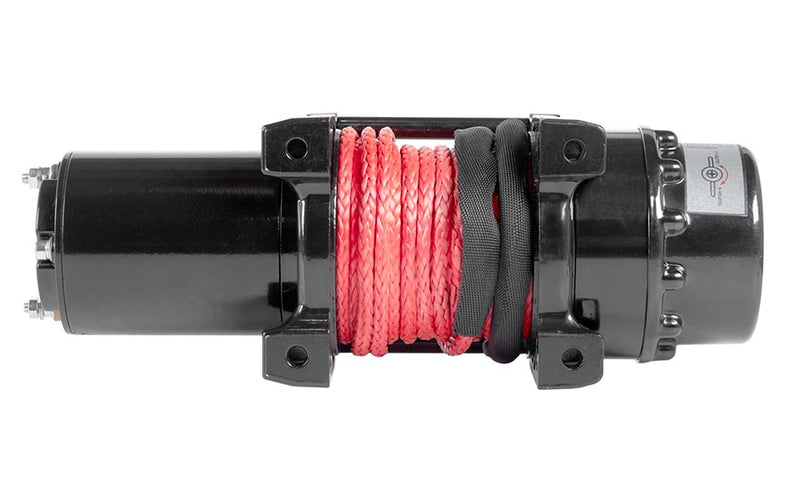

Ninja 4,500lb 12v Electric Winch - ATV/UTV

|   2 Questions Answered

Voltage: 12v
Rope: Steel Rope
Sale price$259.99
In stock (Delivery in 2-7 days)

Or buy online from our approved partners:
Amazon Logo


  • Power in and Power out
  • High Torque Motor
  • HD Waterproof Contactors
  • Full Steel Planetary Gearing
  • Full Load Holding Break

High quality three stage planetary gearing ensure this is one of the quietest and smoothest winches on the market. The silky smooth performance and the full load holding brake make it the perfect solution for high spec applications. The new Ninja features include a new 4 pin Air Socket and redesigned solenoid control pack.

Mounting plate, ATV handle bar remote and 2 x wireless remotes included.



Rated Line Pull 4500 lbs (2041 kgs)
Motor Type 12V:Input: 2.4 kW/ 3.2hp; Output: 1.0 kW/ 1.3hp
Gearing 172:1
Clutch Manual
Braking Action Auto in the drum
Drum Size (Dia x L) Ø1.77”×3.7” (Ø 45mm×93 mm)
Cable Material Steel or Synthetic
Cable – Dia x L Steel: Ø15/64”×47.6’ (Ø 6.0mm×14.5m)
Synth: Ø15/64”×49.2’ (Ø 6.0mm×15m)
Mounting Pattern 5.1”×3.78” ( 129mm×96 mm) 4-M8
Dimensions 14.9”×5.0”×6.5”
Net Weight lbs (kgs) Steel: 28.7 (13.0)
Synth: 23.1 (10.5)
Certification CE


Layer of Rope/Cable Line Pull: lbs(kgs)
1 4500 (2041)
2 3642 (1652)
3 3060 (1388)
4 2638 (1196)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
0 11.6 (3.6) 20
1500 (680) 9.2 (2.8) 70
2500 (1134) 7.8 (2.4) 100
3500 (1587) 6.6 (2.0) 140
4500 (2041) 4.9 (1.5) 200
  • Ninja Winch
  • Fairlead
  • Steel Rope OR Synthetic Rope
  • Heavy Duty Battery Leads
  • 2 x Wireless Remotes
  • ATV Wired Remote
  • 2 Tonne Pulley Block
  • 1/4 Hook
  • Mounting Plate
  • Mounting Hardware
User Manual Download
Technical Drawing Download
Brochure Download
Specifications Sheet ( 45SPA12-CAD ) Download
Specifications Sheet ( 45SPS12-CAD ) Download
Parts list ( 45SPA12-CAD ) Download
Parts list ( 45SPS12-CAD ) Download

Load Test

Limited lifetime with 3 year on electrical

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

BPE Solutions North America (“seller” or BPE Solutions North America) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (3) three years (36 Months) from the original purchase provable date of purchase.

Any product BPE Solutions North America determines to be defective will be repaired or replaced at BPE Solutions North America's sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

BPE Solutions North America shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

BPE Solutions North America reserves the right to change the Product design without notice. BPE Solutions North America reserves the right to replace any part or whole unit with a newer design of the same function.

Reviews and Q&A.

  • What is the IP rating of the winch?

    The 4500 does not have an IP rating - it is simply specced as Weatherproof.

  • Can I get a Wireless controls for this winch?


    We have a range of wireless controls on the website suited to this model.
