YP9 20,000lb (9 Ton) Industrial Hydraulic Winch

 0 Reviews |  Ask a Question SKU: 20YPSHY-CAD

Price:
Sale price$5,399.99
Sold out
You may also like:

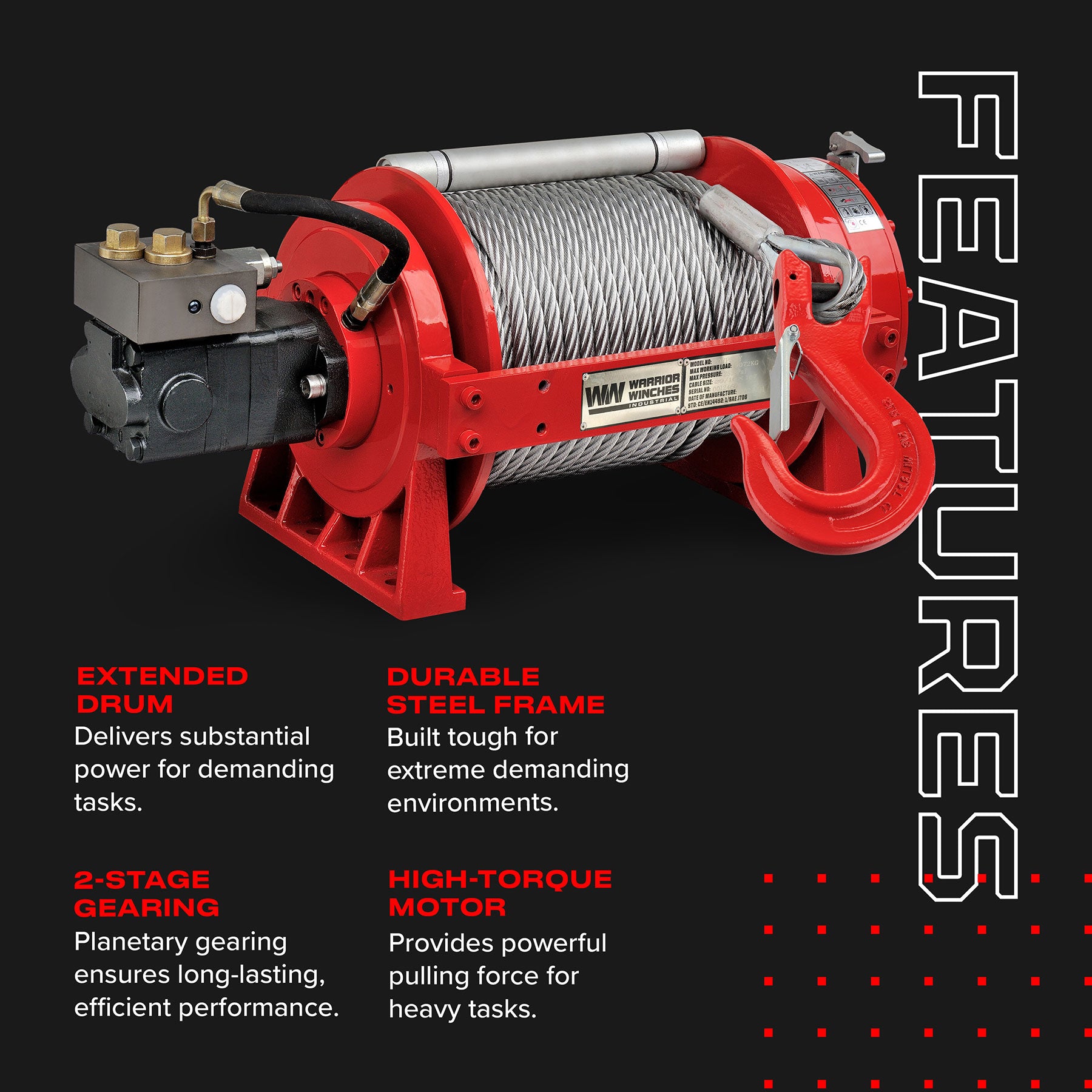

Features

  • Extended drum to accommodate extra rope length
  • Rugged heavy duty steel frame.
  • High strength 2 stage planetary gearing for long life
  • High torque motor
  • Compact design for easy mounting options
  • Manual clutch

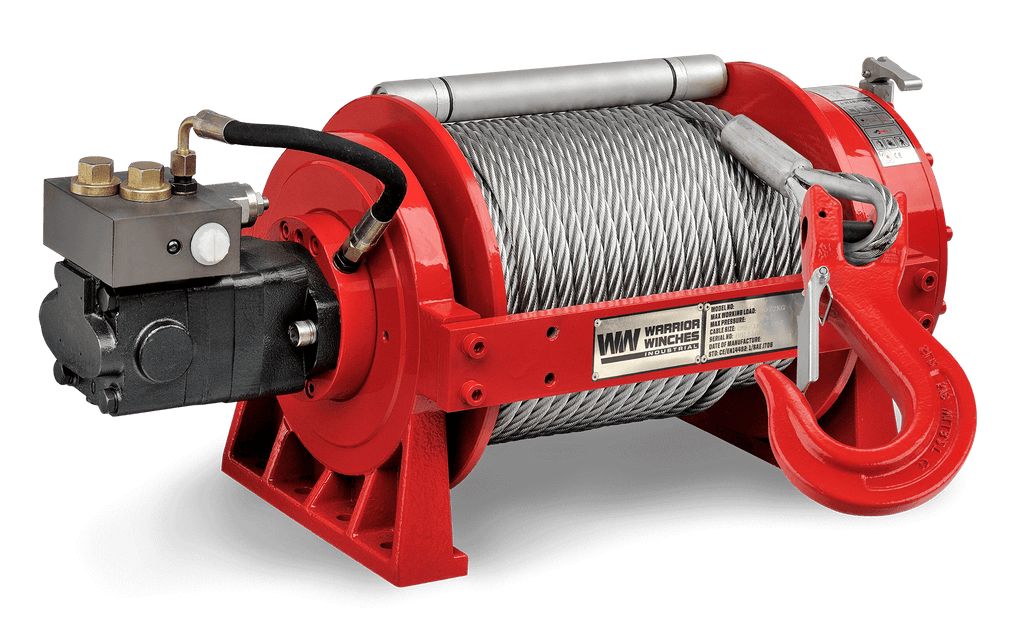

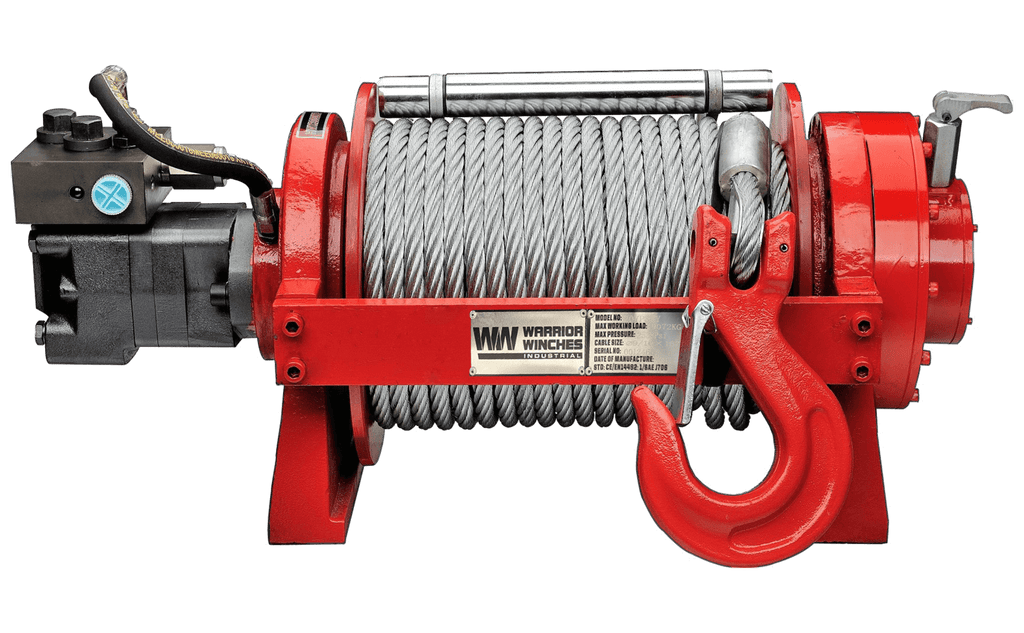

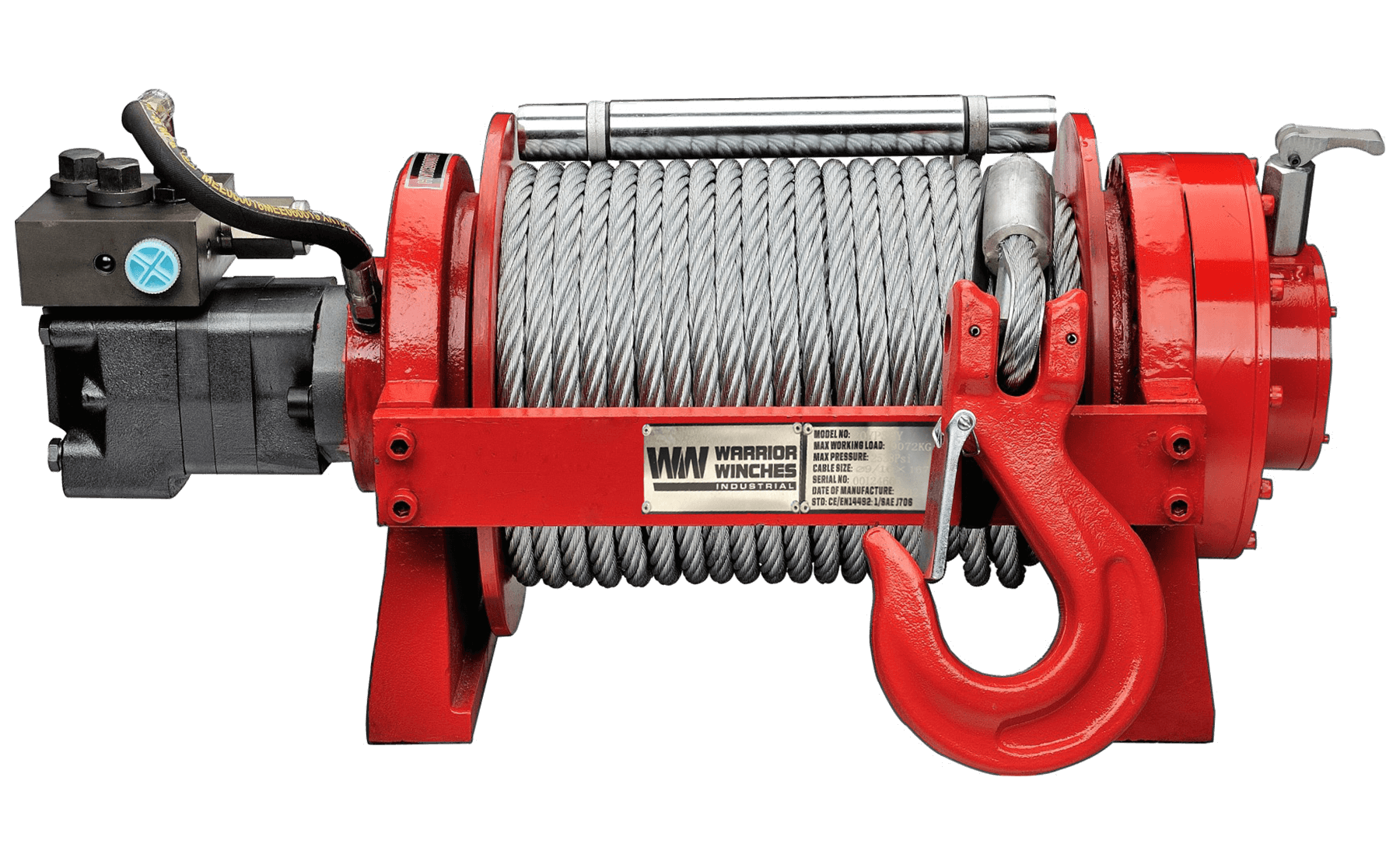

A robust hydraulic winch with 20000 lbs pulling power with an extended drum to accommodate extra rope length. Supplied complete with 9/16in x 164ft steel cable, balance valve and rope tensioner. Key features comprise precise two-stage planetary gearing, heavy duty steel frame and a sturdy high-torque motor.

The YP9 20000 lb. Industrial Hydraulic Winch is ideal for a variety of uses including trailers, roll back carriers, skid steer and construction machinery and any other application where a heavy-duty hydraulic winch with extra rope capacity is needed.

Rated Line Pull 20000 lbs
Gearing 39:1
Braking Action Wet-type Hydraulic

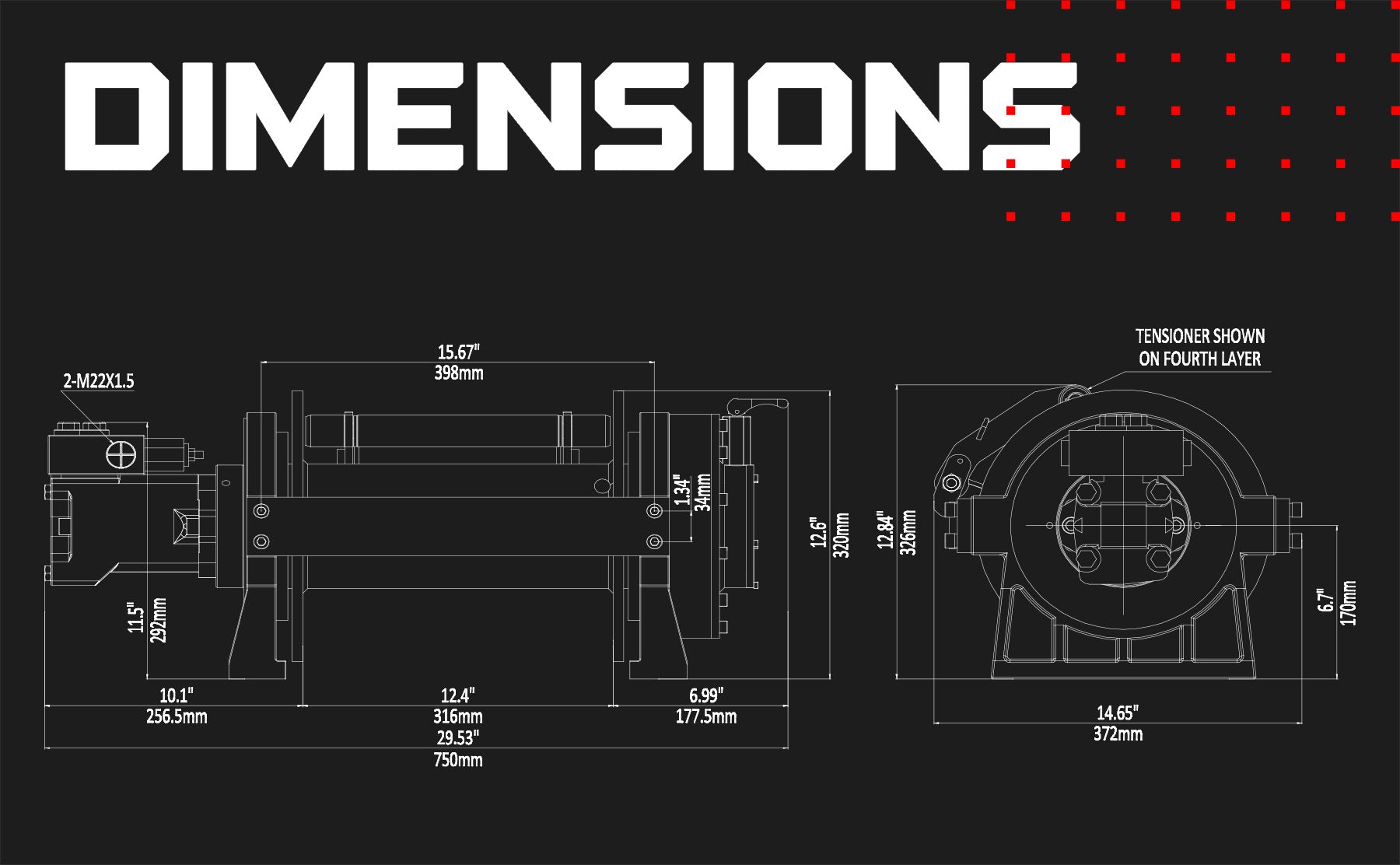

Drum Size (Dia x L) Ø5.4" × 12.49" (Ø138mm×316mm)
Cable Material Steel
Cable – Dia x L Ø9/16" × 164 FT (Ø14mm × 50m)
Mounting Pattern 17.0 × 2.5 × 7.6"
(431 × 64 × 192mm)
8-M14
Dimensions 29.5 × 14.6 ×12.6"
(750 × 372 × 320mm)
Weight 247 LBS (112 kg)
Max Flow G/Min (L/Min) 19.8 (75 L/Min)
Max Pressure MPA 17.5
Certification CE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 20000 (9072) 33.8 (10.3)
2 16889 (7661) 71.5 (21.8)
3 14615 (6629) 116.4 (35.5)
4 12881 (5843) 164 (50.0)

Line pull lbs (kgs) Pressure Mpa(Psi)
0 2.5 (362.6)
4000 (1814) 4.2 (609.1)
8000 (3629) 8.5 (1232.8)
15000 (6804) 14.0 (2030.5)
20000 (9072)  17.5 (2538.1)

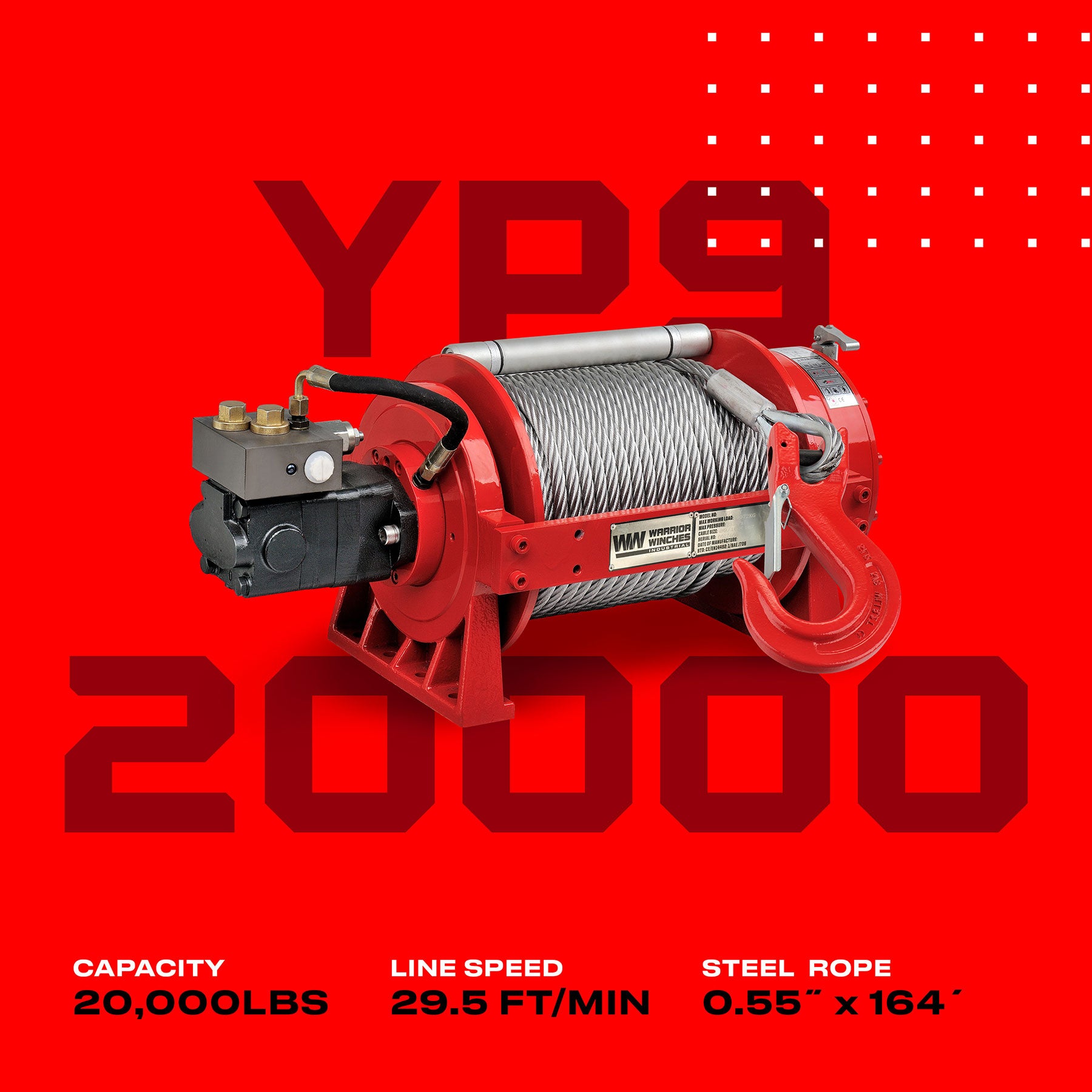

Flow G/min (L/min) Line speed ft/min(m/min)
4.0 (15) 5.9 (1.8)
7.9 (30) 11.8 (3.6)
13.2 (50) 19.7 (6.0)
15.9 (60) 23.6 (7.2)
19.9 (75) 29.5(9.0)
  • YP Hydraulic Winch
  • Steel Rope
  • Rope Tensioner
  • Balance Valve
  • Manual
User Manual Download
Brochure Download
Specifications Sheet  Download
Parts list  Download

Limited lifetime with 5 year on electrical

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

BPE Solutions North America (“seller” or BPE Solutions North America) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (5) five years (60 Months)* from the original purchase provable date of purchase.

    Any product BPE Solutions North America determines to be defective will be repaired or replaced at BPE Solutions North America's sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

    All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

    Register your winch here

    To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

    The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

    This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

    This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

    BPE Solutions North America shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

    BPE Solutions North America reserves the right to change the Product design without notice. BPE Solutions North America reserves the right to replace any part or whole unit with a newer design of the same function.
