10FT2S12-CAD

Gladiator V2 F-Type 10,000 Electric Winch - 12v Steel Rope

Warranty: 7 Years
$859.99
Delivery in 2-7 days
Buy now, pay later options available at checkout
American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
Shipped from USA with expert support when you need it.

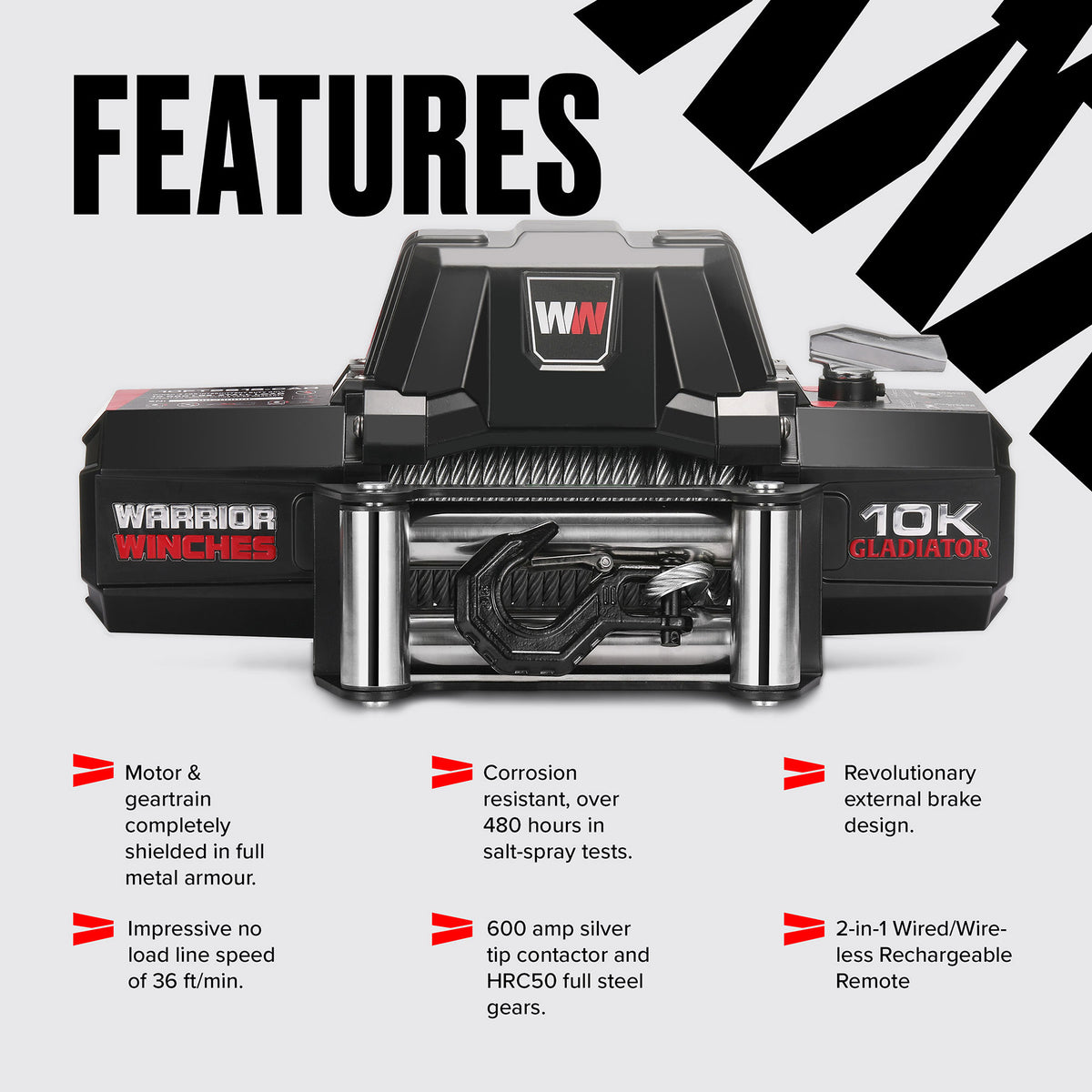

Features

  • Ready for Whatever the Trail Throws at You: Full metal armor, an aluminum control pack cover and stainless steel hardware help protect critical components from harsh conditions.

  • Less Spooling, More Recovery: Up to 36 ft/min no-load line speed helps you recover the steel rope quickly between pulls.
  • Stay Cool When the Recovery Gets Heavy: The external brake design helps manage heat around the drum, supporting reliable braking performance during demanding pulls.
  • Keep the Powerhouse Protected: Thermal overload protection helps protect the motor from excessive heat, while the 600A Silver Tip contactor helps deliver efficient electrical performance.
  • Stay Back. Stay in Control: The 2-in-1 rechargeable wired and wireless remote lets you operate the winch from up to 50 feet away.

The Gladiator V2 F-Type 10,000lb Electric Winch delivers premium recovery performance for those who demand serious pulling power and uncompromising durability. As part of Warrior Winches' premium Gladiator range, it combines a powerful 12V motor with heavy-duty steel rope, precision planetary gearing, advanced braking technology, and rugged all-weather protection. Built for serious off-road enthusiasts, truck and Jeep owners, and demanding recovery applications, the Gladiator is engineered to perform when the terrain gets tough.

10,000lb of Premium Pulling Power
With a 10,000lb rated line pull and a powerful 6.1hp motor, the Gladiator V2 F-Type delivers the strength needed for demanding vehicle recoveries. Its 196:1 planetary gear system provides controlled, dependable pulling performance, while a no-load line speed of up to 36 ft/min helps make recovery operations faster and more efficient.

Heavy-Duty Steel Rope for Tough Recoveries
The 85.3ft steel rope is built to handle demanding recovery work, delivering the strength and durability expected from a premium winch. The included roller fairlead helps guide the rope smoothly onto the drum while reducing unnecessary wear during repeated pulls.

Premium Construction. Built for the Elements
The Gladiator V2 F-Type is engineered for demanding environments. Full metal armor protects the motor and geartrain, while an aluminum control pack cover and stainless steel hardware add durability and corrosion resistance. IP68 waterproof protection and over 480 hours of corrosion resistance help protect the winch through mud, water, dust, and harsh weather.

Advanced External Brake Design
The patented external brake design helps reduce heat and wear around the drum, helping protect the steel rope and extend its service life. By managing heat more effectively during demanding pulls, the system provides reliable braking performance when you need precise control.

Surplus Power with Built-In Protection
The 600A Silver Tip contactor provides efficient electrical performance, while thermal overload protection helps prevent motor damage caused by excessive heat. Together, these systems help protect the winch during extended or demanding recovery operations.

Wireless Control for Easier Recoveries
The 2-in-1 rechargeable wired and wireless remote gives you flexible control while allowing operation from up to 50 feet away. USB charging keeps the remote convenient and ready for use, while wireless operation lets you maintain a safer position around the vehicle during recovery.

Fit It Your Way
The included control box relocation plate gives you more freedom when installing your Gladiator F-Type. Relocate the control box to suit your vehicle and available mounting space, helping create a cleaner, more practical installation without compromising the winch's premium setup.

Premium Warrior Performance, Backed by 7 Years
The Gladiator V2 F-Type 10,000lb is built for those who expect premium construction, powerful performance, and dependable recovery capability. With heavy-duty steel rope, advanced braking technology, IP68 protection, and a 7-year warranty, the Gladiator gives you the confidence to take on demanding recoveries wherever the trail or worksite leads.

Rated Line Pull 10000 lbs
Motor Type 12V: Input: 4.6kw/6.1hp; Output: 2.2kw/3.0hp
Rated Volt 12v
Clutch Manual
Gearing 196:1
Gearing System Planetary
Braking Action Patented ratchet
Drum Size (Diameter x Length) 2.48 x 8.54 in
Controls 2in1 Rechargeable Wired/Wireless Remote
Cable Material Steel
Cable Size (Diameter x Length) 0.36 in x 85 ft
Find replacement Armortek Synthetic Rope
Fairlead Roller
Mounting Pattern 10 x 4.5 in (4-M10)

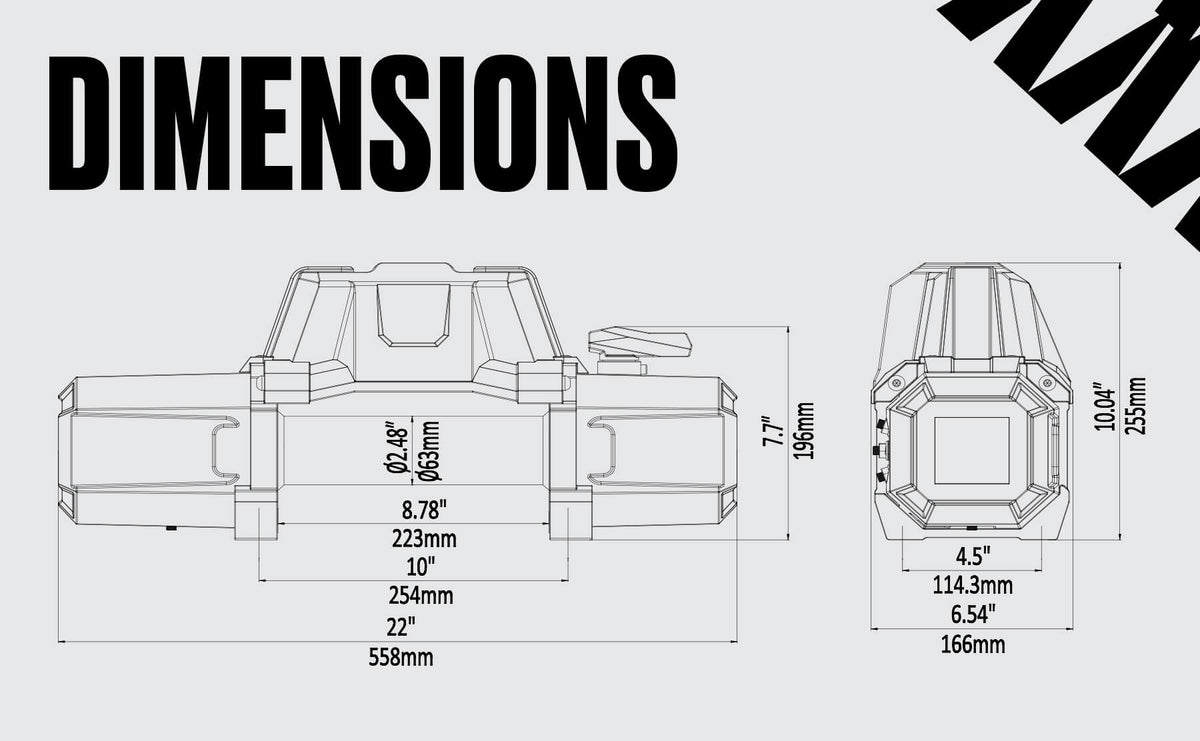

Dimensions (LWH) 21.97 x 6.54 x 10.04 in
Weight 88 lbs
Warranty 7 Year
Waterproof Rating (IP) 68



Layer of Rope/Cable Line Pull: lbs (kgs) Rope on drum ft(m)
1 10000 (4536)18 (5.5)
2 7900 (3583)39.4 (12)
3 6600 (2993)64 (19.5)
4 5600 (2540)85.3 (26)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 36 (11.0) 50
3000 (1360) 15.4 (4.7) 150
6000 (2722) 10.5 (3.2) 260
8000 (3629) 8.2 (2.5) 300
10000 (4536) 6.5 (2.0) 355

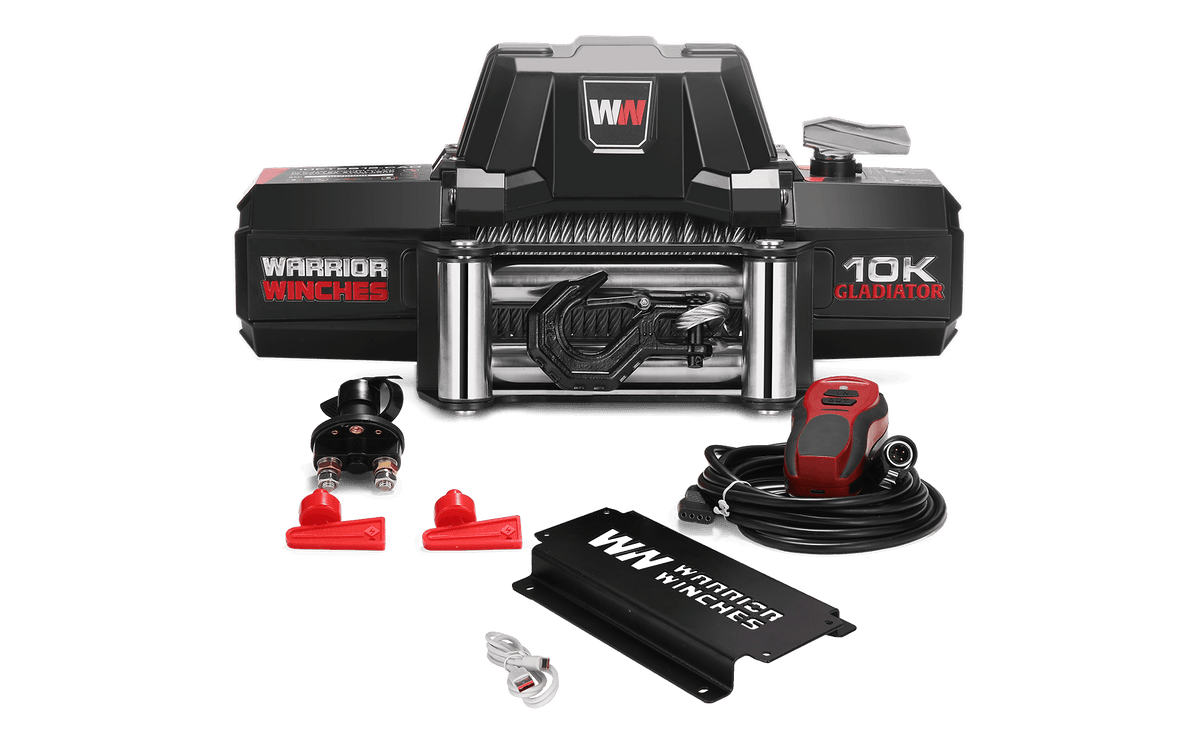

  • Gladiator Winch
  • 2in1 Rechargeable Remote (Wired and wireless)
  • Roller Fairlead
  • Removable Heavy Duty Hook
  • Heavy Duty Battery Leads
  • Isolation Switch
  • Control Box Relocation Plate
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Brochure Download
Specifications Sheet  Download

Video

This winch has a 7 Year Warranty

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earnings
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samurai range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.

WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 7-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.
- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force majeure events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here
