10FT2A12-CAD

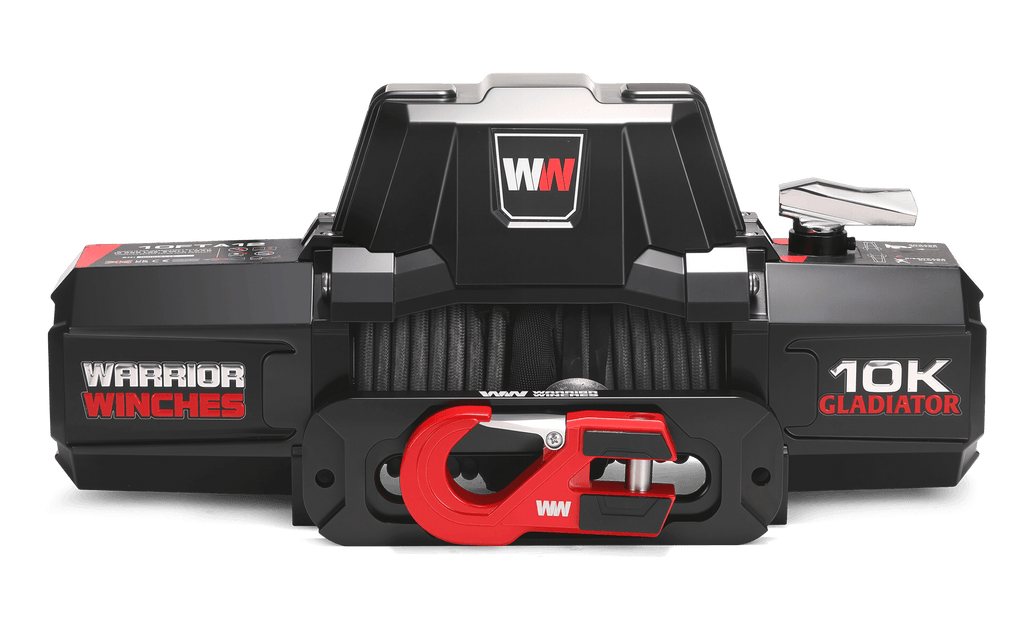

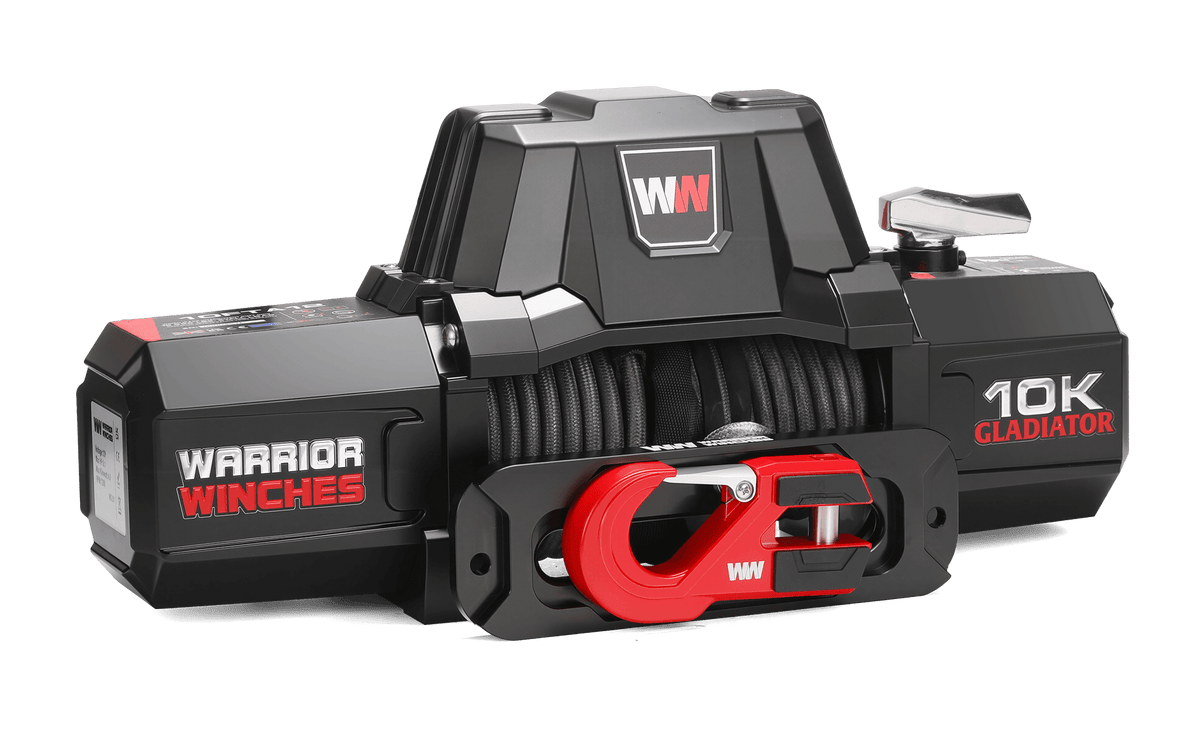

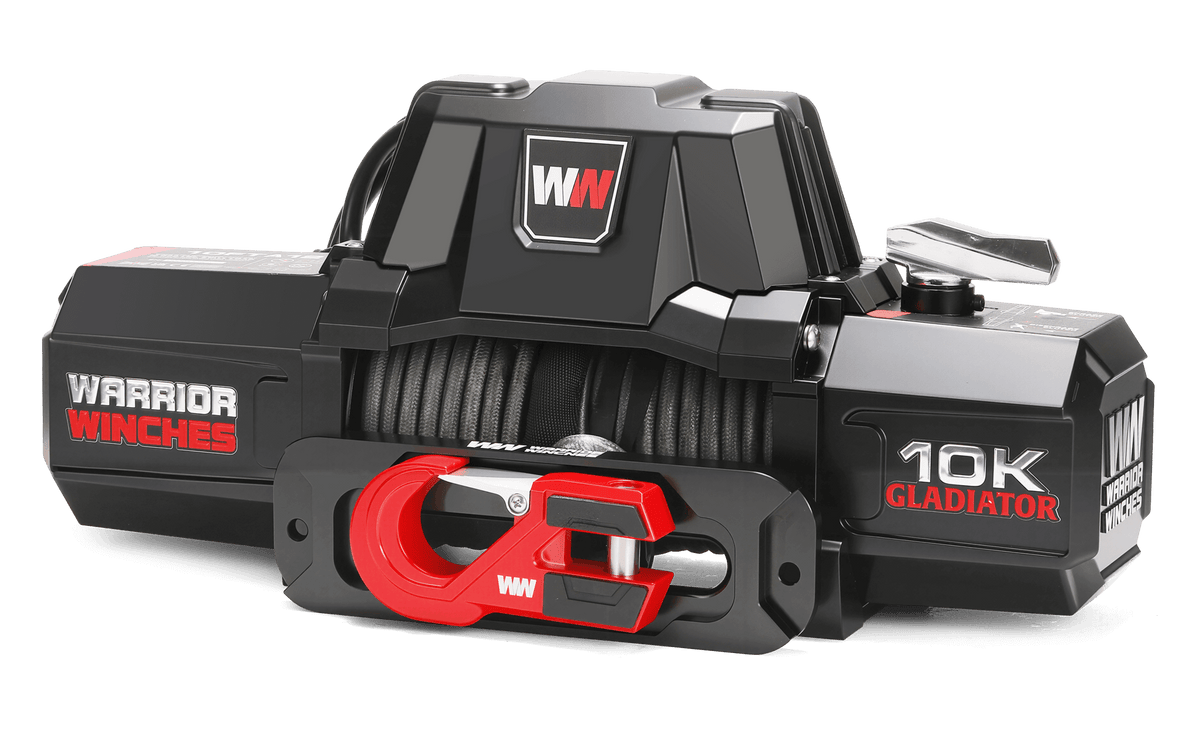

Gladiator V2 F-Type 10,000 Electric Winch - 12v Synthetic Rope

Warranty: 7 Years
$999.99
Delivery in 2-7 days
Buy now, pay later options available at checkout
American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
Shipped from USA with expert support when you need it.

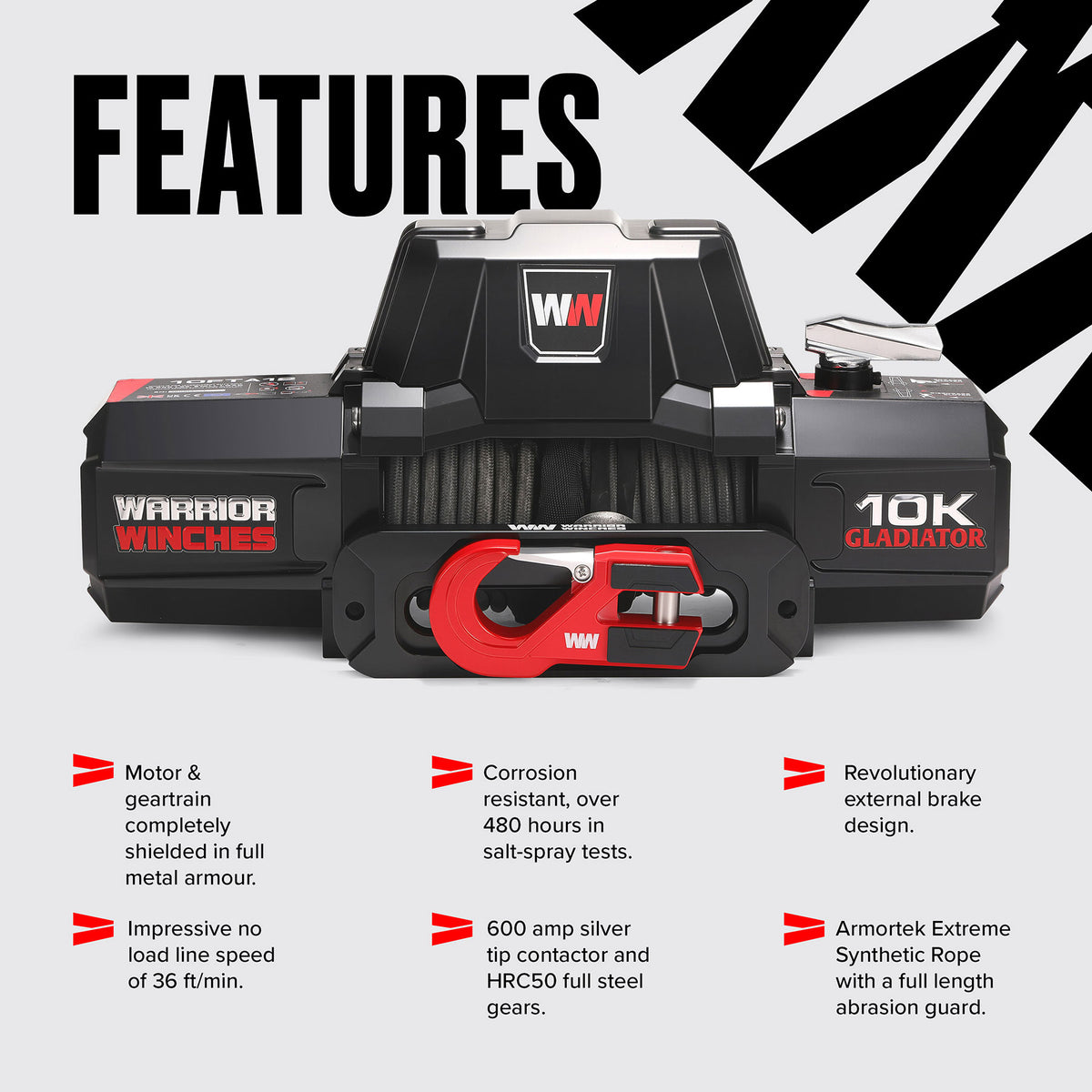

Features

  • Built to Face Whatever Comes Your Way: Full metal armor, stainless steel hardware and IP68 waterproof protection help protect critical components from water, mud, dust and harsh conditions.
  • Lighter to Handle. Tough Where It Counts: Armortek Extreme Synthetic Rope provides high-strength recovery performance in a lightweight format, with a full-length abrasion guard helping protect against wear, UV exposure and moisture.
  • Premium Hardware. Serious Strength: The 7075 aviation-grade aluminum hawse fairlead and 16,000lb-rated hook deliver premium strength without unnecessary bulk.
  • Keep Your Cool Under Maximum Load: The external brake helps manage heat around the drum, while thermal overload protection helps protect the motor during extended or demanding pulls.
  • Recovery Control in the Palm of Your Hand: The rechargeable wired and wireless remote lets you operate the winch remotely from up to 50 feet away while maintaining control around the recovery area.

The Gladiator V2 F-Type 10,000lb Electric Winch delivers premium recovery performance with the lightweight handling and advanced protection of synthetic rope. As part of Warrior Winches' premium Gladiator range, it combines a powerful 12V motor and 10,000lb rated line pull with Armortek Extreme Synthetic Rope, a 7075 aviation-grade aluminum hawse fairlead, and a heavy-duty 16,000lb-rated hook. Built for serious off-road enthusiasts, truck and Jeep owners, and demanding recovery applications, the Gladiator is engineered to deliver when the terrain gets tough.

More Pulling Power When Recovery Gets Tough

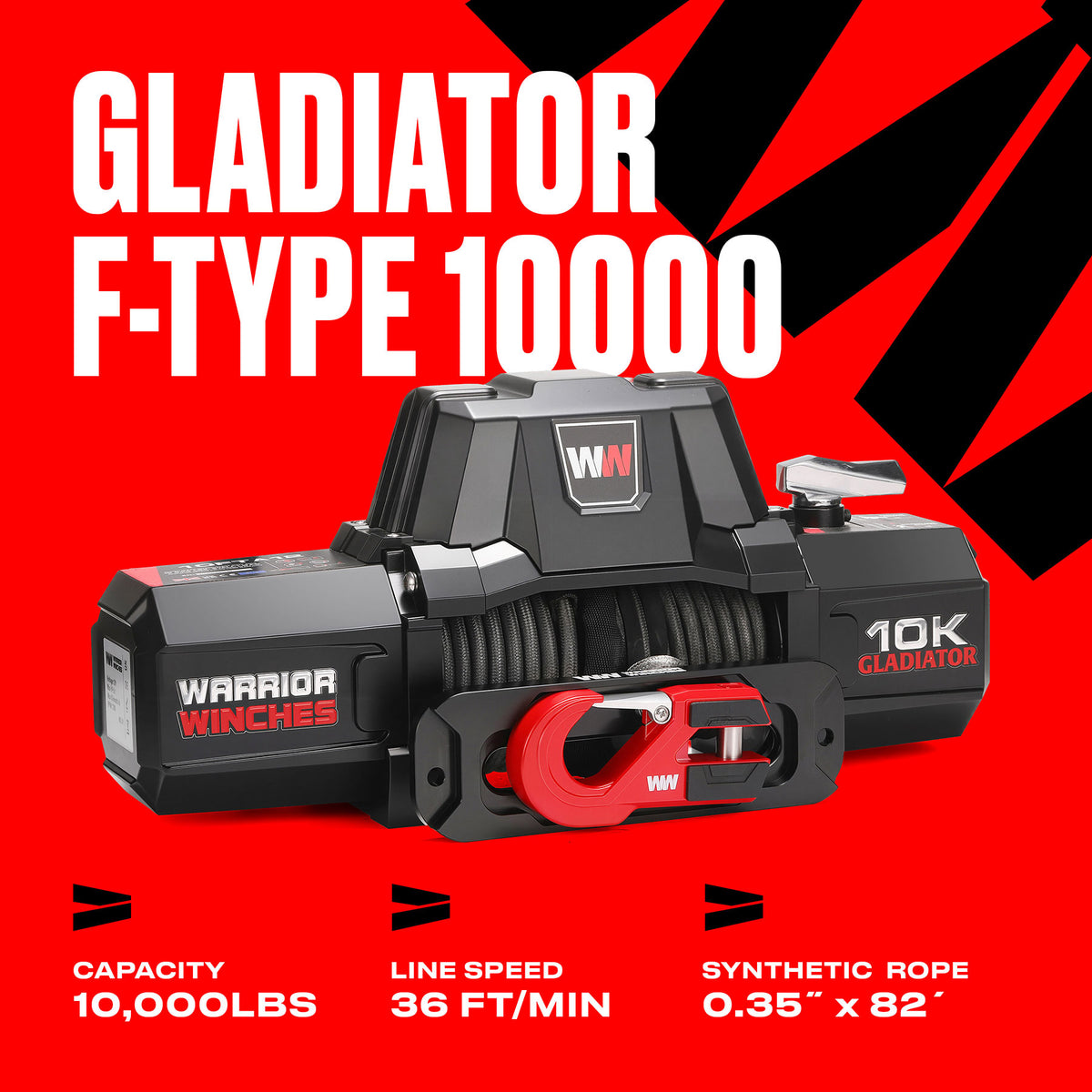

With a 10,000lb rated line pull and a powerful 6.1hp motor, the Gladiator V2 F-Type provides the pulling capacity needed for demanding vehicle recoveries. Its 196:1 planetary gear system delivers controlled, dependable performance, while a no-load line speed of up to 36 ft/min helps make recovery operations faster and more efficient.

Easier Rope Handling During Tough Recoveries
The 82ft Armortek Extreme Synthetic Rope combines high-strength performance with the lightweight handling benefits of synthetic rope. Its full-length abrasion guard helps protect against wear, UV rays, and moisture, providing added durability when the winch is exposed to demanding off-road conditions.

Premium Strength With Less Weight Up Front
The Gladiator comes equipped with a premium 7075 aviation-grade aluminum hawse fairlead, providing exceptional strength without unnecessary bulk. Its UV-resistant anodized finish adds another layer of protection against sun, mud, rain, and harsh outdoor conditions.

Extra Strength When You Need It Most
A heavy-duty 16,000lb-rated Armortek hook provides substantial strength for demanding recovery situations. Designed to complement the lightweight synthetic rope setup, it delivers serious capability without compromising the Gladiator's premium construction.

Confidence in Any Weather or Terrain
Full metal armor protects the motor and geartrain, while the aluminum control pack cover and stainless steel hardware provide additional durability and corrosion resistance. IP68 waterproof protection helps shield the winch from water and dust, while its corrosion-resistant construction is built to withstand demanding environments.

Better Heat Management During Heavy Pulls
The Gladiator features thermal overload protection to help protect the motor from excessive heat during extended recovery operations. Its external brake design helps manage heat around the drum, protecting the synthetic rope while maintaining dependable braking performance when the load is on.

Control Your Recovery From a Safer Distance
The 2-in-1 rechargeable wired and wireless remote allows you to operate the winch from up to 50 feet away. USB charging keeps the remote ready for use, while wireless operation gives you greater flexibility when positioning yourself around the vehicle during recovery.

Fit It Your Way
The included control box relocation plate gives you more freedom when installing your Gladiator F-Type. Relocate the control box to suit your vehicle and available mounting space, helping create a cleaner, more practical installation without compromising the winch's premium setup.

Built for Years of Premium Recovery Performance
The Gladiator V2 F-Type 10,000lb is built for those who expect premium construction, powerful performance, and dependable recovery capability. From its Armortek Extreme Synthetic Rope and aviation-grade aluminum fairlead to its rugged protection and advanced control system, every component is engineered for demanding use. Backed by a 7-year warranty, the Gladiator is ready for the toughest recoveries.

Rated Line Pull 10000 lbs
Motor Type 12V: Input: 4.6kw/6.1hp; Output: 2.2kw/3.0hp
Rated Volt 12v
Clutch Manual
Gearing 196:1
Gearing System Planetary
Braking Action Patented ratchet
Drum Size (Diameter x Length) 2.48 x 8.54 in
Controls 2in1 Rechargeable Wired/Wireless Remote
Cable Material Synthetic
Cable Size (Diameter x Length) 0.35 in x 82 ft
Find replacement Armortek Synthetic Rope
Fairlead Hawse
Mounting Pattern 10 x 4.5 in (4-M10)

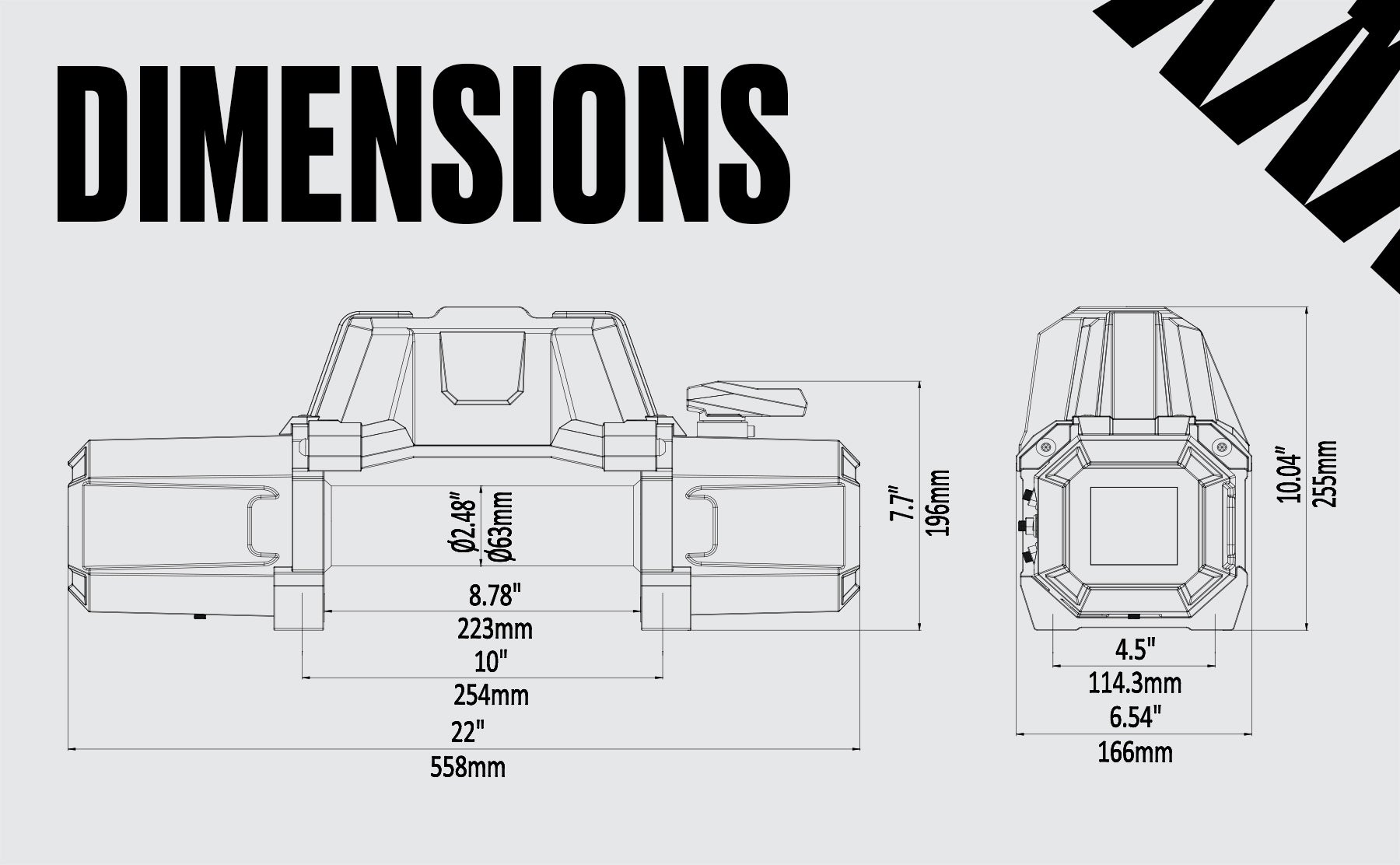

Dimensions (LWH) 21.97 x 6.54 x 10.04 in
Weight 71 lbs
Warranty 7 Year
Waterproof Rating (IP) 68



Layer of Rope/Cable Line Pull: lbs (kgs) Rope on drum ft(m)
1 10000 (4536)18 (5.5)
2 7900 (3583)39.4 (12)
3 6600 (2993)64 (19.5)
4 5600 (2540)82 (25)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 36 (11.0) 50
3000 (1360) 15.4 (4.7) 150
6000 (2722) 10.5 (3.2) 260
8000 (3629) 8.2 (2.5) 300
10000 (4536) 6.5 (2.0) 355

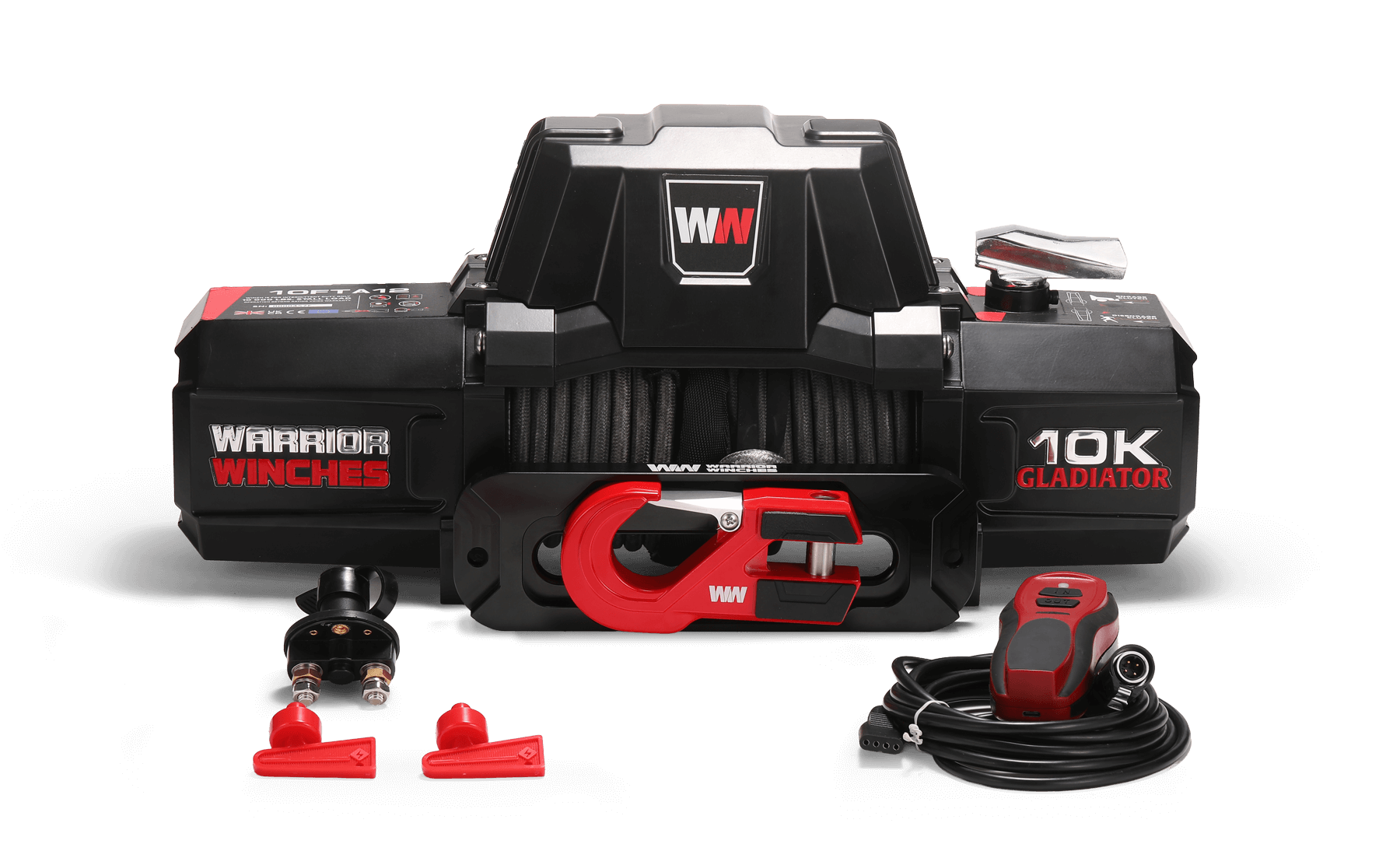

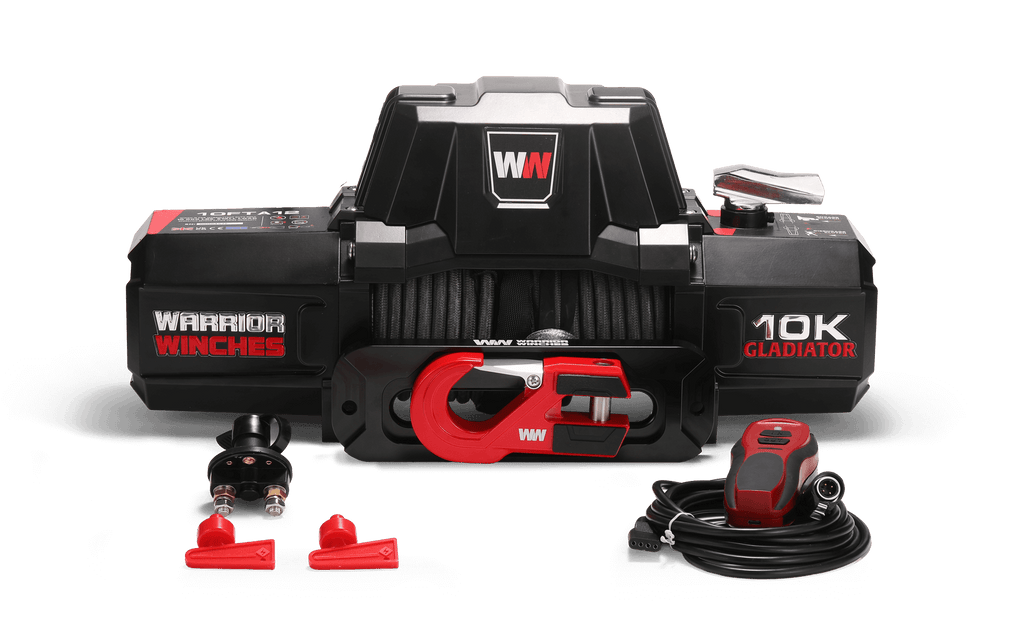

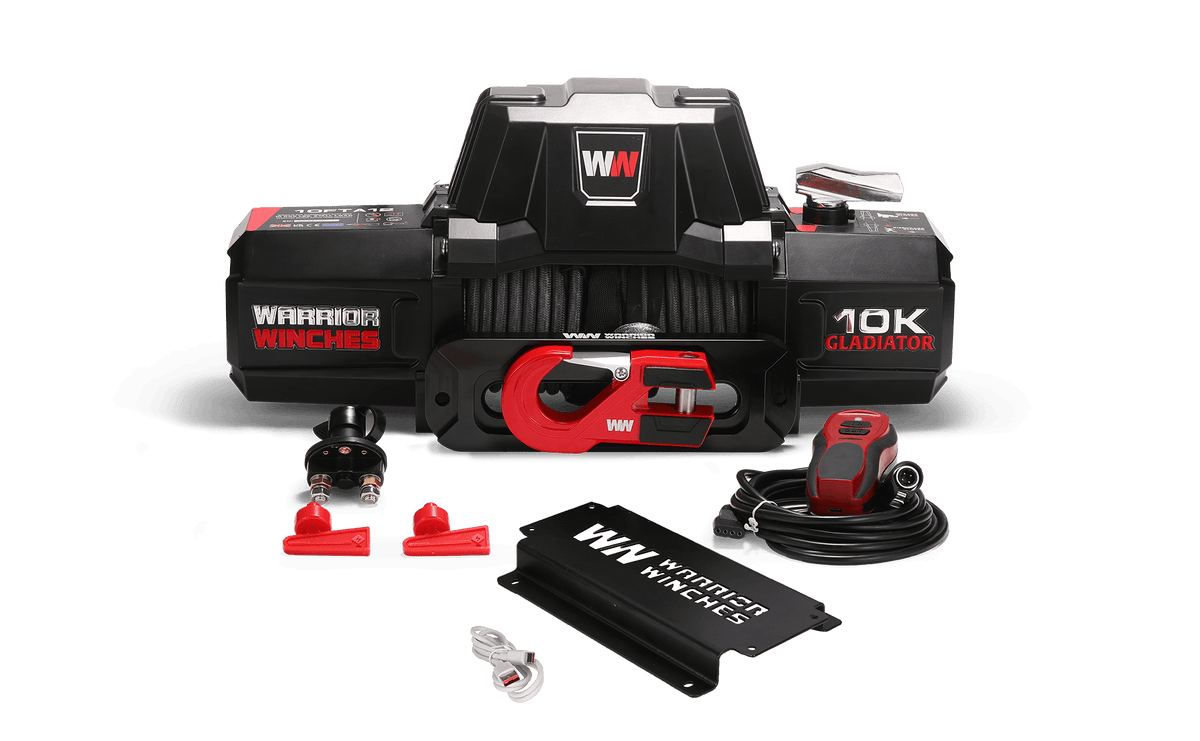

  • Gladiator Winch
  • 2in1 Rechargeable Remote (Wired and wireless)
  • Armortek 7075 Aviation-Grade Aluminum Fairlead
  • Armortek 16,000 lb Hook
  • Armortek Extreme Synthetic Rope
  • Removable Heavy Duty Hook
  • Heavy Duty Battery Leads
  • Isolation Switch
  • Control Box Relocation Plate
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Brochure Download
Specifications Sheet  Download

Video

This winch has a 7 Year Warranty

BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earnings
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samurai range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.

WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 7-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.
- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force majeure events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.
