35STS12-CAD

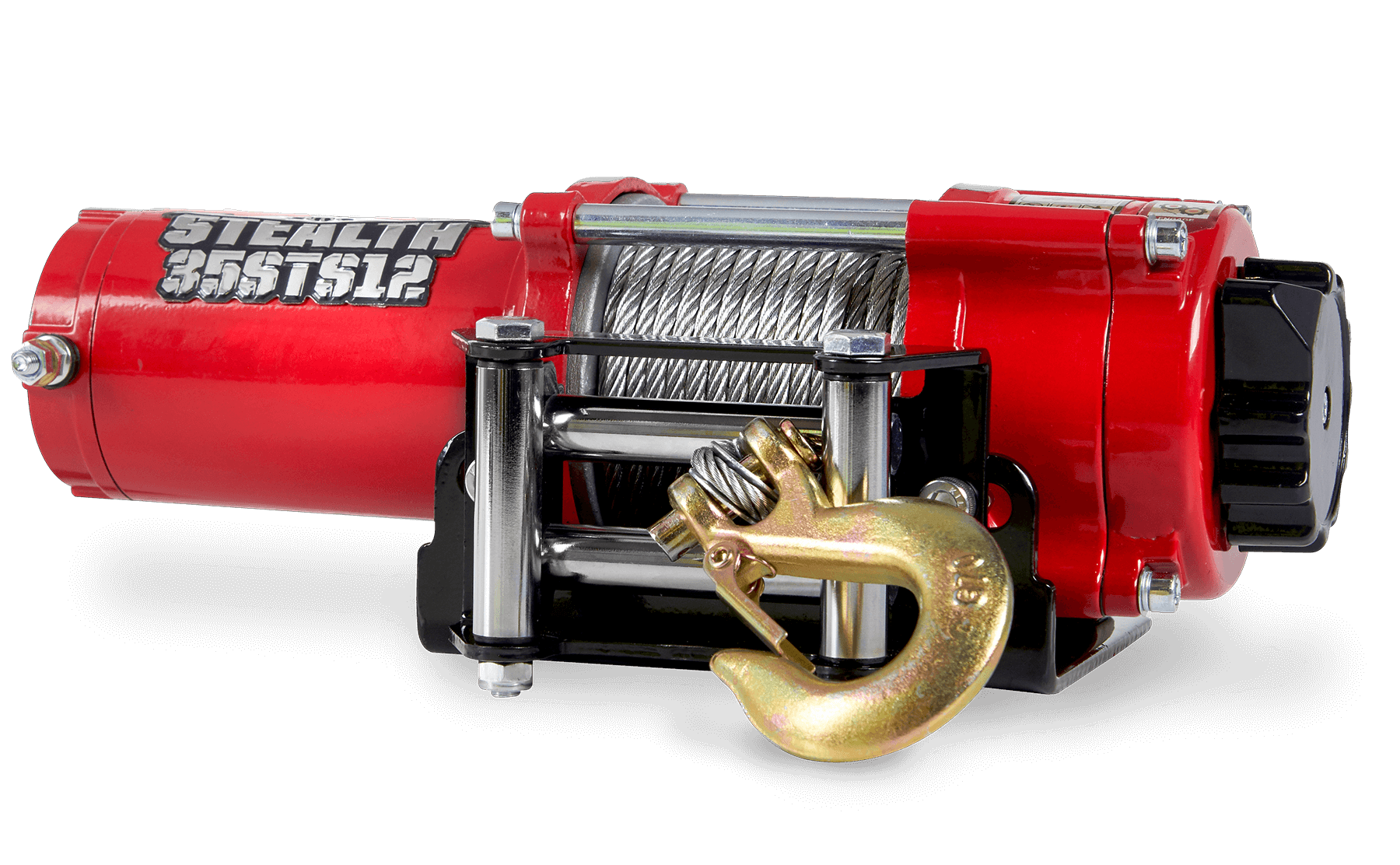

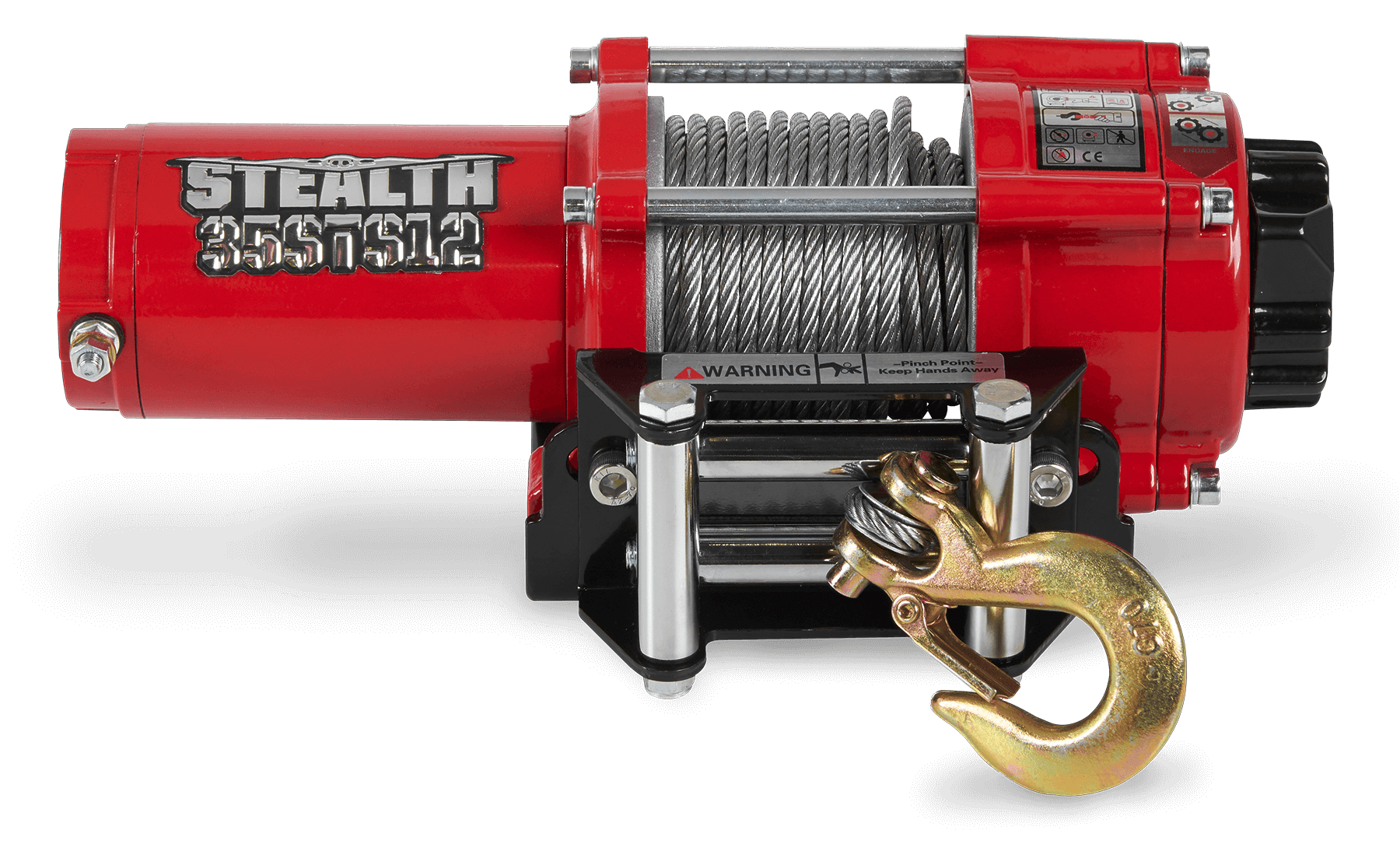

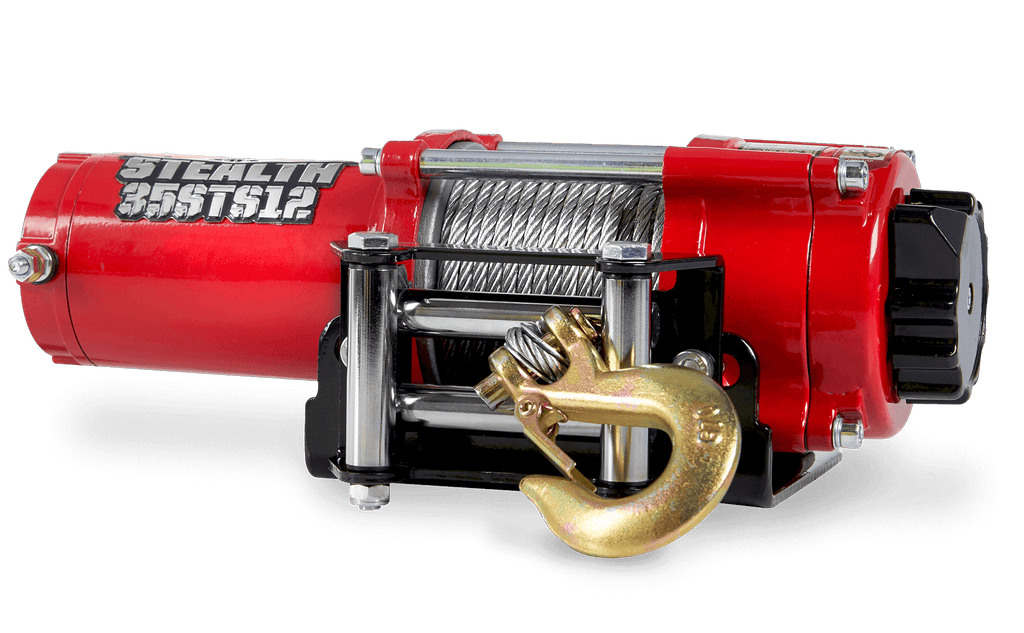

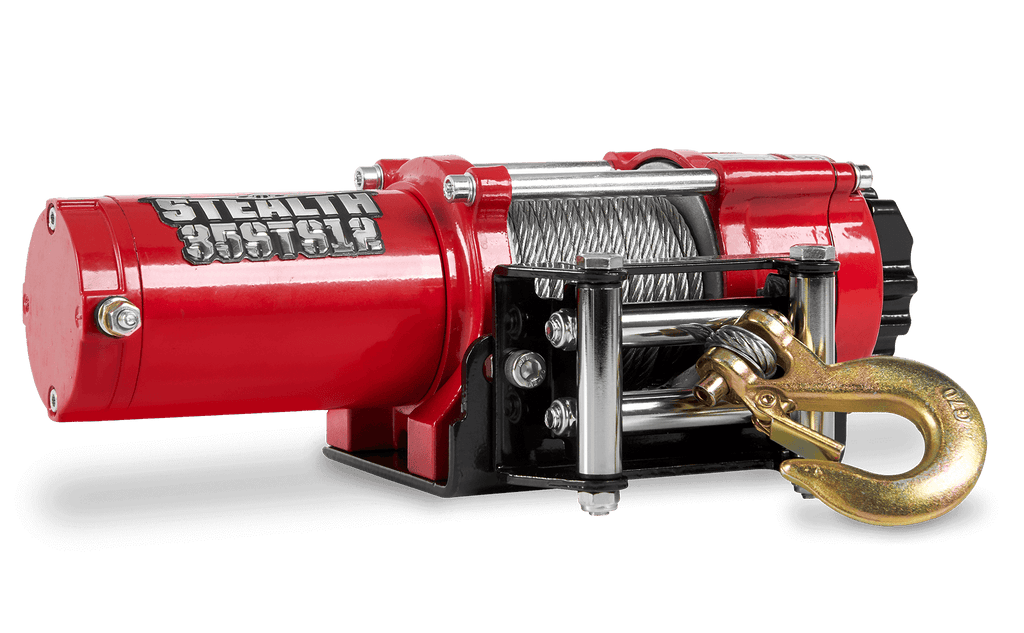

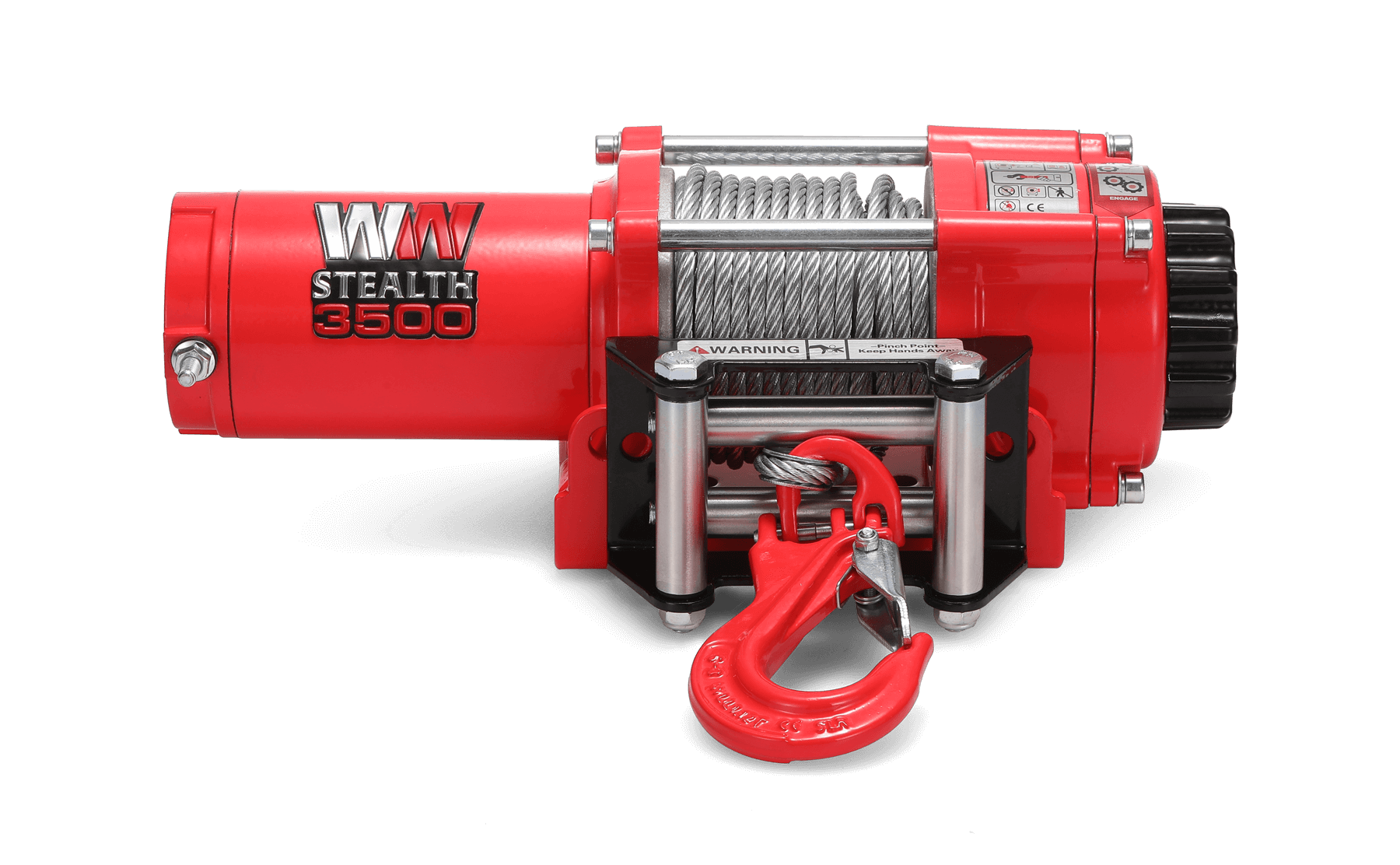

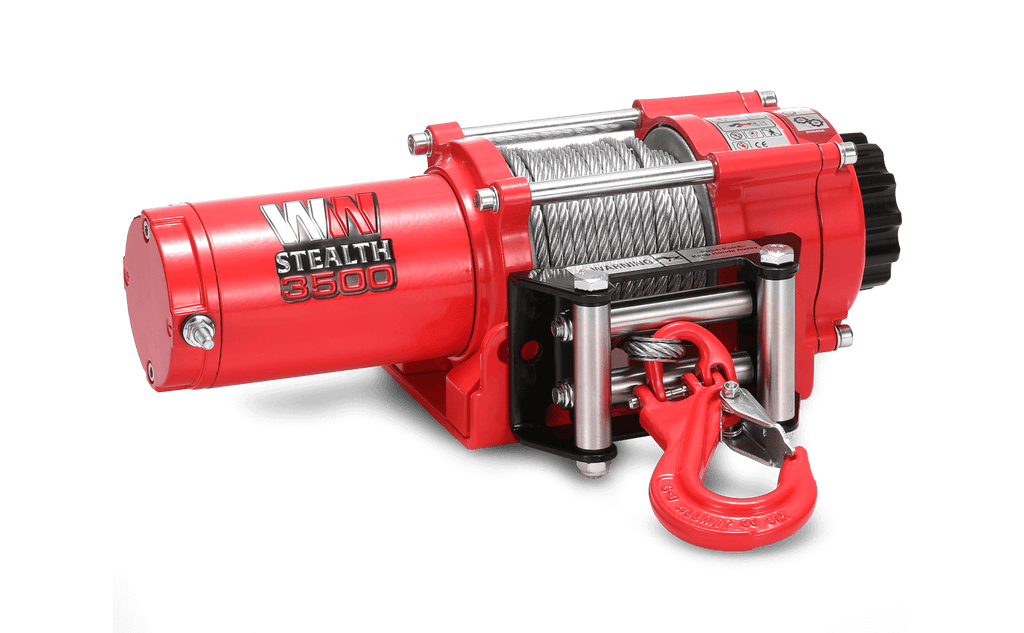

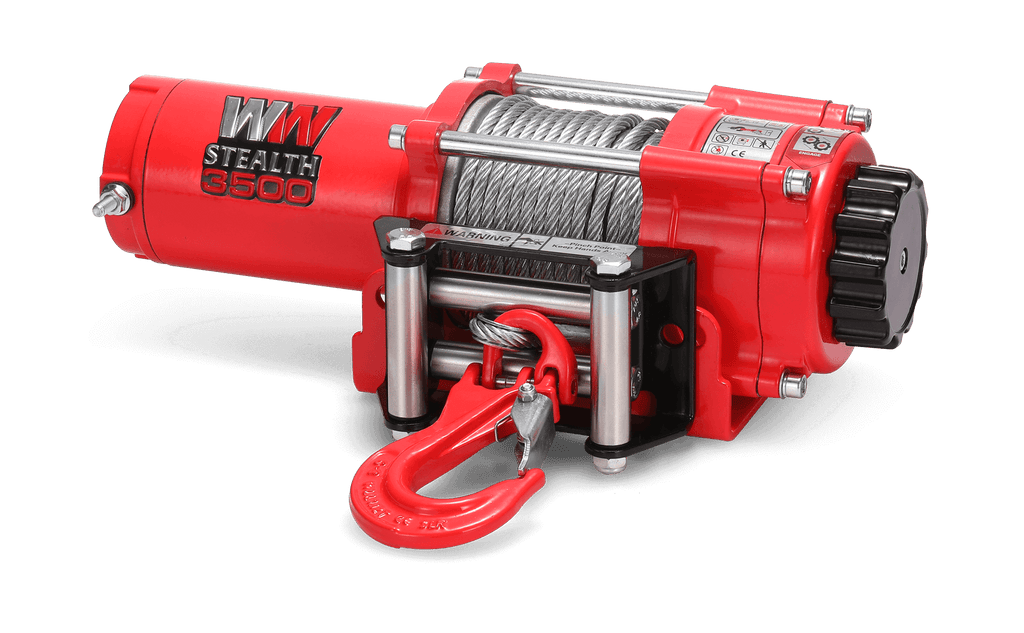

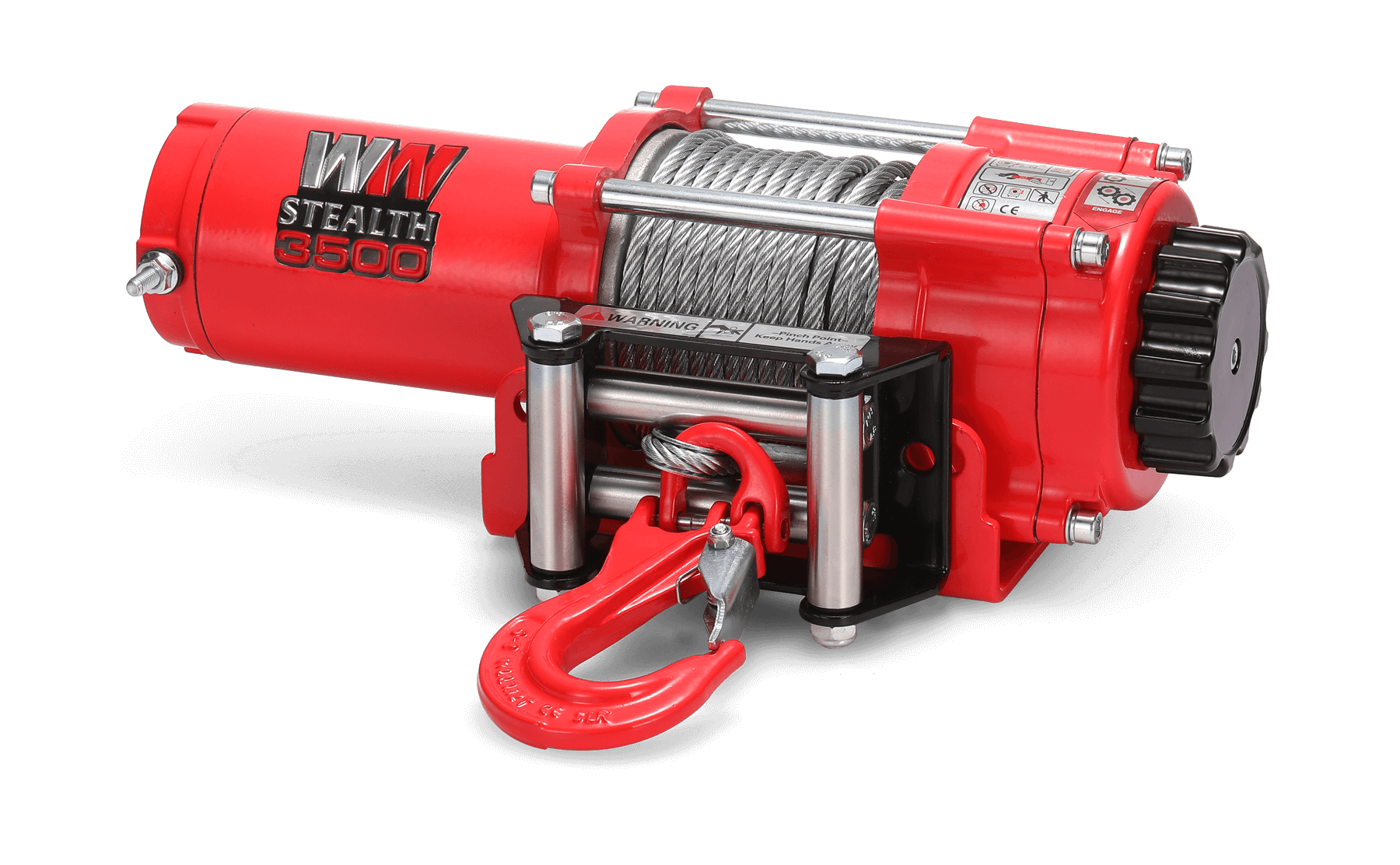

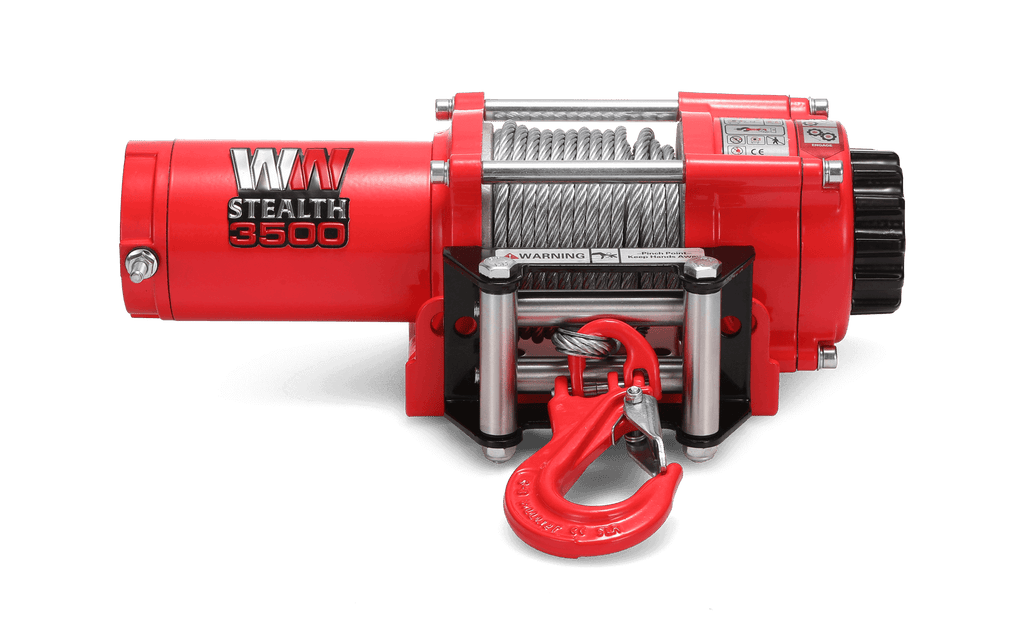

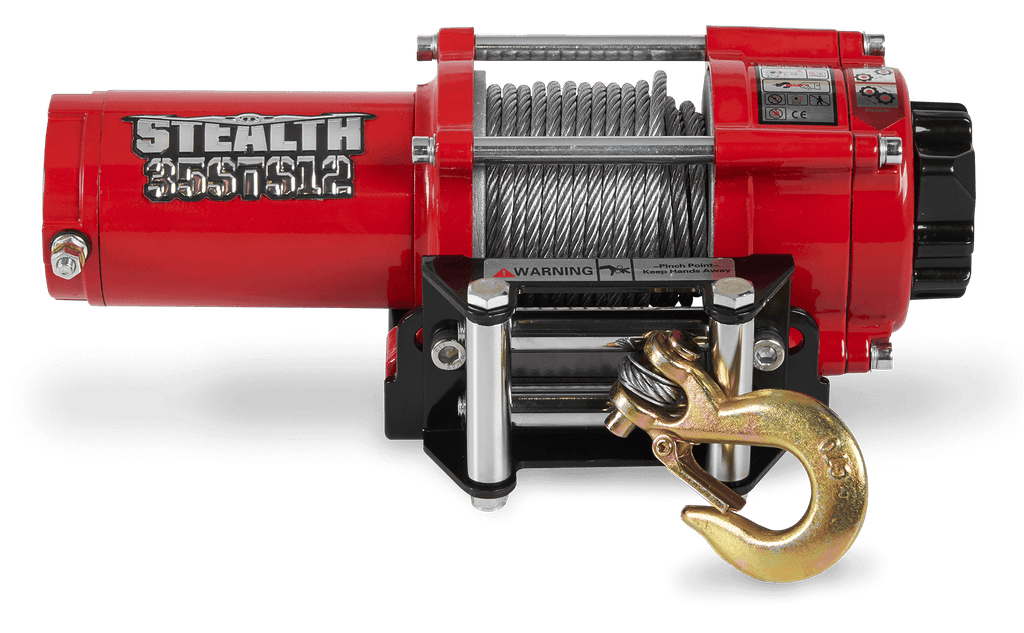

Stealth 3,500lb 12v Electric Winch - Steel Rope

Save $25.00
Sale price$109.99 Regular price$134.99
Delivery in 2-7 days

Features

  • Compact 3500lbs strength handles demanding pulling and recovery tasks.
  • 42ft x 0.21in durable steel cable featuring a clevis hook and handsaver strap for safety and ease of use.
  • Reversible 1.3hp 12v Permanent Magnet Motor Provides reliable power to both pull in and out, enhancing the efficiency and versatility of the winch.
  • Freespooling Clutch Gearbox Allows for manual unwinding of the cable, giving users more control over rope deployment during setup.
  • Versatile Accessories Includes a wired hand control, a wireless control, mounting plate, 4-way roller fairlead, and mounting bolts for easy installation and smooth operation.

Stealth Winches: Performance and Exceptional Value.


The Stealth Winch range has been growing stronger since its inception, offering models from 3,500 lb to 13,500 lbs.

Known for reliability and power, the Stealth Electric Winch continues to be a top choice for both enthusiasts and professionals. It’s built to meet the demands of various applications, from recreational to heavy-duty use.


What sets the Stealth apart is the exceptional value it offers, with features that rival more expensive winches. Equipped with a powerful copper-wound motor and full steel gearing, this winch is designed for long-lasting, reliable performance. The heavy-duty sealed solenoid ensures that the winch can perform in tough conditions, making it an excellent choice for any job.


The Stealth Winch also includes integrated wireless control system, complete with wireless handset for flexible, remote operation as well as an ATV remote. This innovative feature enhances ease of use, allowing you to control the winch from any location, improving both safety and efficiency during recovery or hauling tasks. It’s designed to work seamlessly, no matter the environment.


Whether you’re recovering a vehicle, pulling a boat, or handling any heavy-duty job, the Stealth Winch has everything you need. Offering unbeatable quality and value, the Stealth range offers you the best performance at an affordable price.

Rated Line Pull 3500 lbs
Motor Type 12V: Input: 3.2hp / 2.4 kW; Output: 1.3hp / 1.0 kW
Rated Volt 12v
Clutch Manual
Gearing 170:1
Gearing System Planetary
Braking Action Dynamic
Drum Size (Diameter x Length) 1.46 x 3.15 in
Controls ATV Handlebar Remote
Wireless Remote
Cable Material Steel
Cable Size (Diameter x Length) 0.21 in x 42 ft
Fairlead Roller
Mounting Pattern 3.13 in (2-M8)

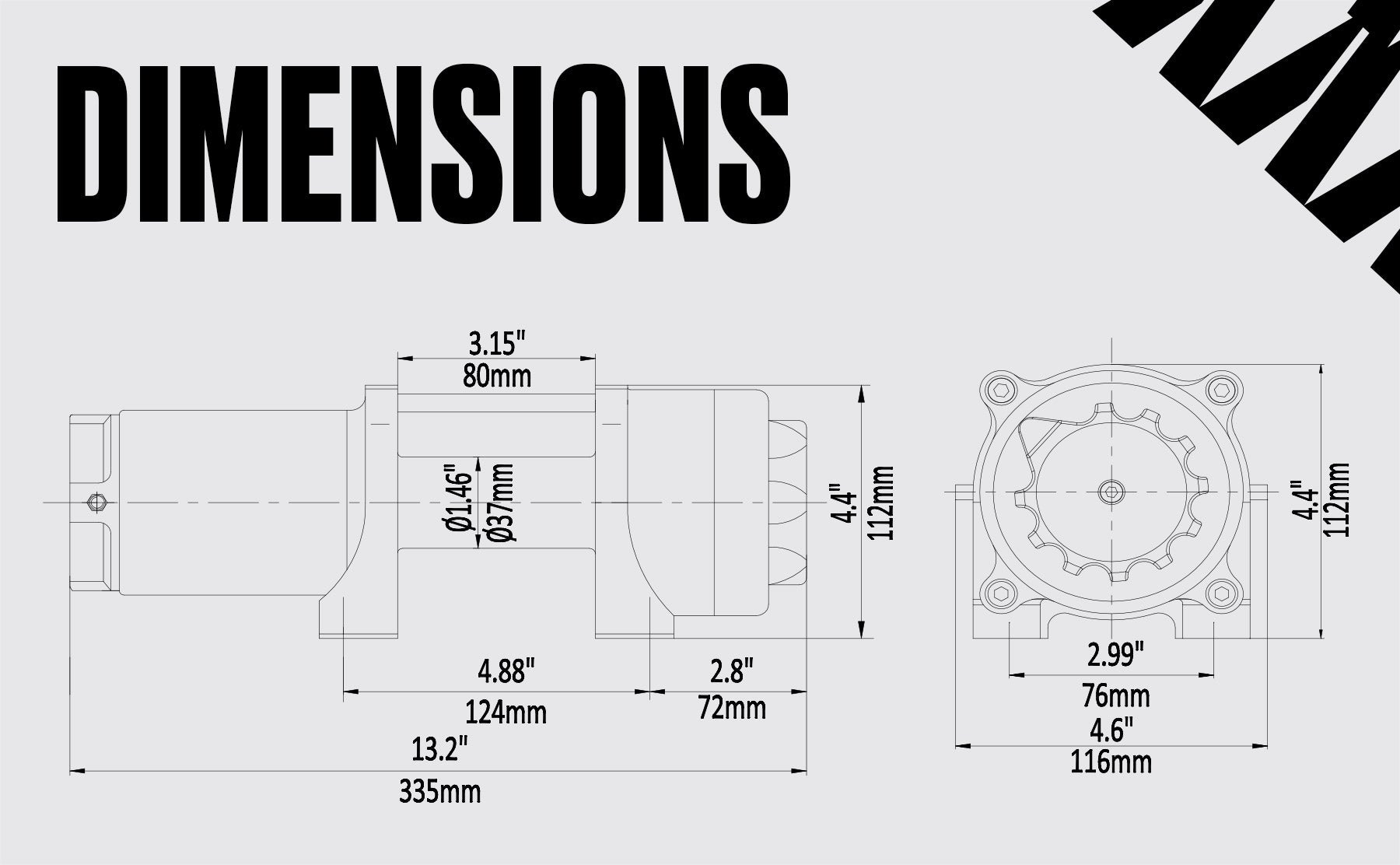

Dimensions (LWH) 13.70 x 4.57 x 6.50 in
Weight 23 lbs
Warranty 3 Year
Waterproof Rating (IP) 54
Certification CE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 3500 (1588) 5.9 (1.8)
2 2789 (1265) 13.5 (4.1)
3 2319 (1052) 22.0 (6.7)
4 1984 (900) 31.2 (9.5)
5 1733 (786) 42.0 (12.8)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 10.2 (3.1) 20
1000 (454) 8.9 (2.7) 75
2000 (907) 7.5 (2.3) 130
3500 (1588) 4.6 (1.4) 200
  • Stealth Winch
  • ATV Handlebar Remote
  • Wireless Control
  • 42ft (12.8m) Steel Rope
  • Mounting Plate: Included for flat mount applications
  • Fairlead: 4-Way Roller Fairlead
  • Heavy Duty Watertight Contactors: Included
  • Mounting Bolts: Included for Standard installations
  • Heavy Duty Battery Cables (May need extending dependent on application)
  • Instruction Manual
User Manual Download
Specifications Sheet  Download

Video

Load Test

  • how is the cable connected to the winch at the reel?

    Hi

    The cable is trapped into the drum by a grub screw. Tightened by an allen key the winch cable should always have 5 revolutions of cable on the drum at all times.

    Thanks

  • Type of remote, wired or separate?

    Thanks for your enquiry.  There is a handlebar remote and 2 wireless remotes as standard with the Stealth ATV range of winches
