35STA12-CAD

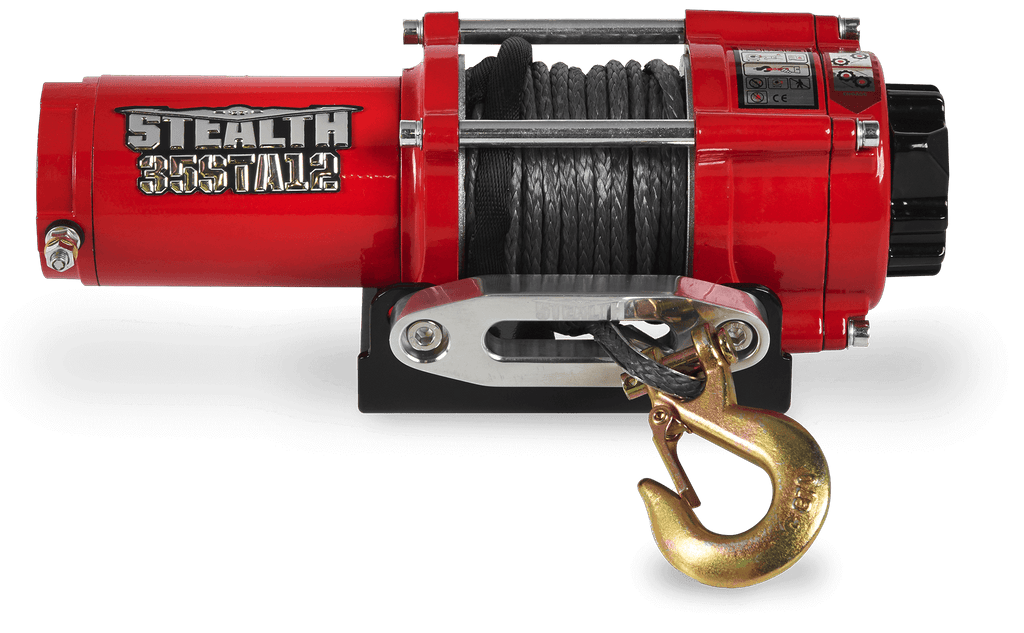

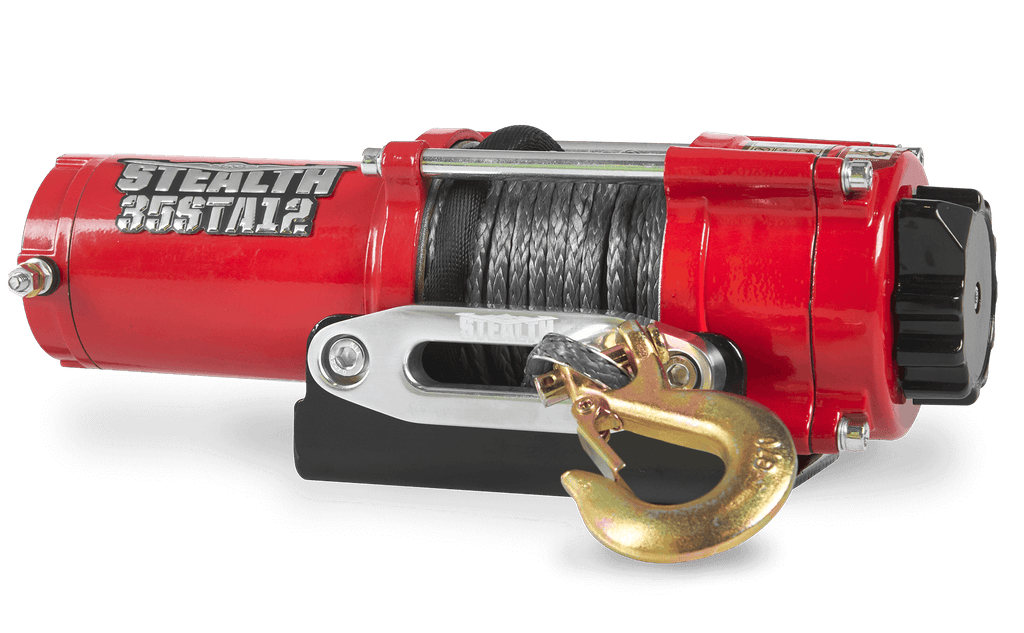

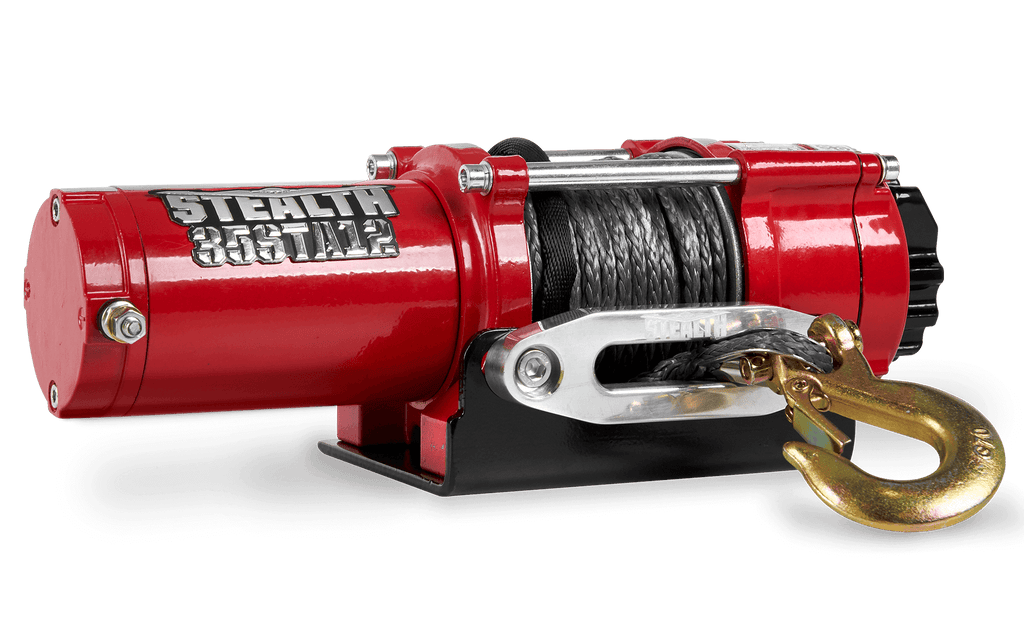

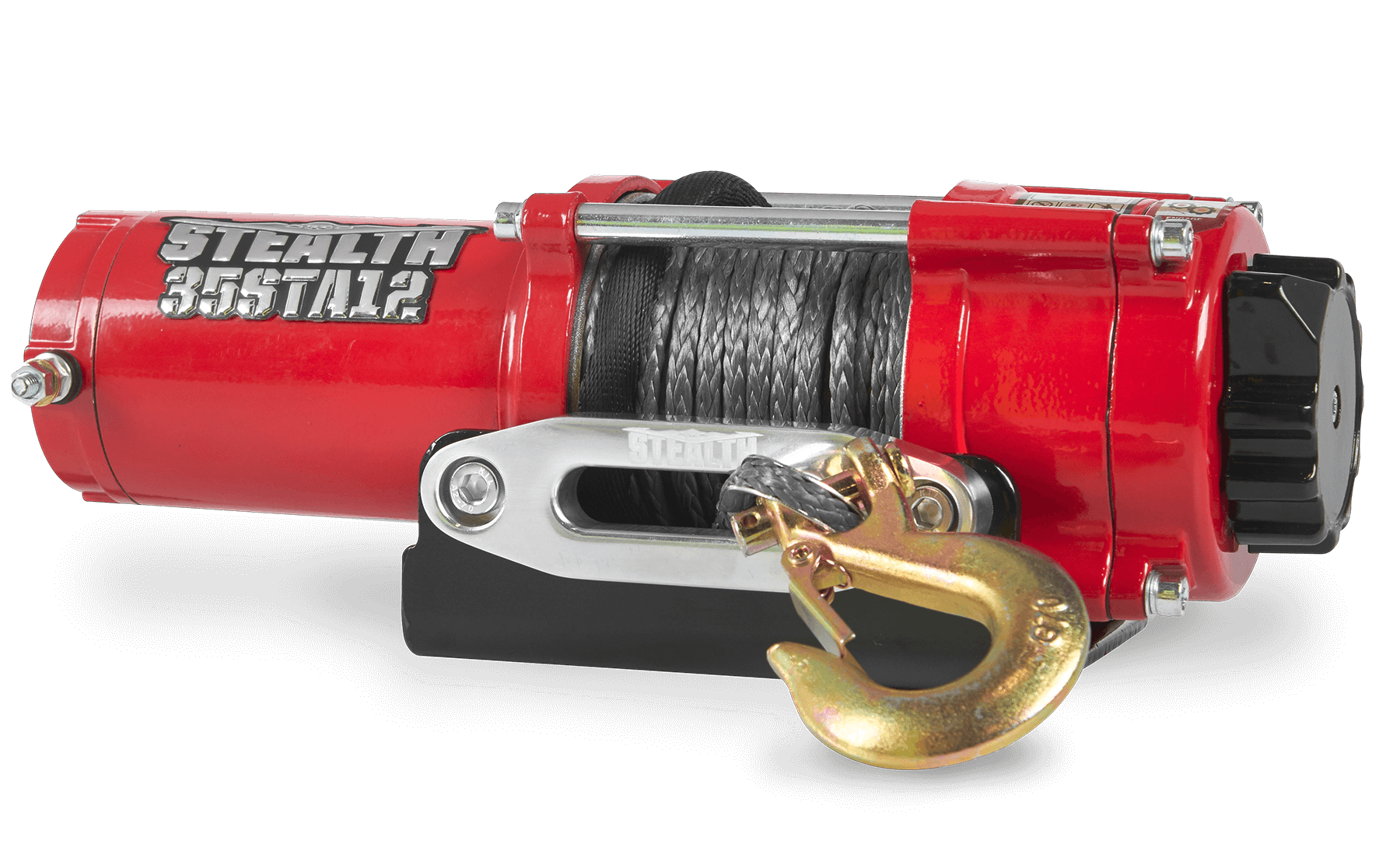

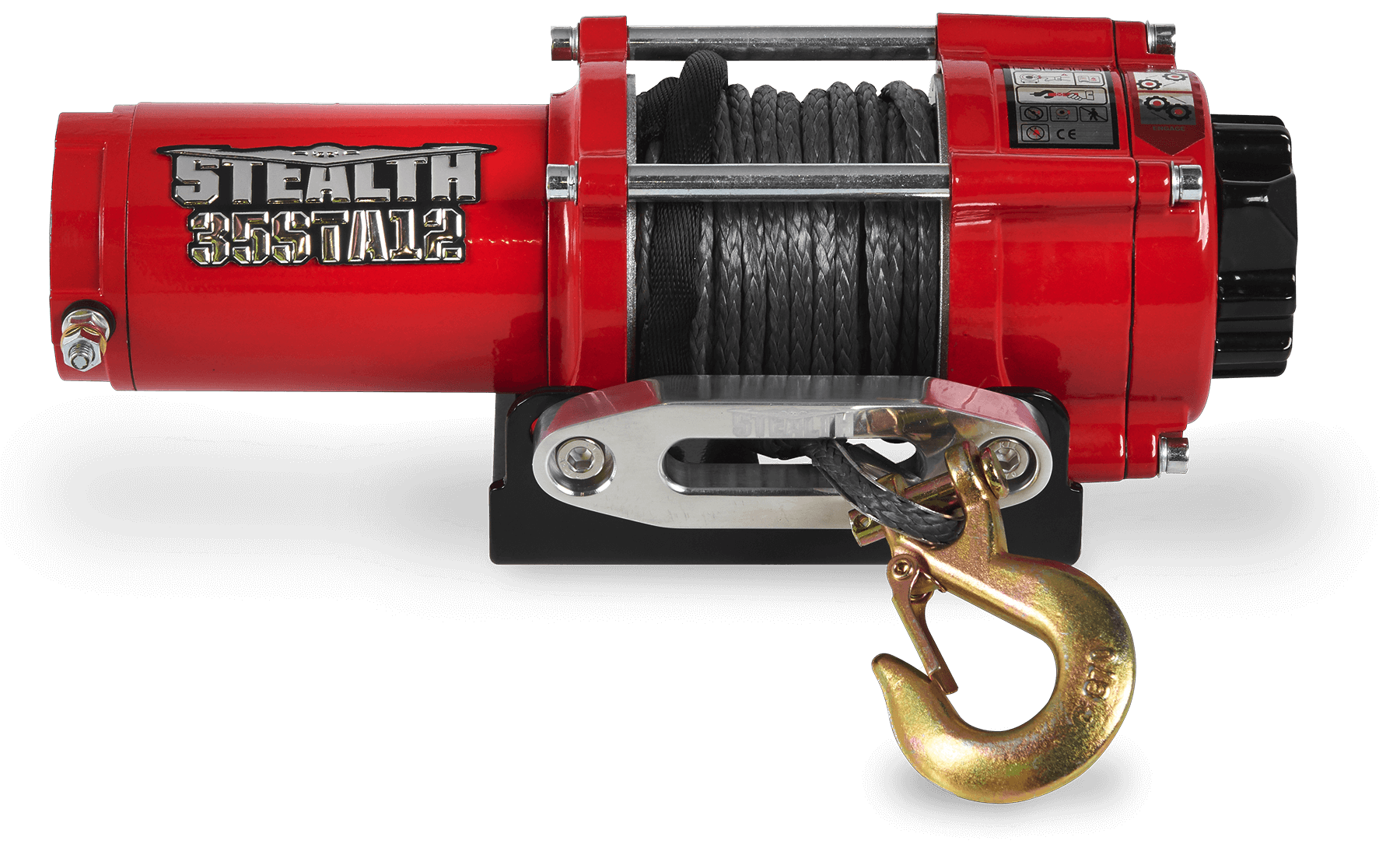

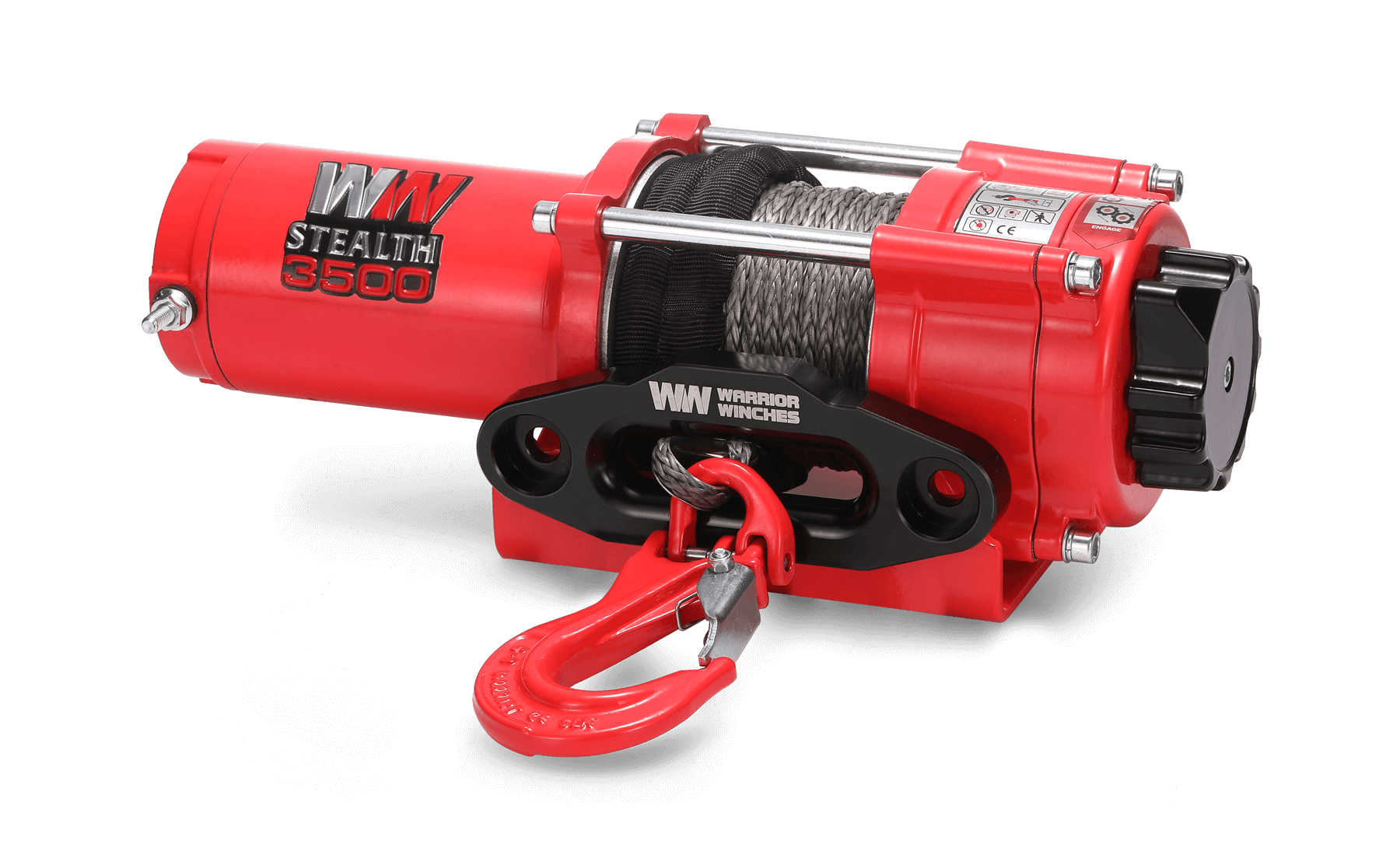

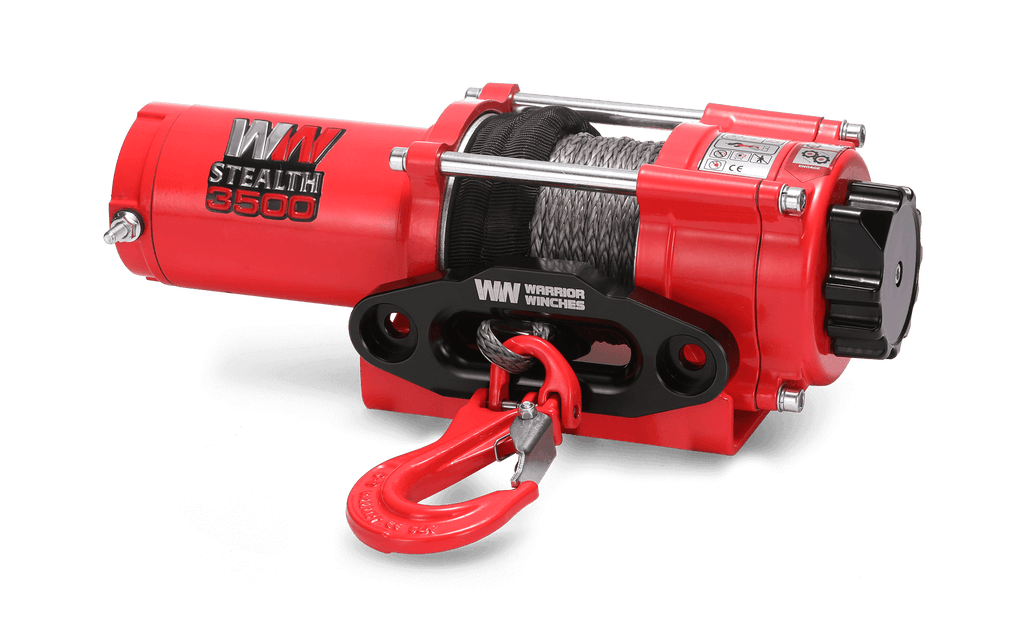

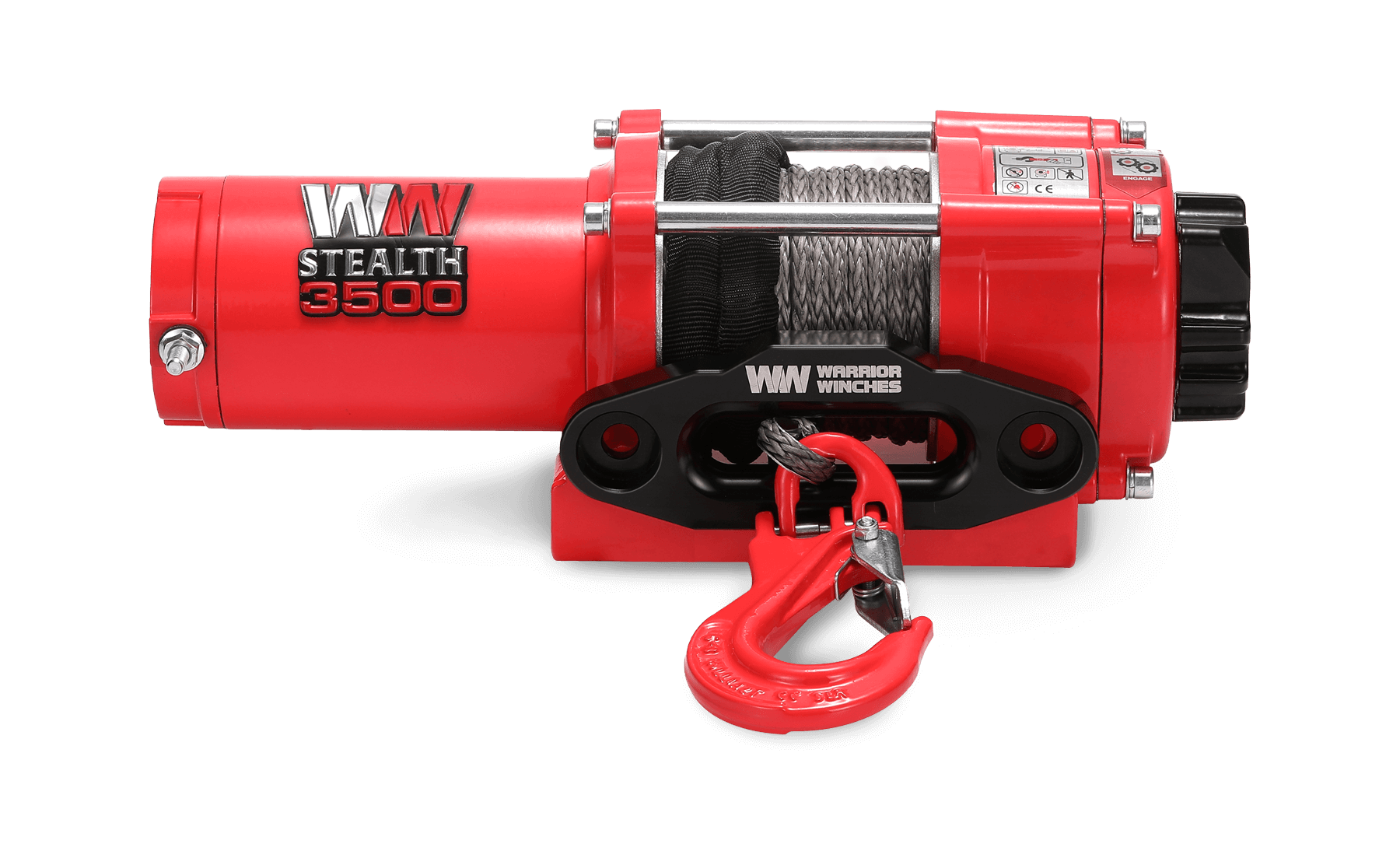

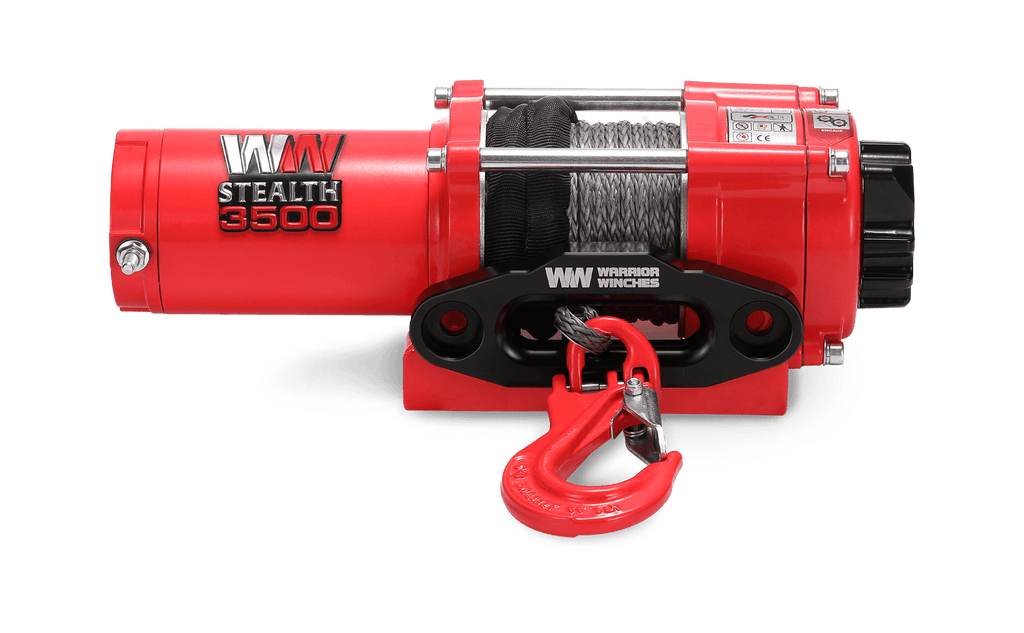

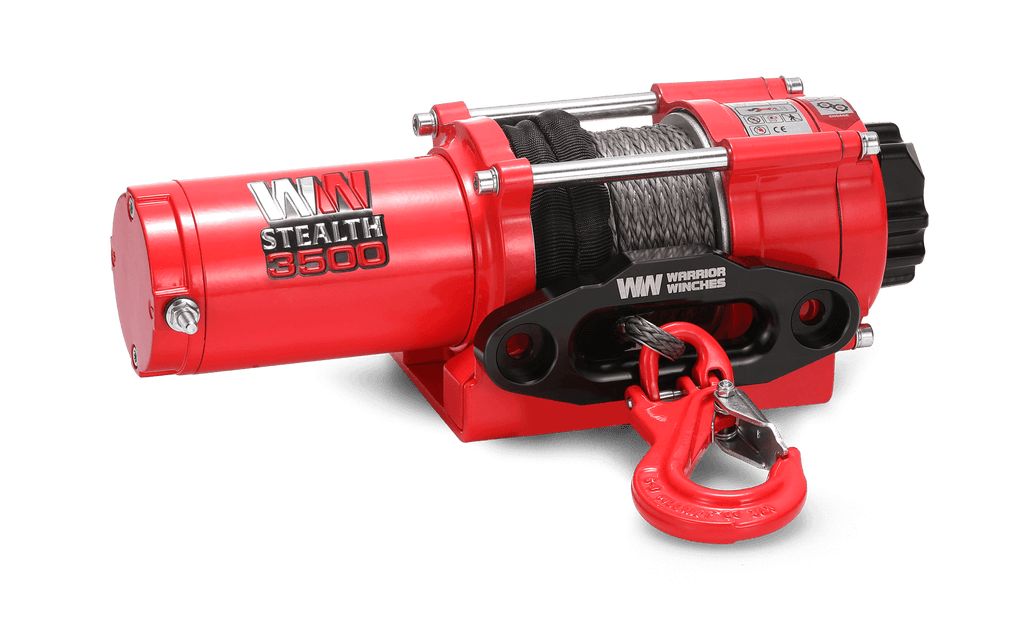

Stealth 3,500lb 12v Electric Winch - Synthetic Rope

Save $30.00
Sale price$119.99 Regular price$149.99
Delivery in 2-7 days

Features

  • Compact 3500lbs strength handles demanding pulling and recovery tasks.
  • 45.93ft x 0.2in lightweight synthetic rope featuring a clevis hook and handsaver strap for safety and ease of use.
  • Reversible 1.3hp 12v Permanent Magnet Motor Provides reliable power to both pull in and out, enhancing the efficiency and versatility of the winch.
  • Freespooling Clutch Gearbox Allows for manual unwinding of the cable, giving users more control over rope deployment during setup.
  • Versatile Accessories Includes a wired hand control, wireless control, mounting plate, fairlead options (4-way roller or hawse), and mounting bolts for easy installation and smooth operation.

Stealth Winches: Performance and Exceptional Value.


The Stealth Winch range has been growing stronger since its inception, offering models from 3,500 lb to 13,500 lbs.

Known for reliability and power, the Stealth Electric Winch continues to be a top choice for both enthusiasts and professionals. It’s built to meet the demands of various applications, from recreational to heavy-duty use.


What sets the Stealth apart is the exceptional value it offers, with features that rival more expensive winches. Equipped with a powerful copper-wound motor and full steel gearing, this winch is designed for long-lasting, reliable performance. The heavy-duty sealed solenoid ensures that the winch can perform in tough conditions, making it an excellent choice for any job.

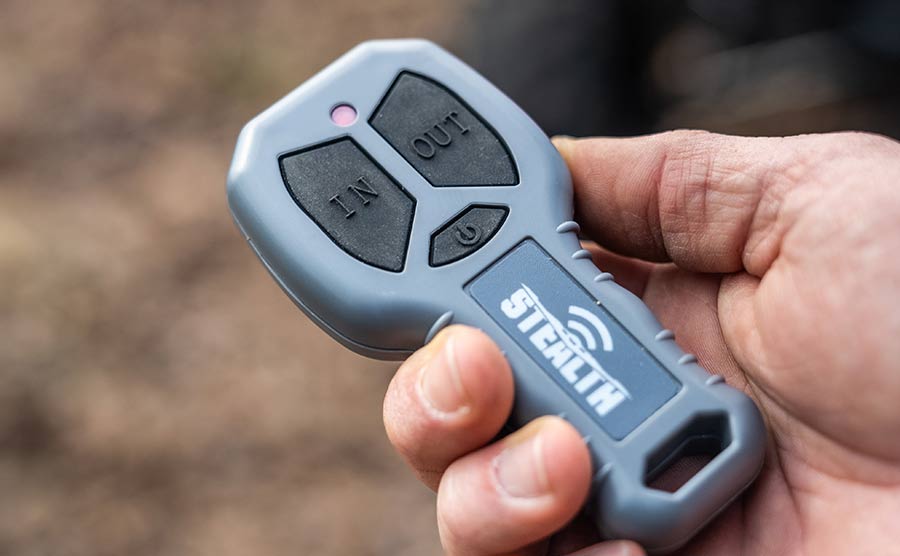

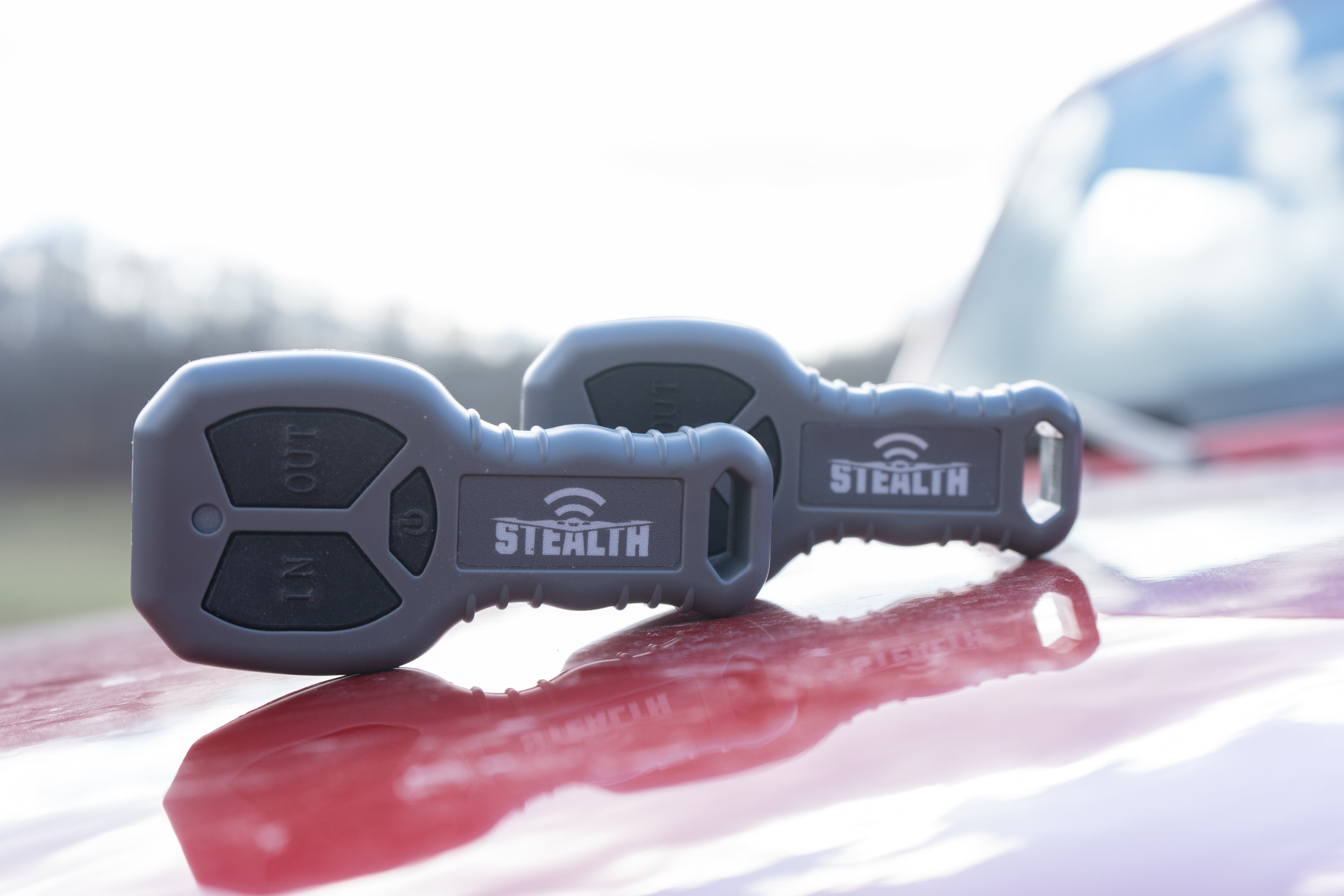

The Stealth Winch also includes integrated wireless control system, complete with wireless handset for flexible, remote operation as well as an ATV remote. This innovative feature enhances ease of use, allowing you to control the winch from any location, improving both safety and efficiency during recovery or hauling tasks. It’s designed to work seamlessly, no matter the environment.

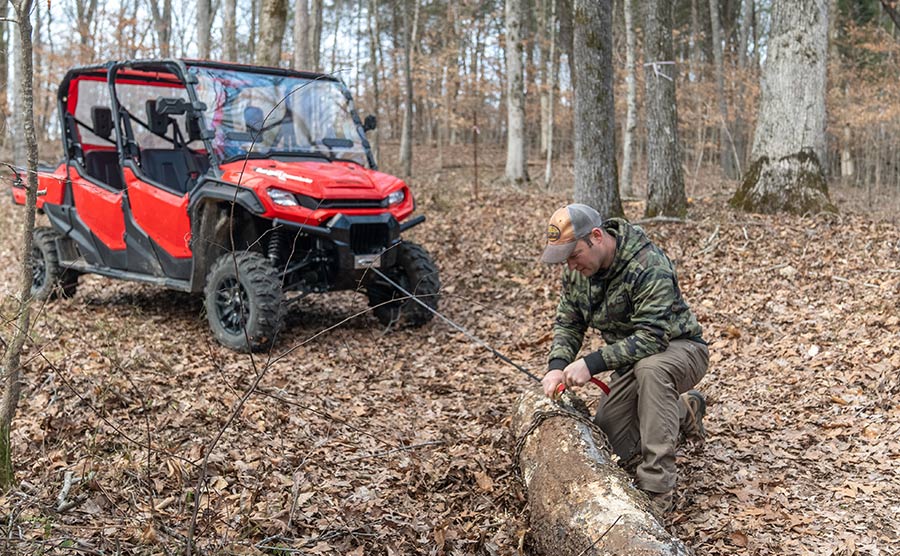

Whether you’re recovering a vehicle, pulling a boat, or handling any heavy-duty job, the Stealth Winch has everything you need. Offering unbeatable quality and value, the Stealth range offers you the best performance at an affordable price.

Rated Line Pull 3500 lbs
Motor Type 12V: Input: 3.2hp / 2.4 kW; Output: 1.3hp / 1.0 kW
Rated Volt 12v
Clutch Manual
Gearing 170:1
Gearing System Planetary
Braking Action Dynamic
Drum Size (Diameter x Length) 1.46 x 3.15 in
Controls ATV Handlebar Remote
Wireless Remote
Cable Material Synthetic
Cable Size (Diameter x Length) 0.20 in x 46 ft
Fairlead Hawse
Mounting Pattern 3.13 in (2-M8)

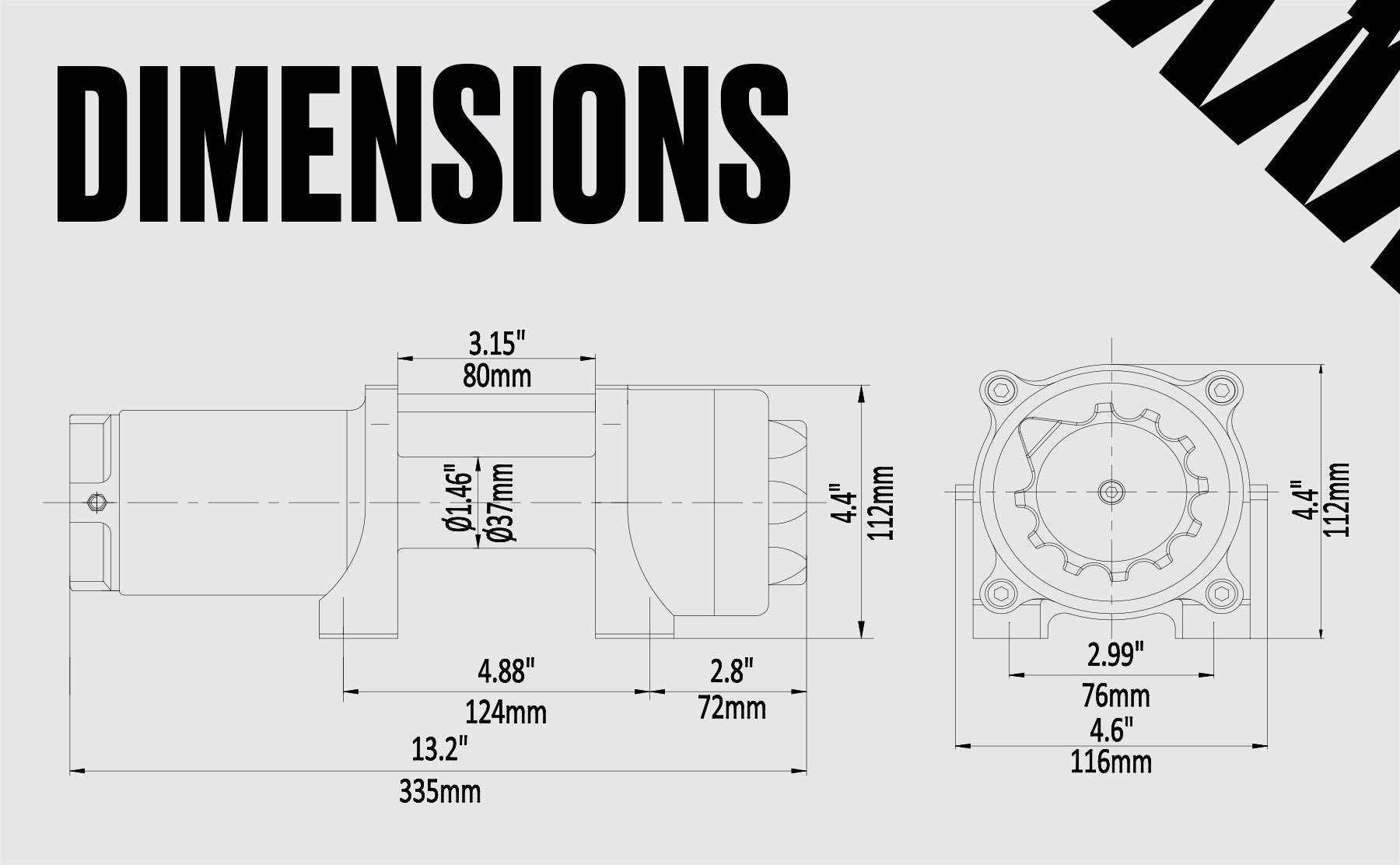

Dimensions (LWH) 13.70 x 4.57 x 6.50 in
Weight 19 lbs
Warranty 3 Year
Waterproof Rating (IP) 54
Certification CE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 3500 (1588) 5.9 (1.8)
2 2789 (1265) 13.5 (4.1)
3 2319 (1052) 22.0 (6.7)
4 1984 (900) 31.2 (9.5)
5 1733 (786) 42.0 (12.8)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 10.2 (3.1) 20
1000 (454) 8.9 (2.7) 75
2000 (907) 7.5 (2.3) 130
3500 (1588) 4.6 (1.4) 200

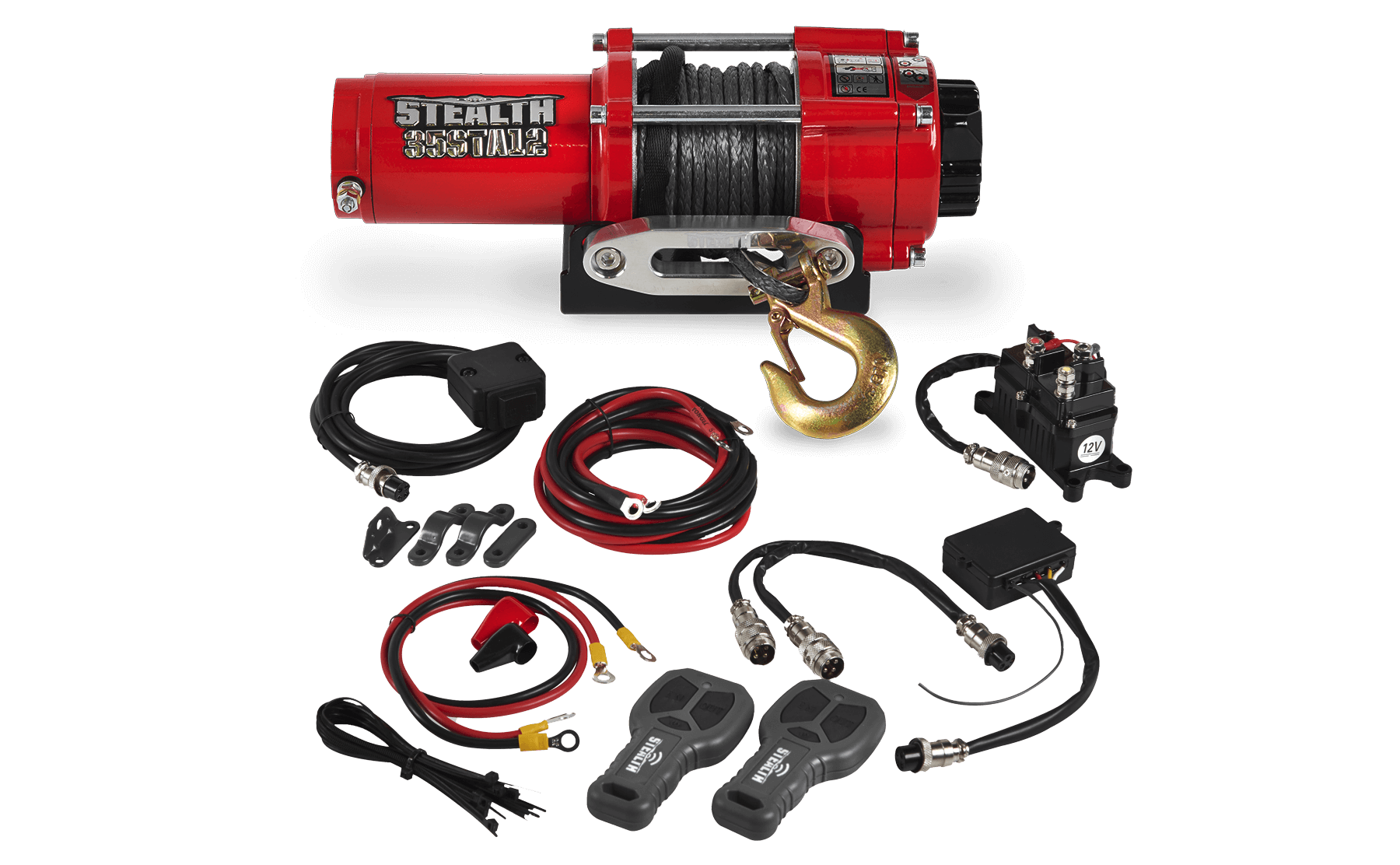

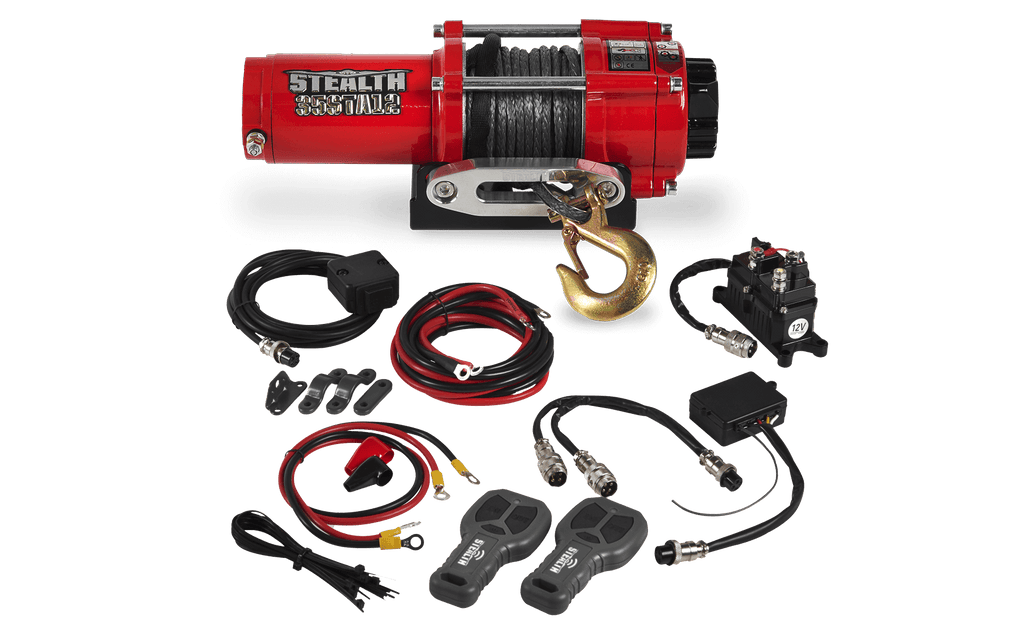

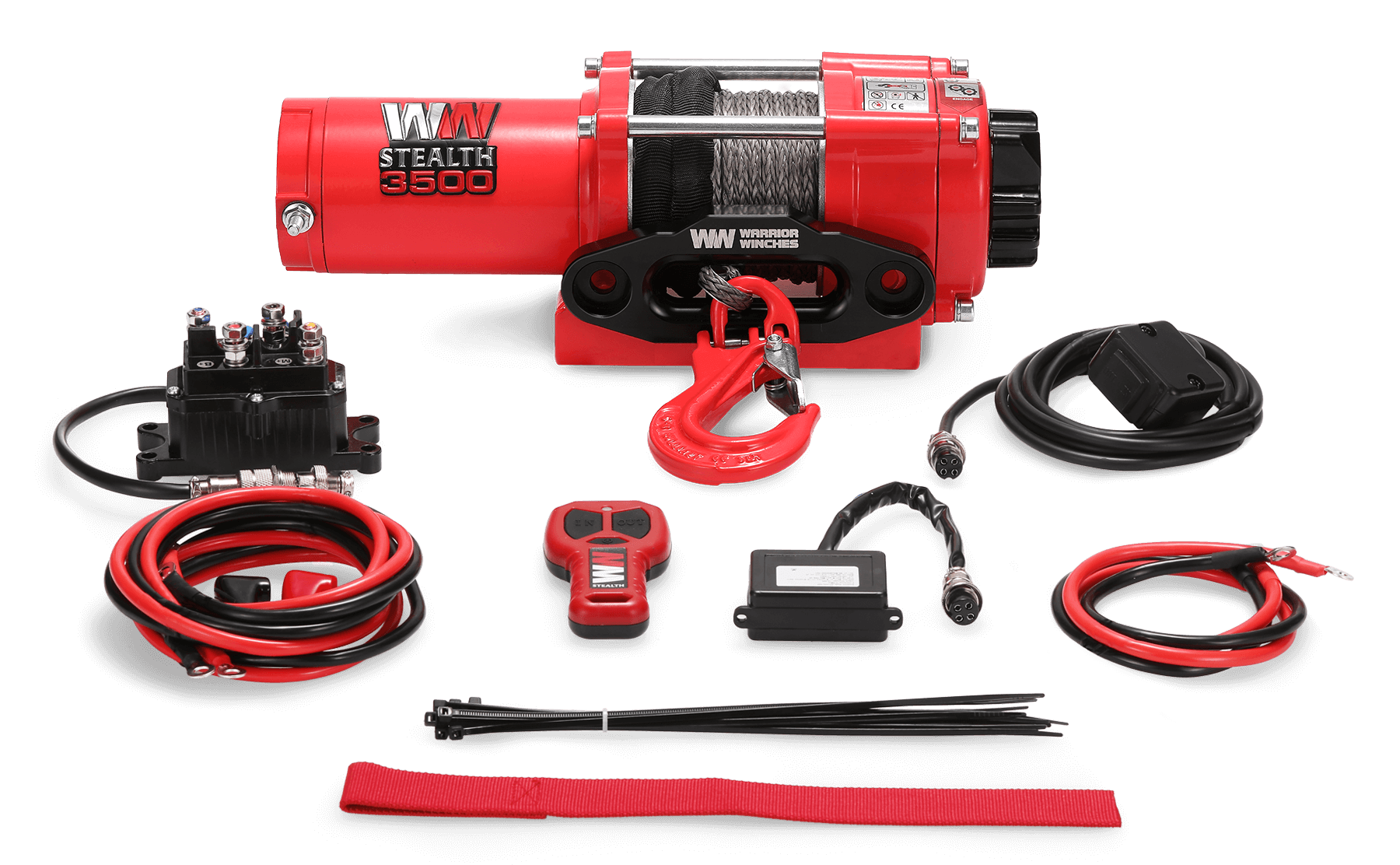

  • Stealth Winch
  • ATV Wired Hand Control
  • Wireless Control
  • 46ft (14m) Synthetic Rope
  • Mounting Plate: Included for flat mount applications
  • Fairlead: Hawse Fairlead
  • Heavy Duty Watertight Contactors: Included
  • Mounting Bolts: Included for Standard installations
  • Heavy Duty Battery Cables (May need extending dependant on application)
  • Instruction Manual
User Manual Download
Specifications Sheet  Download
