35STS12-CAD

Stealth 3,500lb 12v Electric Winch - ATV

Save $25.00
Sale price$109.99 Regular price$134.99
Delivery in 2-7 days

Features

  • Compact 3500lbs strength handles demanding pulling and recovery tasks.
  • 42ft x 0.21in durable steel cable featuring a clevis hook and handsaver strap for safety and ease of use.
  • Reversible 1.3hp 12v Permanent Magnet Motor Provides reliable power to both pull in and out, enhancing the efficiency and versatility of the winch.
  • Freespooling Clutch Gearbox Allows for manual unwinding of the cable, giving users more control over rope deployment during setup.
  • Versatile Accessories Includes a wired hand control, a wireless control, mounting plate, 4-way roller fairlead, and mounting bolts for easy installation and smooth operation.

The Stealth 3500lb winch gives you all the power in a smaller package, ideas for a broader range of uses such as utility, ATV, boat trailers and beyond.

Designed for long-lasting power, the hard-wearing designed is reinforced with a sealed solenoid, full steel gearing and features a powerful coper wound motor. Including two wireless remotes, the heavy-duty design is matched by smart additions to get the job done easily.

With a line capacity of 3500lb (1588kg), the line pull of 4.6ft per minute at full load will have the work done in no time.

Rated Line Pull 3500 lbs
Motor Type 12V: Input: 3.2hp / 2.4 kW; Output: 1.3hp / 1.0 kW
Rated Volt 12v
Clutch Manual
Gearing 170:1
Gearing System Planetary
Braking Action Dynamic
Drum Size (Diameter x Length) 1.46 x 3.15 in
Controls ATV Handlebar Remote
Wireless Remote
Cable Material Steel
Cable Size (Diameter x Length) 0.21 in x 42 ft
Fairlead Roller
Mounting Pattern 3.13 in (2-M8)

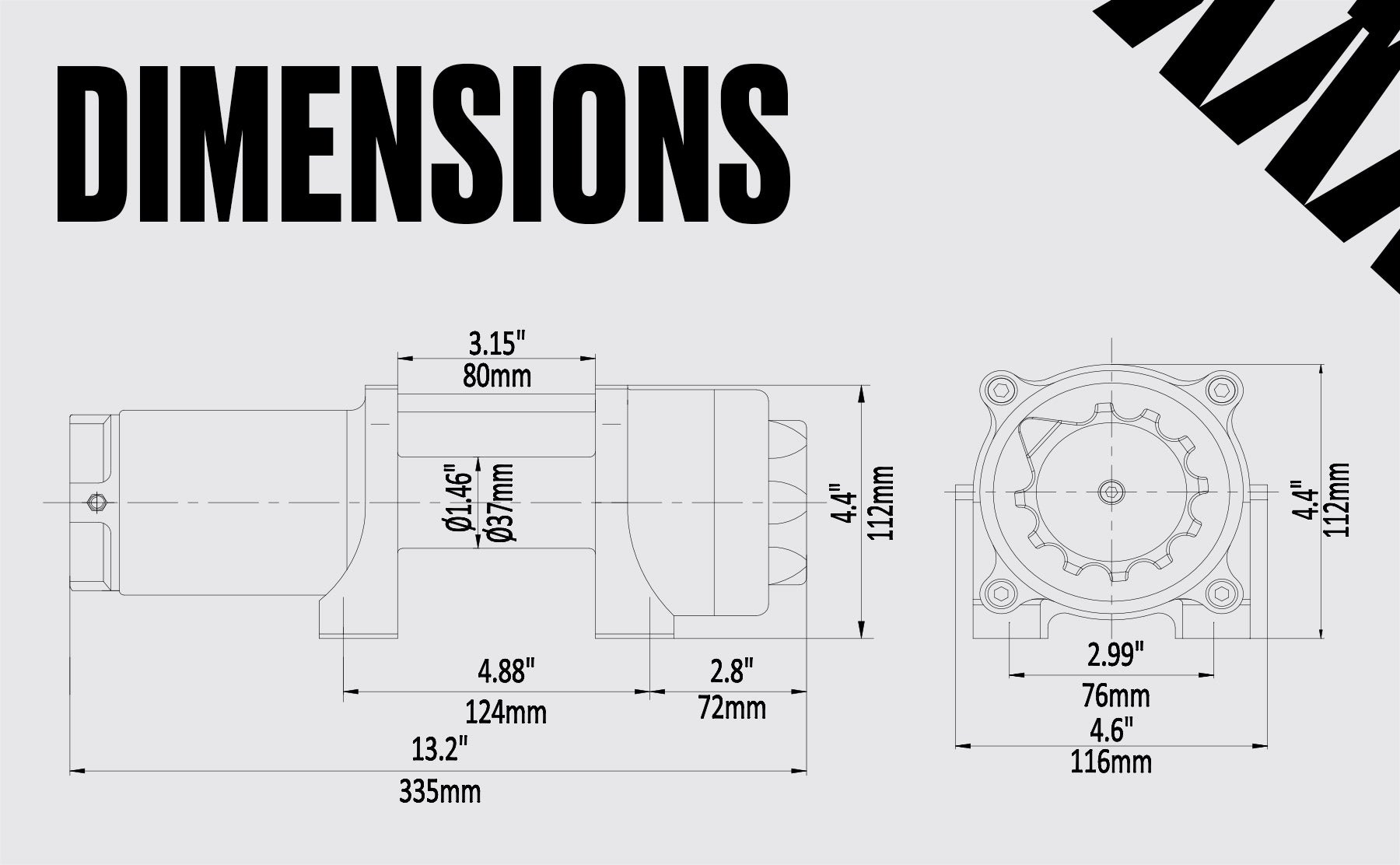

Dimensions (LWH) 13.70 x 4.57 x 6.50 in
Weight 23 lbs
Warranty 3 Year
Waterproof Rating (IP) 54
Certification CE



Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 10.2 (3.1) 20
3500 (1588) 4.6 (1.4) 200

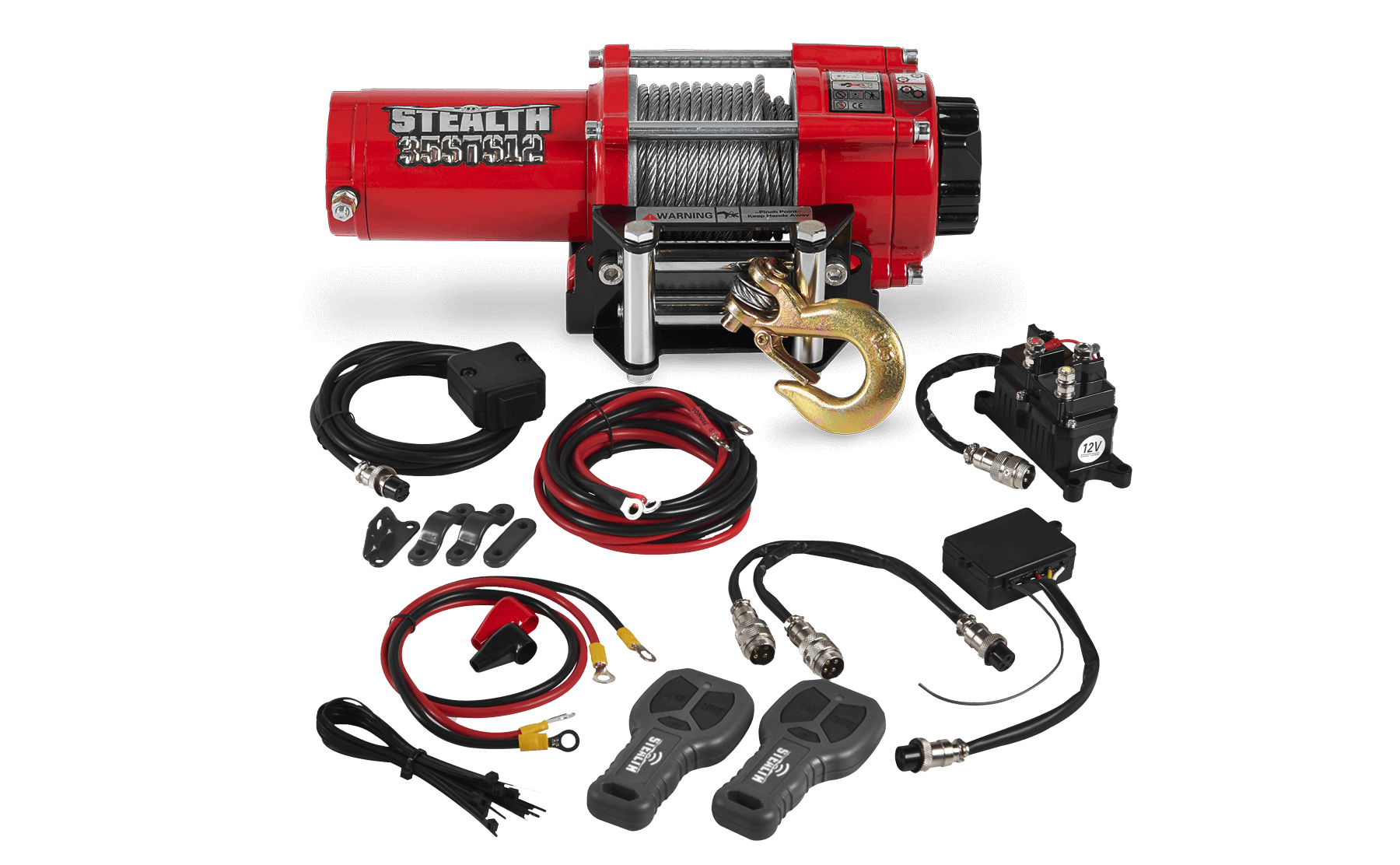

  • Stealth Winch
  • ATV Handlebar Remote
  • Wireless Control
  • 42ft (12.8m) Steel Rope
  • Mounting Plate: Included for flat mount applications
  • Fairlead: 4-Way Roller Fairlead
  • Heavy Duty Watertight Contactors: Included
  • Mounting Bolts: Included for Standard installations
  • Heavy Duty Battery Cables (May need extending dependent on application)
  • Instruction Manual
User Manual Download
Specifications Sheet ( 35STA12-CAD ) Download
Specifications Sheet ( 35STS12-CAD ) Download
